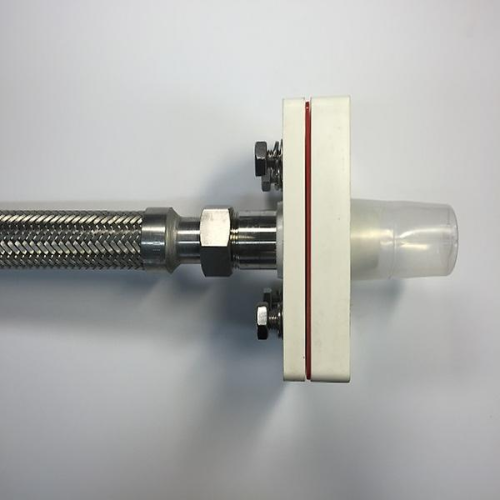

DUCTFLEX 32, SEUNG JIN Flexible Sprinkler Hose, is suitable only for providing a connection between water supply piping to an automatic sprinkler in Ducts. It offers the advantage of providing greater flexibility in the location of an automatic sprinkler than conventional rigid piping.

DUCTFLEX 32 provides a unique sprinkler drop assembly
comprised of the following components:

• Stainless Steel Corrugated Hose With Stainless Steel Wire Mesh(Braid)
• Welded(or Threaded) Stainless Steel Nipple with Male Thread at the Inlet
• Threaded Slip Nut for connection with Fume Duct Mount
• Specially Designed Fume Duct Mount with Head-Protecting
Plastic Cover and Polybag.

SJ : Sprinkler Joint
32 : Hose Nominal Diameter(Ø31.8)
B : Braided Type
T : Threaded Type
XXX : Length

Product Code : DUCTFLEX SJ32B-TXXX

Product : Flexible Sprinkler Hose With Fittings
Hose Diameter : 31.8mm
Max. Working Pressure : 175psi (Braided)
Max. Ambient Temperature : 225°F
End Connections : 1/2", 3/4" Outlet Reducer For Sprinkler(NPT/BSPT)
1" Inlet Nipple For Pipe(NPT/BSPT)
Material : Stainless Steel 304
