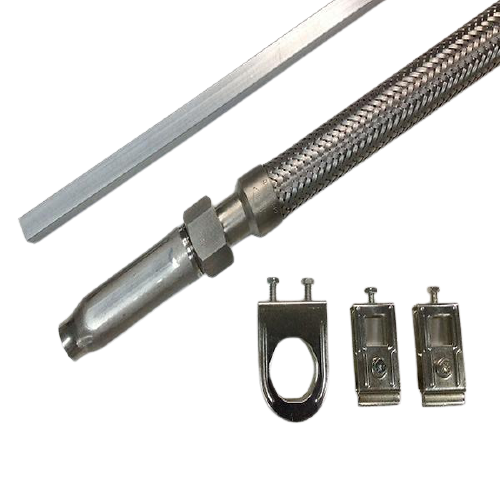

FLEXONE 32, SEUNG JIN Flexible Sprinkler Hose, is designed to be used in wet sprinkler systems between the branchline and sprinkler when installed in accordance with NFPA 13, 13D, and 13R.

FLEXONE 32 provides a unique sprinkler drop assembly comprised of the following components:

• Stainless Steel Flexible Hose with Two Slip Nuts
• Branchline Inlet Nipple
• Straight Sprinkler Reducer
• Reducer Bracket, Bar Fixing Clamps, and Support Bar


FLEXONE
SJ : Sprinkler Joint
32 : 32A(Ø31.8)
B : Braided Type
T : Threaded Type
W : Welded Type
BU : Bushing
AU : Aluminum Unit
XXXX : Hose Length

Product Code : FLEXONE SJ32B-TXXX / FLEXONE SJ32B-TXXX-BU
FLEXONE SJ32B-WXXX / FLEXONE SJ32B-WXXX-BU
FLEXONE SJ32B-WXXX-AU1 / FLEXONE SJ32B-WXXX-AU2

Product : Flexible Sprinkler Hose With Fittings
Hose Diameter : 31.8mm
Max. Working Pressure : 175psi (Braided)
Max. Ambient Temperature : 225°F
End Connections : 1/2”, 3/4” Outlet Reducer For Sprinkler(NPT/BSPT)
1” Inlet Nipple For Pipe(NPT/BSPT)
Material : Stainless Steel 304
