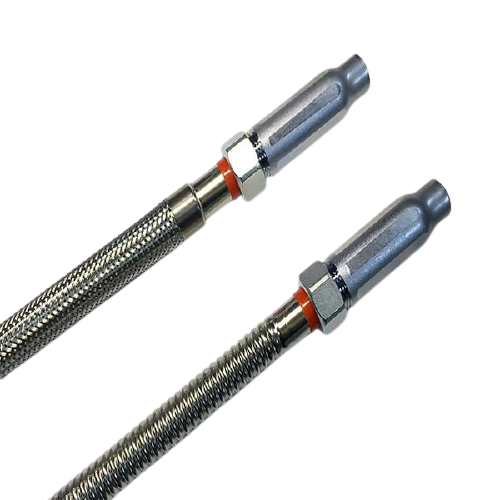

FLEXONE 25, SEUNG JIN Flexible Sprinkler Hose, is designed to be used in wet sprinkler systems between the branchline and sprinkler when installed in accordance with NFPA 13, 13D, and 13R.

FLEXONE 25 provides a unique sprinkler drop assembly comprised of the following components:

• Stainless Steel Flexible Hose with Two Slip Nuts
• Branchline Inlet Nipple
• Straight Sprinkler Reducer
• Reducer Bracket, Bar Fixing Clamps, and Support Bar

Product Code : FLEXONE SJ25N-TXXX / FLEXONE SJ25B-TXXX
FLEXONE SJ25N-WXXX / FLEXONE SJ25B-WXXX

SJ : Sprinkler Joint
25 : Hose Nominal Diameter(Ø24.8)
N / B : N - Unbraided Type / B - Braided Type
T / W : T - Threaded Type / W - Welded Type
XXX : Length


Product : Flexible Sprinkler Hose With Fittings
Hose Diameter : 24.8mm
Max. Working Pressure : 200psi
Max. Ambient Temperature : 225°F
End Connections : 1/2”, 3/4” Outlet Reducer For Sprinkler(NPT/BSPT)
1” Inlet Nipple For Pipe(NPT/BSPT)
Material : Stainless Steel 304
