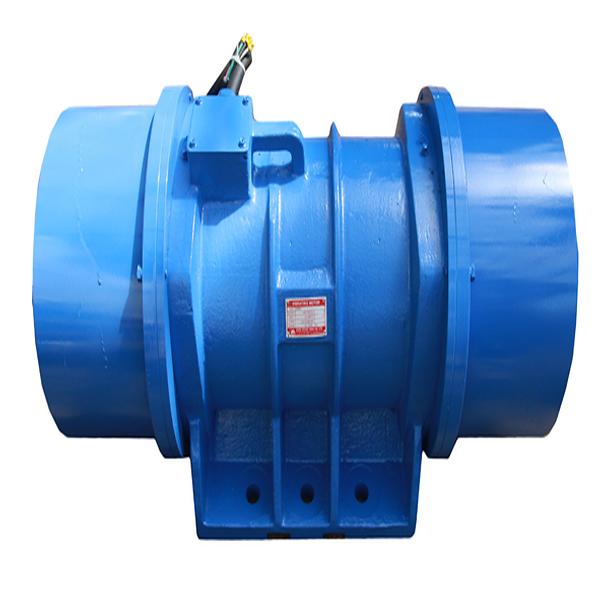

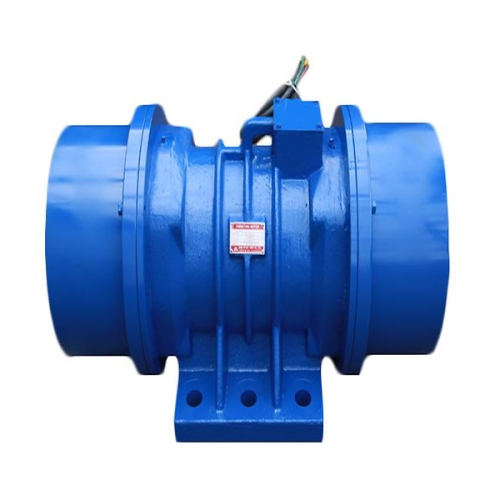

Strong Material FCD45 Rotary Vibrator – Blue Color

This heavy-duty rotary vibrator is engineered with FCD45 special cast iron for enhanced strength and durability. Designed for universal compatibility, it offers high efficiency, reliable performance, and a long service life even under demanding industrial conditions.

• Universal Compatibility: Designed with a mounting hole structure that fits products from various manufacturers, allowing for easy replacement and installation across multiple systems.

• Highly Durable Structure: Built with special FCD45 cast iron and precision-processed components, the frame resists powerful vibrations and delivers long-term performance.

• Water and Dust Protection: Built to KS C4201 IP54 standards, the vibrator includes packing rings and a waterproof bearing cover to prevent water or dust intrusion into the motor.

• Extended Lifespan: Equipped with high-quality insulation varnish, vibration-resistant bearings, and easy-access grease ports to ensure long-lasting, reliable operation even in high-temperature environments.

• High Efficiency Output: Uses premium enameled copper wire and electrical steel sheets to exceed the KS C4202 efficiency standards, ensuring stable and powerful performance.

      * Characteristics

1. A variety of types and interchangeability

   : This equipment is constituted with a variety of types such as 0.03~13kw of output, 3600~750 rpm of revolutions, 220v / 380v / 440v of voltage, and so forth, and it can be installed to any other types as a replacement because the structure of its foot is designed in such a way that the attaching hole can be fitted into each of the other manufacturers’ products.

2. Rigid structure

   : Frame is manufactured with special cast iron, and each part is precisely processed and assembled so that it can sufficiently withstand against powerful vibration.

    This product is manufactured with the structure of KS C4201 IP 54 by inserting the packing ring into the frame and bracket and installing the waterproofing cover at inside the bearing so that water or dust will not be entered inside the motor.

3. Extended life span and definite reliability

   : Insulation is reinforced with high quality varnish for the coil at the motor inside so that it can withstand the surrounding high temperature, and special bearing for vibration is used, and grease injection and discharging port are installed for all types so that the grease for bearing can be exchanged.

4. Powerful output and high efficiency

   : The efficiency higher than the designated value of KS C4202 is maintained by utilizing high quality enameled copper wire and electric steel sheet.

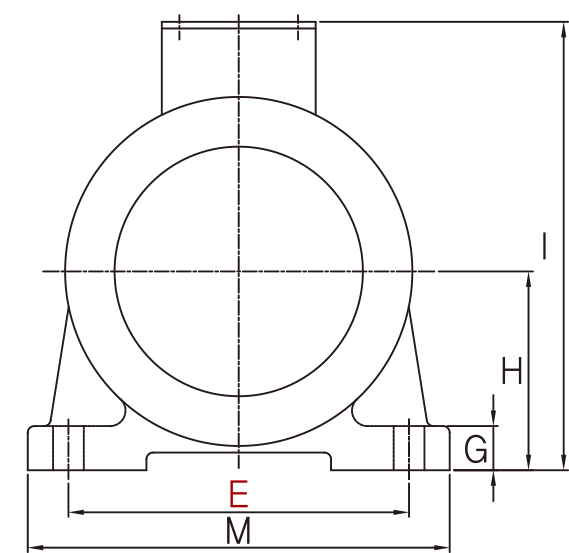

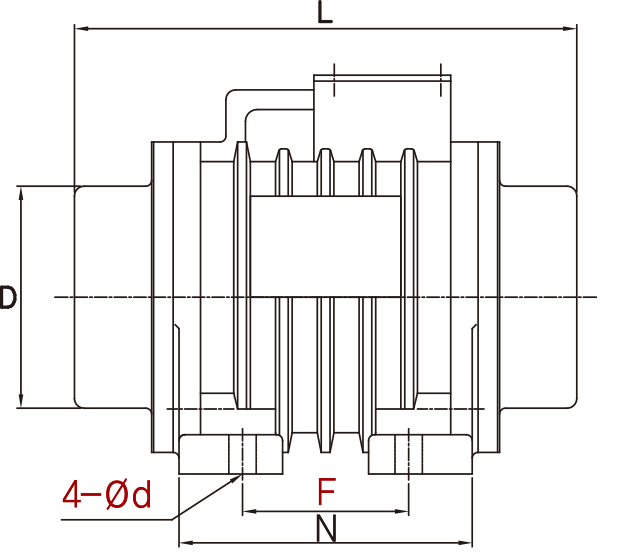

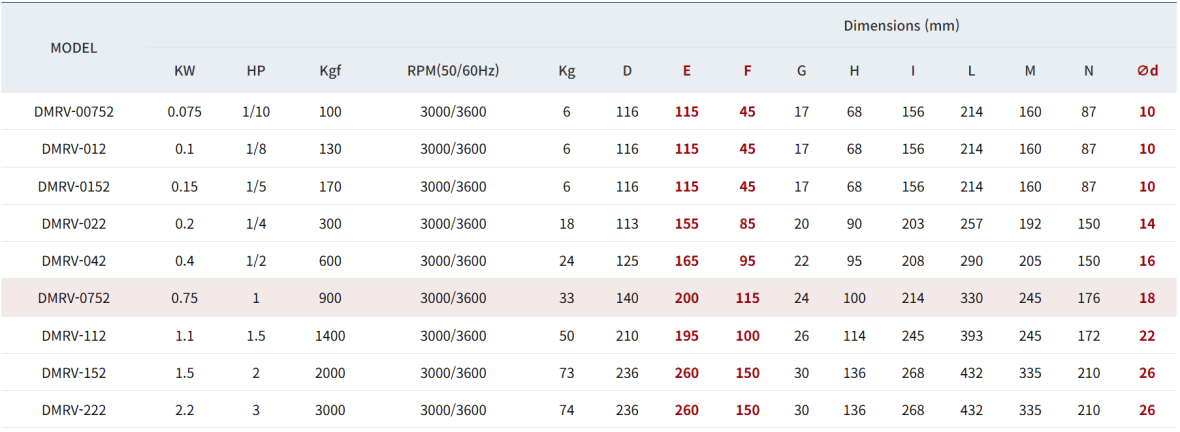

*SPEC (Specifications are subject to change without prior notice for product improvements.)
