Introduction

This system innovatively enhances the dissolving of oxygen using minimum power.

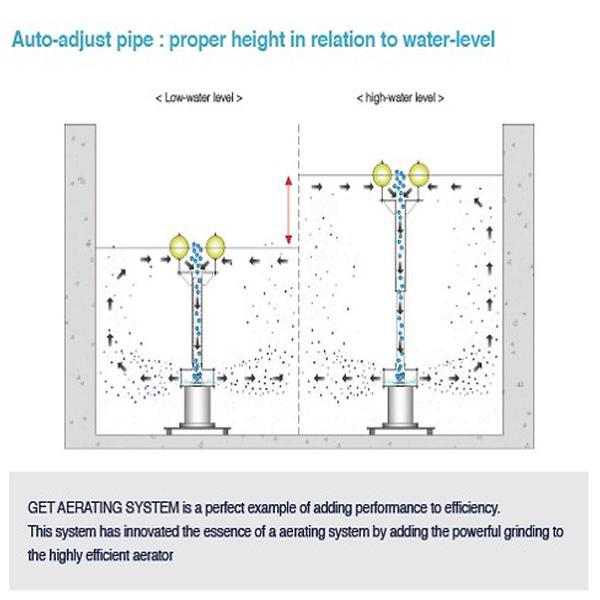

Power is only needed to circulate the upper layer and lower layer water.

Then the circulating water sucks in air from the water surface to the impeller and the impeller agitates “water-air” inside the water.

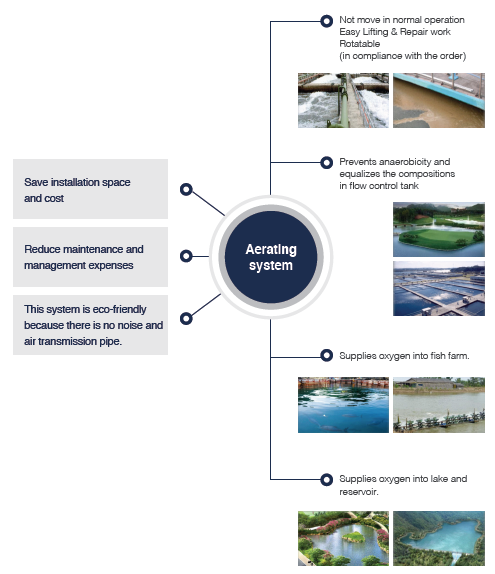

Advantages and applications

Features

1. There is no noise because it is installed underwater.

2. It is safe and has a good appearance due to the absence of an air transmission pipe.

3. It is easy to maintain and you can reduce installation space and cost because the structure is very simple.

4. The surface of air bubbles increases and the air-water interface is destructed by the impeller impact and this leads to the increase of dissolved oxygen.

5. Odor disappears because dead zones are eradicated due to water circulation.

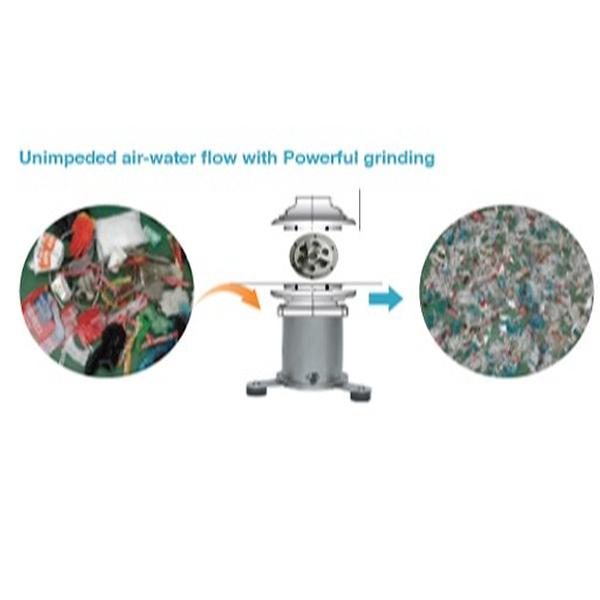

6. Compositions are equivalent within the water because the system sucks suspended solids and these are grounded/mixed by the impeller.

7. Pollutants in the water and micro-organisms have more chances to make contact with each other through circulation and mixing.

Standard Specification
