[ Specification ]

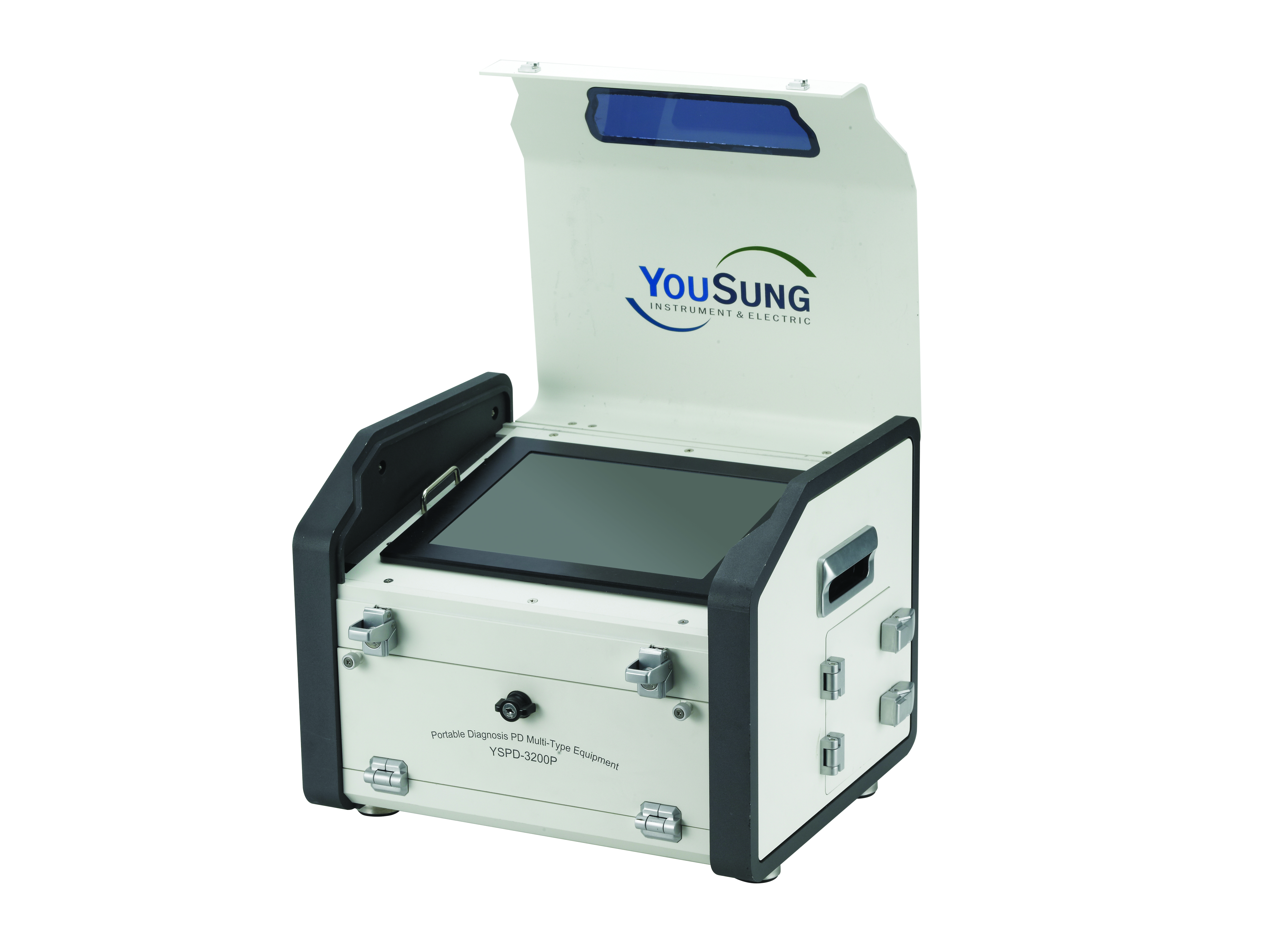

The product can figure out the accurate faulty location of the caused PD using by UHF sensor and AE sensor to

check out the current status of the Main Transformer and GIS to enhance the stability of the Electric Power Supply.

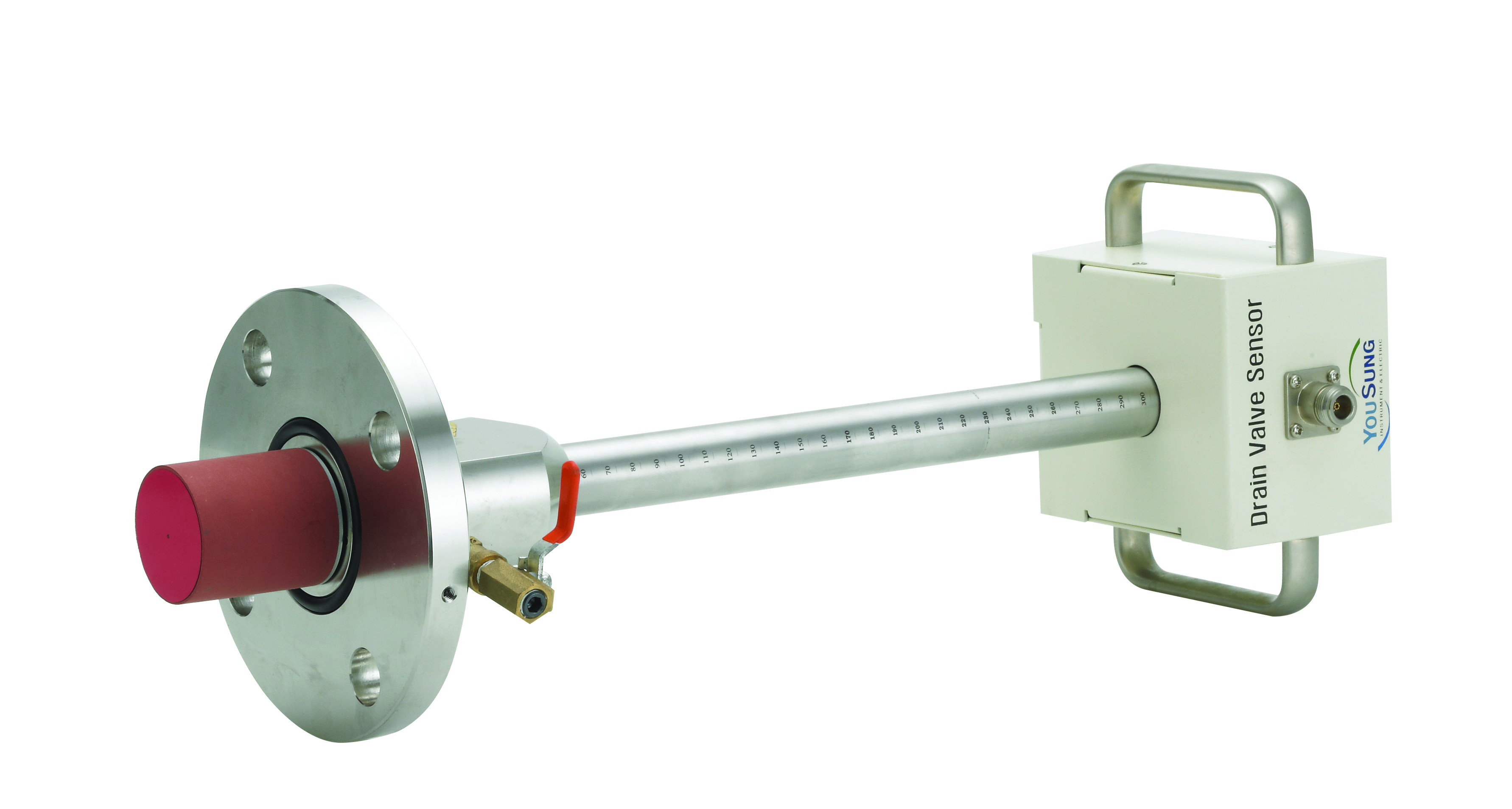

1) UHF sensor which is an insertion type of Oil drain valve of the Main Transformer

2) Adopt AE sensor to localize PD point

3) Function to save the running PD sampling data

4) Neural network self-knowledge algorithm

5) High cost-savings and Easy operation

[ Company Introduction ]

Since its establishment in 1989,  YOUSUNG INSTRUMENT & ELECTRIC has been manufacturing Protective relay, Substation Automation System, Semiconductor Solid Control relay, Condition monitoring system, and Various high-quality protection panels in Korea and doing business with KEPCO (Korea Electric Power Corporation) as a Trusted Partner.

We are also involved in overseas marketing in several countries. Specially DC ground monitoring system for Substation and Power plants, Semiconductor Solid Control Relay for Feeder protection GIS, Interlock Module Device for Interlock panel of CB and Tap Position Indicator for OLTC is used widely and very successful.
