Provide total solution of surge protection. Anti-surge of Coaxial.

Each special type products are fomulated.

 - CE Certification

 - Capacity total 50 kA

 - LCD Surge counter

 - Aluminium case

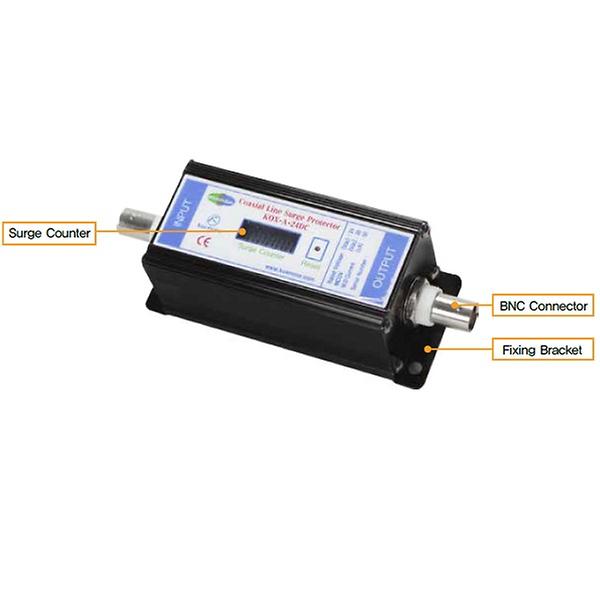

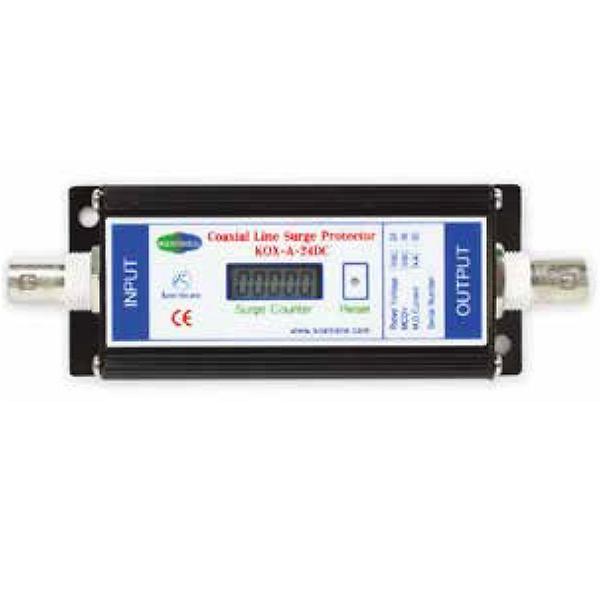

Model : KOX-A-24DC

Size : (W) 42 x (L) 118 x (H) 30 mm

Voltage : DC 24V, 5V

Capacity : 50kA - total /25kA mode

Origin : South Korea

Payments terms : T/T

Delivery terms : FCA South Korea (negotiable)

Application

   - Coaxial : CCTV/DVR Video Line, Ultrasonic Flowmeter Linem Wireless Antenna etc

[FEATURES]

CE Certificates, Patent

Performance in compliance with IEC 61643-21

[6kV / 3kA(Voltage 1.2/50㎲, Current 8/20㎲) within 100V when applied ]

High surge capacity - 50kA in total - te highest in the world

LCD surge counter [10-year battery life]

Reverse surge protection - the first in the world

BNC connector

Aluminium case
