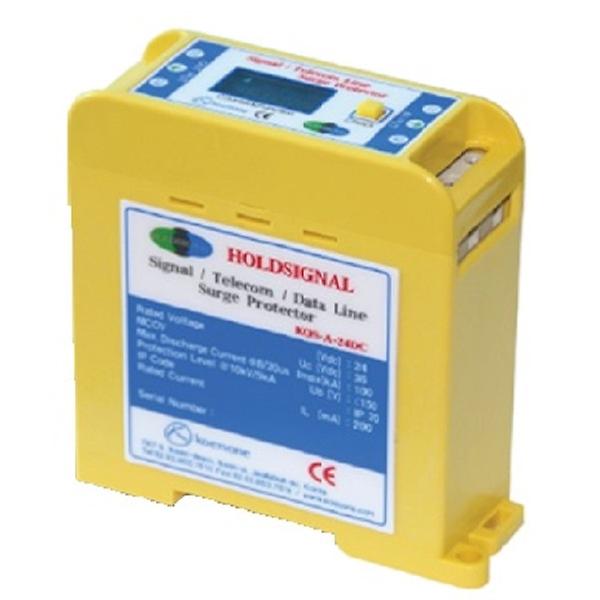

Model : SURGE PROTECTOR SIGNAL/TELECOM LINE

Size : (W) 32 x (L) 96 x (H) 95mm

Type : 2wire, 3wire, 4wire Serial

Voltage : DC185V, 48V, 24V, 12V, 5V

Capaity : 100kA(2 wire/total), 150kA(3 wire/total), 200kA(4 wire/total)

Origin : South Korea

Payments terms : T/T

Delivery terms : FCA south Korea (negotiable)

Application

   2wire:2~40mA Analog signal line, RS 485, Fnet telecom line, Load cell, Data line,

           ADSL modem, PC LAN etc

   3wire:RTD(Resistance Temporature Detector), RS232 etc

   4wire:RS422, RS432, Dedicated Line Modem etc

[FEATURES]

CE Certificate, patent

Performance in compliance with IEC 61643-21

[20kV/10kA(Voltage1.2/50㎲, Current 8/20㎲) within 150V~300V when applied]

High surge capacity - 200kA/150kA/100kA in total - the highest in the world

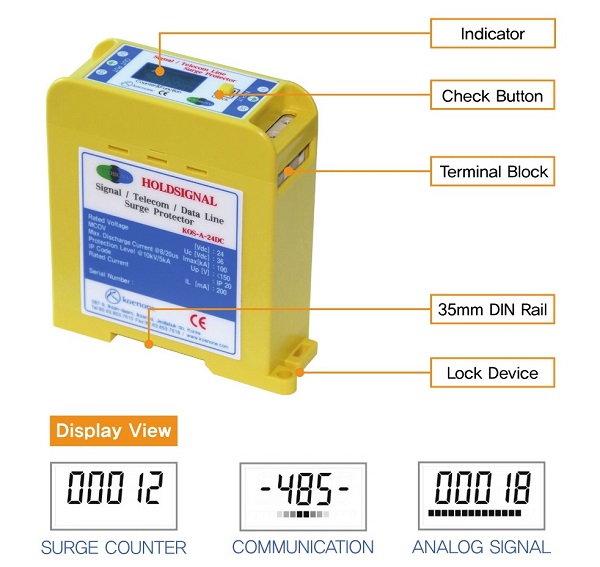

Indicator function - the first in the world.

   [surge counter, analog signal detection, telecom state detection]

10-year battery life/replaceable battery

Quadruple hybrid design - the first in the world

Reverse surge protection - the first in the world

Fastening by DIN-Rail or Bolt

Flame Retardant ABS Case and epoxy molding for fire protection
