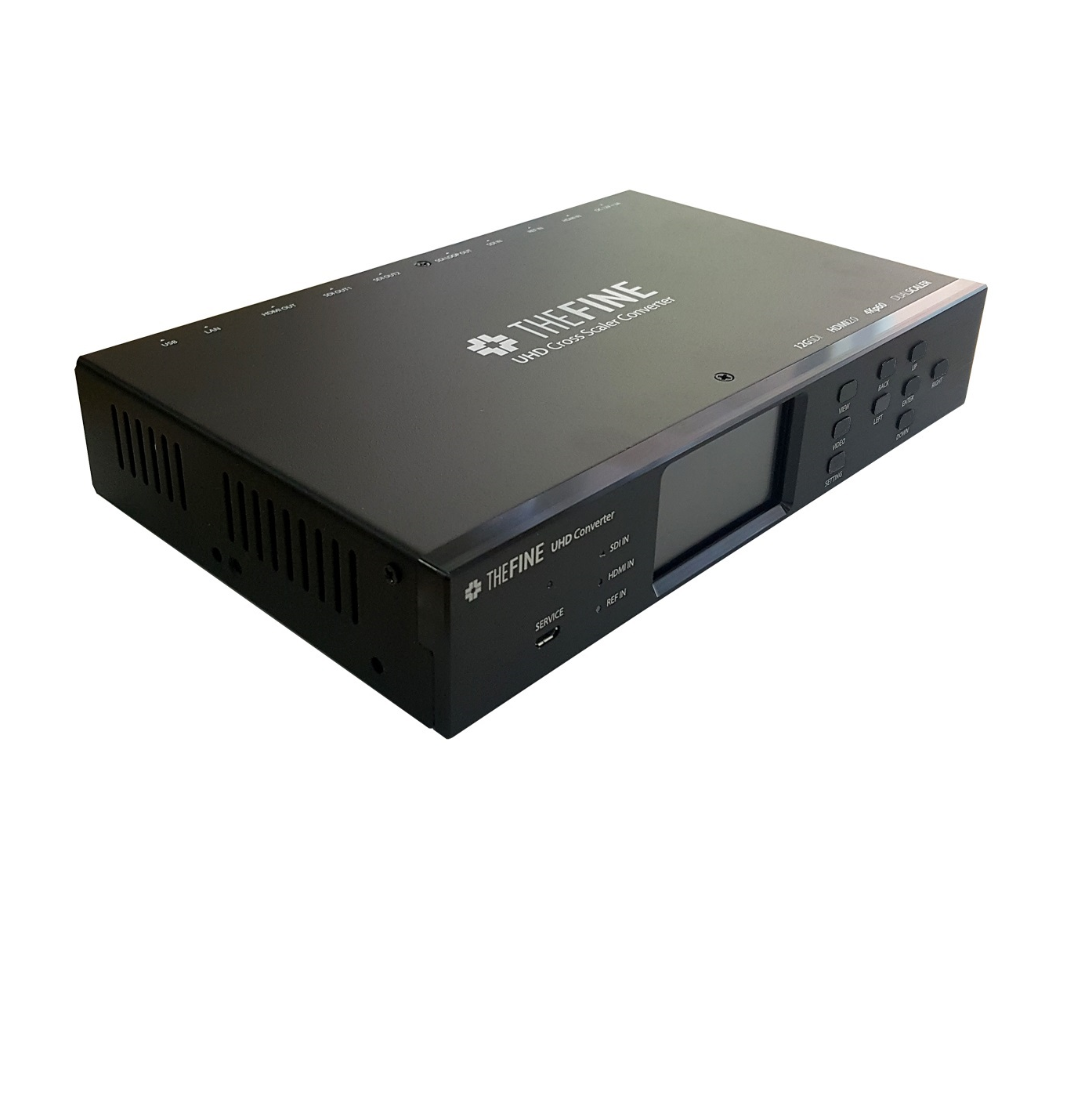

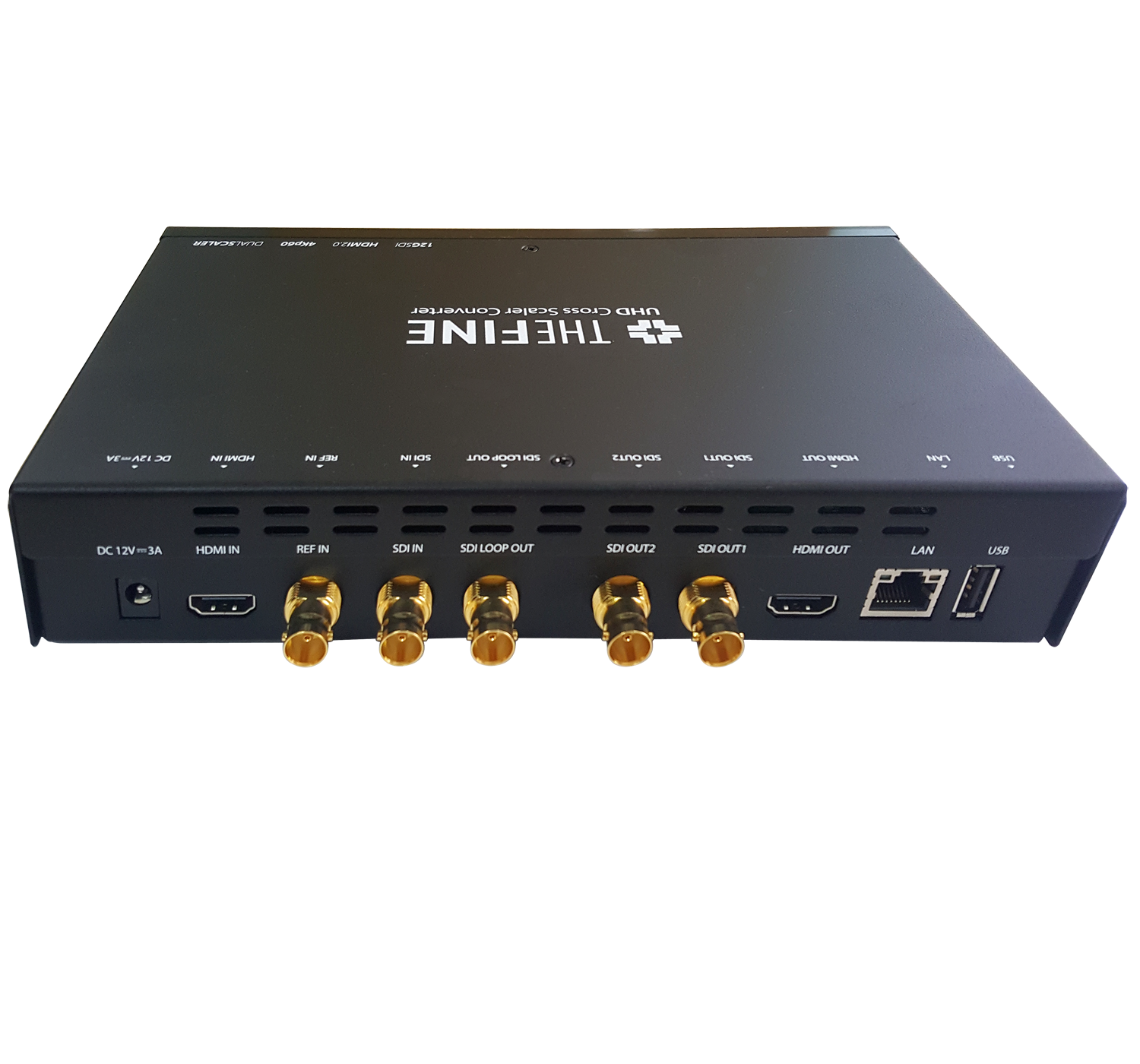

1. TFC-21CC

: TFC-21CC : THEFINE's UHD Signal converter allows you to convert HDMI to SDI or SDI to HDMI independently.

2. Features (기능 설명)

① 12G SDI Input & Output & HDMI2.0 Input & Output

② Cross Conversion

SDI to HDMI / SDI

- SDI signals can be converted to HDMI and SDI signals.

- Input SDI signals can be up or downscaled to outputs.

- Output resolutions for HDMI and SDI can be set independently.

HDMI to HDMI / SDI

- HDMI signals can be converted to HDMI and SDI signals.

- Input HDMI signals can be up or downscaled to outputs.

- Output resolutions for HDMI and SDI can be set independently.

SDI & HDMI to SDI & HDMI (Bypass)

- This mode works as a two separate scaler. - HDMI input signal can be up or downscaled to HDMI output.

- SDI input signal can be up or downscaled to SDI output.

- SDI and HDMI paths are working independently.

SDI & HDMI to SDI & HDMI (Cross out)

- This mode works as a two separate scaler. Signal paths are crossed.

- HDMI input signal can be up or downscaled to SDI output.

- SDI input signal can be up or downscaled to HDMI output.

- Two separate video paths are working independently.

③ LCD Preview & Touch Control

- Monitor inputs and outputs

- Graphic User Interface and Touch Control

④ Built-in Web Server

- You can control and monitor inputs and outputs settings by accessing the webserver.

- Firmware update available.
