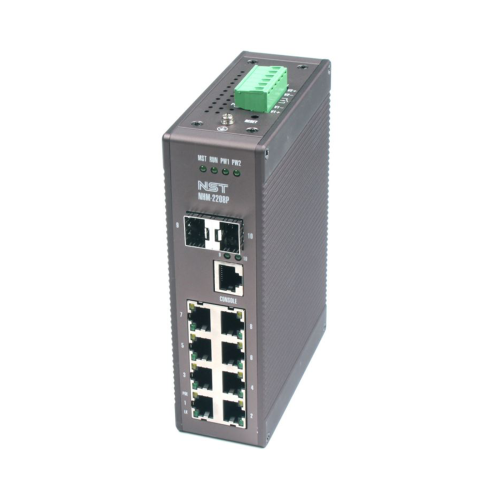

NHM-2208P is an Industrial PoE Switch that performs under harsh environments with 8-Port 10/100/1000Base-T complying with IEEE 802.3af/at PoE standard.

With less than 20msec recovery time through ERPS standard, NHM-2208P provides a wide range of industrial Fast Ring

network solutions for transportation, SmartCity, and where it demands robust data communication.

Our Industrial Switches are designed for use in harsh environments and to build a reliable and secure network

in a cost-effective manner.

[Specification]

• Operating Temp: -40°C ~ +80°C
• Dimensions: 44(W) x 146(H) x 115(D) mm
• High-speed Non-blocking switching mechanism
• 2-slots 1Gbps or 2.5Gbps SFP, 8-ports 10/100/1000Base-TX
• 8 PoE ports with IEEE 802.3af/at PoE
• 8,192 X MAC Address Table
• 4,096 X VLAN (IEEE 802.1Q)
• MAC, Protocol, IP Subnet based VLAN
• GVRP, MRP, MVRP, MMRP
• STP, RSTP, MSTP
• G.8032 ERPS(Ethernet Ring Protection Switching)
• IGMPv2, IGMPv3 Snooping
• DHCP Server, Client. DHCP Relay
• Traffic Classes Max. 8pcs. of Queue, Port Priority
• Unicast, Multicast, Broadcast Storm Control
• Port/Queue Shaping
• DiffServ, Tag Remarking
• IEEE 802.1X, ACL, Radius and TACACS+ security function
• IEEE 1588 Precision Time Protocol and OAM function, etc.
• IEEE 802.1ab LLDP(Link Layer Discovery Protocol)
• CLI, Telnet, SNMPv1/v2c/v3, and Web-based Management
• DIN Rail or Panel Mount
• Redundant Power supply with reverse polarity protection
