Compact Hydraulic Motor Pump for Dental Chairs Operating Tables and ENT Chairs
Compact hydraulic motor pumps for dental unit chairs, operating tables, examination tables, gynecological examination tables, shampoo chairs, CT scanners, etc.
This is a hydraulic pump used in hydraulic dental unit chairs. The product has been stabilized to the extent that it is used by most major domestic companies,
It is a hydraulic pump made with specialized jigs and an automated system. All products undergo a complete inspection through a dedicated testing machine, and the defect rate is less than 1%.
- Certification
-
- Award
-
- Shipping
-
- Lead Time1 ~ 30days
- Modes of Transport CIF,EXW,FOB
- Products Shipped From Busan
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Pieces
Product Summary
2. Full inspection through specialized testing machines
3. Long-lasting lifespan (up to more than 10 years)
4. No leakage
5. Strict defect rate management (less than 1%)
Detailed Description

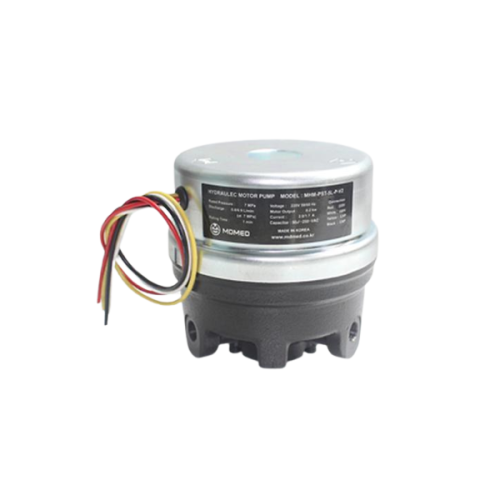

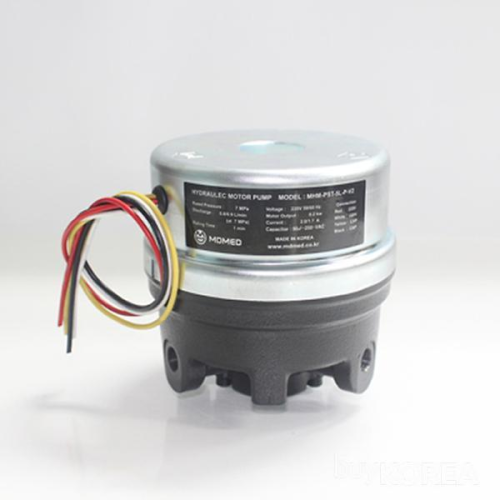

The MHM series are compact and quiet hydraulic motor pump about 40's dB. These series can be applicable to variety fields including hydraulic operated chairs such as dental chair, operating table, CT scanner, examination table, gynecological examination and lift.

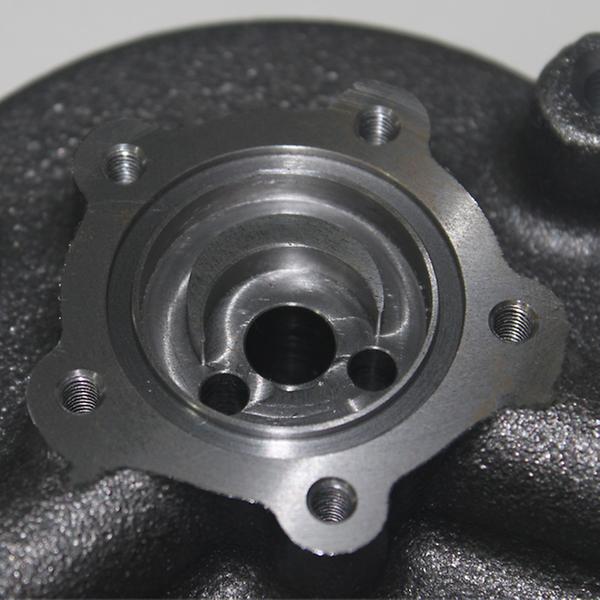

MDMED hydraulic motor pump which is in a crescent integral seal type minimized flow losses and get rid of crescent seal failure rates caused by break-off with precise structure and stable hydraulic pressure.

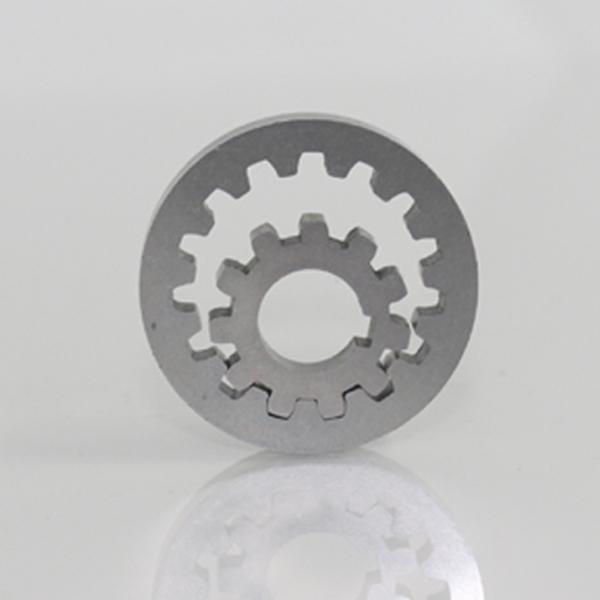

Precision gear grinding prevented secondary flow loss and establishment of test system enabled customers to use stabilized quality product.
*Product Deion (220V)
|
Deion / Gear size |
5L |
8L |
10L |
|---|---|---|---|
|
Rated pressure |
7MPa |
7MPa |
7MPa |
|
Discharge rate (7MPa) |
0.8~0.9L/min |
1.1~1.3L/min |
1.4~1.7L/min |
|
Voltage |
110V/220V, 50/60Hz |
110V/220V, 50/60Hz |
110V/220V, 50/60Hz |
|
Motor output |
0.2kw |
0.2kw |
0.2kw |
|
Current |
2.0/1.8A |
2.0/1.7A |
2.0/1.7A |
|
Capacitor |
14μF-450VAC |
50μF-250-VAC |
50μF-250-VAC |
|
Size |
Ø128*128cm |
Ø128*128cm |
Ø128*128cm |
|
Weight |
5kg |
5kg |
5kg |
