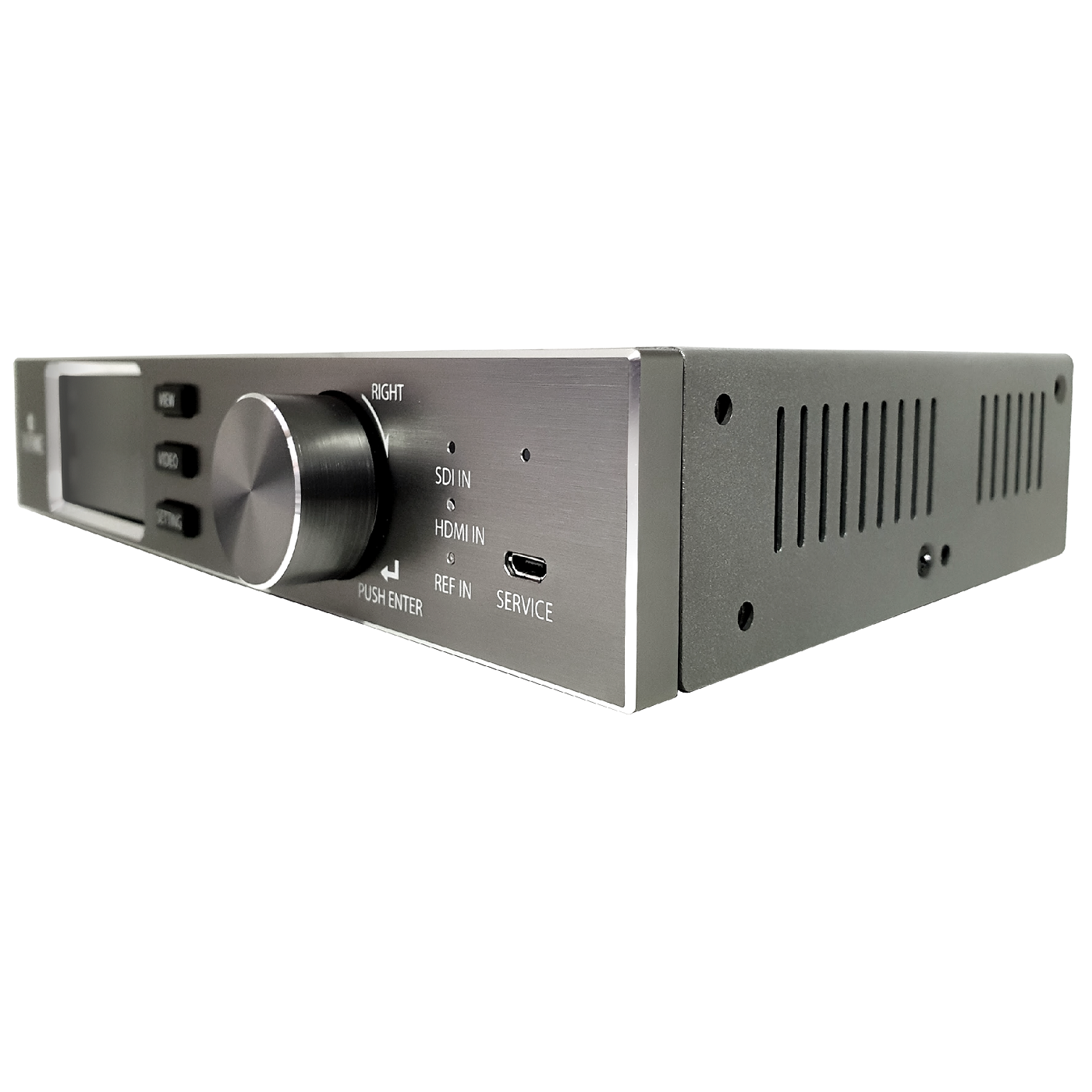

[THEFINE Converter: TFC-21Q3] UHD Scaling Cross Converter

 - UHD Signal converter allows you to convert 12G or Quad 3G SDI to/from HDMI 2.0a/b

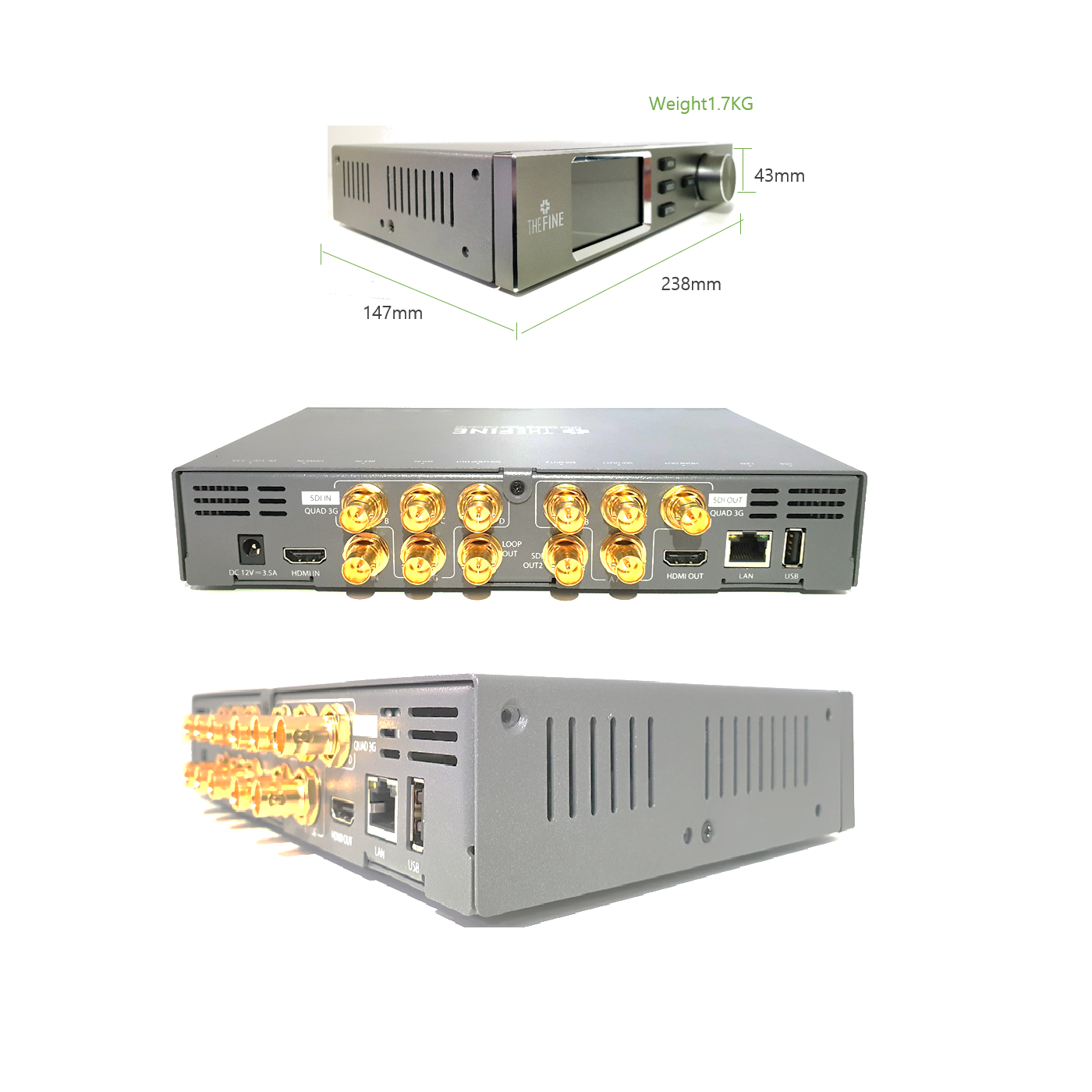

 - 12G and Quad 3G SDI Input and output
 - HDMI 2.0a/b Input & Output
 - UHD Conversion Supported
 - USB firmware update supported

12G SDI Input / Output
Support HD, 3G Level A/B, 6G, 12G

Switch Operation Mode

SDI signal can be converted to HDMI and SDI signals.
Input SDI signals can be up or down scaled to outputs.
Output resolutions for HDMI and SDI can be set independently.

HDMI signal can be converted to HDMI and SDI signals.
Input HDMI signals can be up or down scaled to outputs.
Output resolutions for HDMI and SDI can be set independently.

Matrix Operation Mode

This mode works as a two separate scaler.
HDMI input signal can be up or down scaled to HDMI output.
SDI input signal can be up or down scaled to SDI output. SDI and HDMI paths are working independently.

This mode works as a two separate scaler. Signal paths are crossed.
HDMI input signal can be up or down scaled to SDI output.
SDI input signal can be up or down scaled to HDMI output. Two separate video paths are working independently.

Input Mode (Auto detection Quad-3G)

Quad 3G SDI signal will be activated automatically if SDI input A,B,C and D are connected.

Loop Out is also activated automatically .
  - SDI Input A >> Loop Out
  - SDI Input B >> SDI Output B
  - SDI Input C >> SDI Output C
  - SDI Input D >> SDI Output D

Output Mode

Quad 3G Output Mode

This mode works as a splitter for Quad 3G.
It can support 2 sets of Quad 3G SDI output.
To Quad 3G output, it has to be selected between the resolutions - 2160p60QL, 2160p59.94QL and 2160p50QL.
Other resolutions will be activated as single SDI.
It can support 2 x Quad 3G SDI outputs.

Single SDI Splitter Mode

This mode works as a splitter for 12G and 3G output.
It can support 2 x 12G SDI (7, 8 port) and 6 x 3G SDI (1 ~ 6 port) output
For example, if the input source is 1080p60, it will output 8 x 3G SDI.
But if the input source is 2160p60, then it will output only 7 and 8 port.
