[HIFLUX] High Pressure Relief Valve - Factory Set 3000psi 60000psi

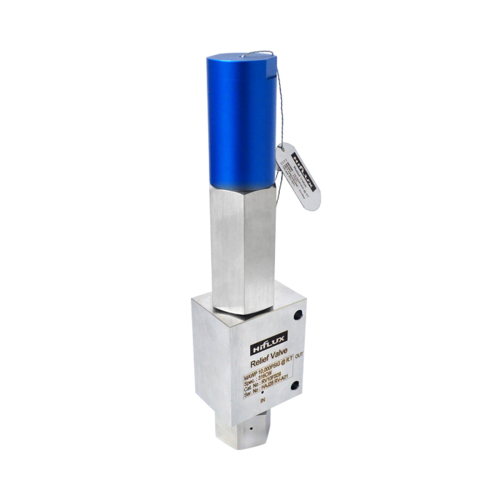

[HIFLUX] High Pressure Relief Valve - Factory Set


It vents the pressure when the pressure exceeds the set threshold and protects the pressure, the system, and equipment with venting. It holds a lower pressure than setting pressure after venting.



FEATURES

- Pressure range : 3,000psi ~ 60,000psi
- Setting pressure error range : ± 8%
- Inlet port : H6009 ( Orifice size : ∮ 6.4 )
- Outlet port : 1/2" NPT
- Standard Material : Steel Use Stainless
- O-ring material on piston : Viton
- Max operating temperature : 170℃
- Metal to metal seating type to lengthen the life of the seat.
- The pipe connections available in various sizes and pressure specifications, using an adapter.
- Supply with set pressure (Customer requirement) with sealing tag.
  (Note, A/S is not available if the sealing tag is defected or removed)

- As all sizes are for reference, they can be changed without any notification.
- Please contact us for details or send an online inquiry, we will give you a response as soon as possible.



 * HIFLUX High Pressure Products

	High pressure needle valve			High pressure pipe needle valve
	High pressure check valve			High pressure ball valve
	High temperature valve			High pressure control valve
	Air operated valve			High pressure tube fitting
	High pressure tube			High pressure nipple
	Low pressure tube			High pressure gauge
	High pressure regulator			Back pressure regulator
	High pressure union adapter			General pressure regulator
	High pressure adapter			High pressure male adapter
	Tube support
	Safety Head			Rupture disc
	Tooling Set-Coning tool			Tooling Set-Reseating tool
	Tooling Set-Threading tool			Lok Type Fitting
	Lok Type Valve

* Ordering option

- As our products are divided into pressures of 5,500~150,000psi, body type and port size, you can use them according to the specifications which you want to use.
- Our products generally are produced with STS materials, but they can be manufactured with other materials on demand so that various fluids and gases can be used.
- Please inquire with us about special materials apart from the above-mentioned materials, such as STS316, HC-276, INC600, INC700, Ti and Ni.
