Access Control Terminal

Detailed Description

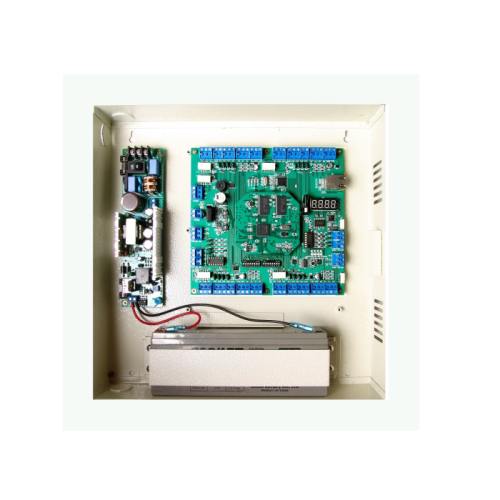

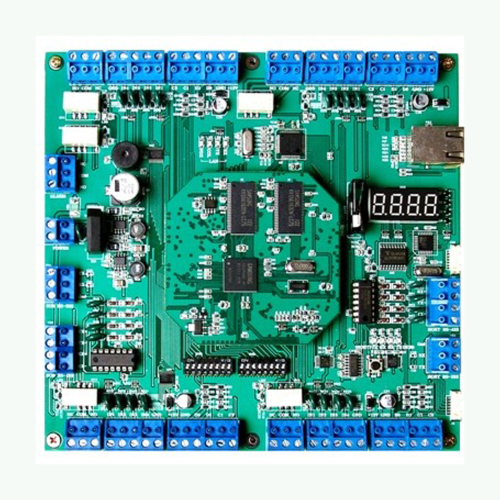

The FC3400 Access Control Terminal consists of a PCB board, a power supply, and a rechargeable battery.

The FC3400 is mainly installed in important facilities because it has a large event storage capacity

and can prevent sudden interruption of power supply.

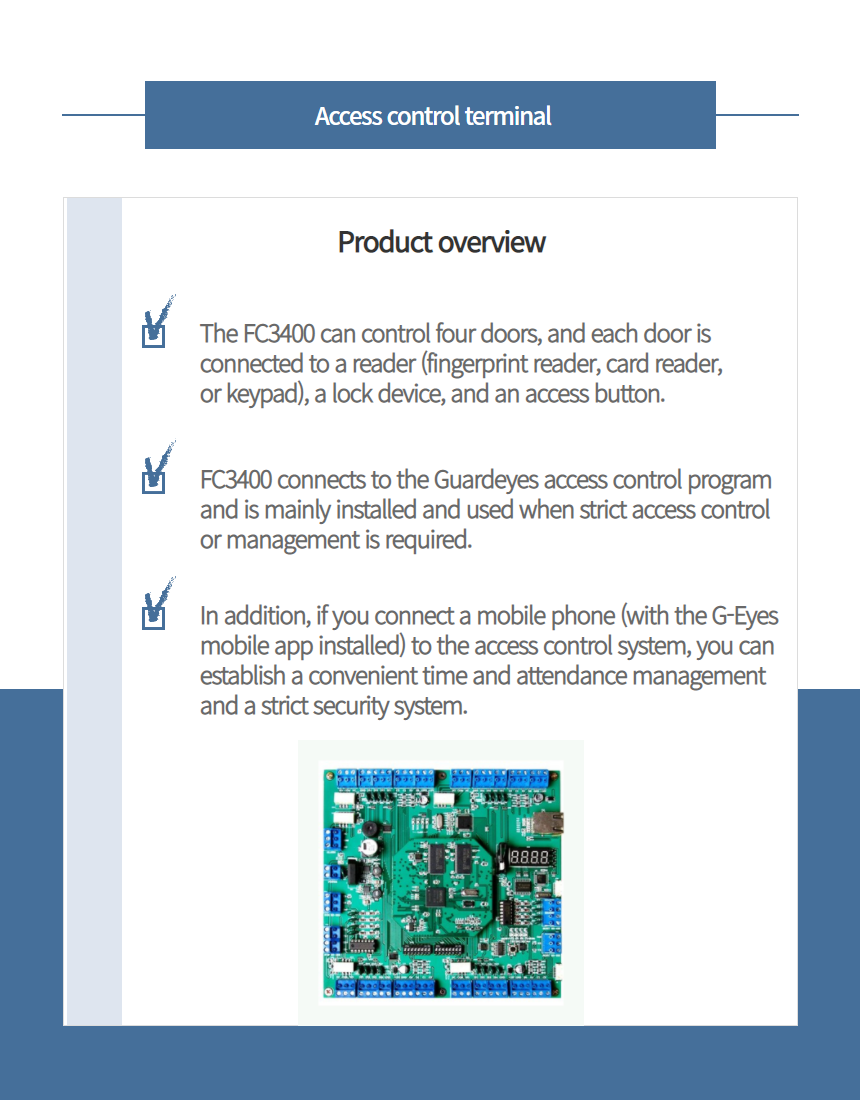

In addition, the access control terminal(FC3400) has a control function, so you have to connect a separate reader

(fingerprint reader, RF card reader, or keypad reader) and control four doors.

In order to operate as an access control system, it should be configured as a control terminal(FC3400),

reader, access control program(GuardEyes), peripheral device (EM / deadbolt lock, exit button).

It is mainly installed and used when strict access control or management is required for a large number of doors,

such as a large factory, a government office, or a building.

In addition, if necessary, it can also be connected with a fire detection system and CCTV camera system for strict access control.

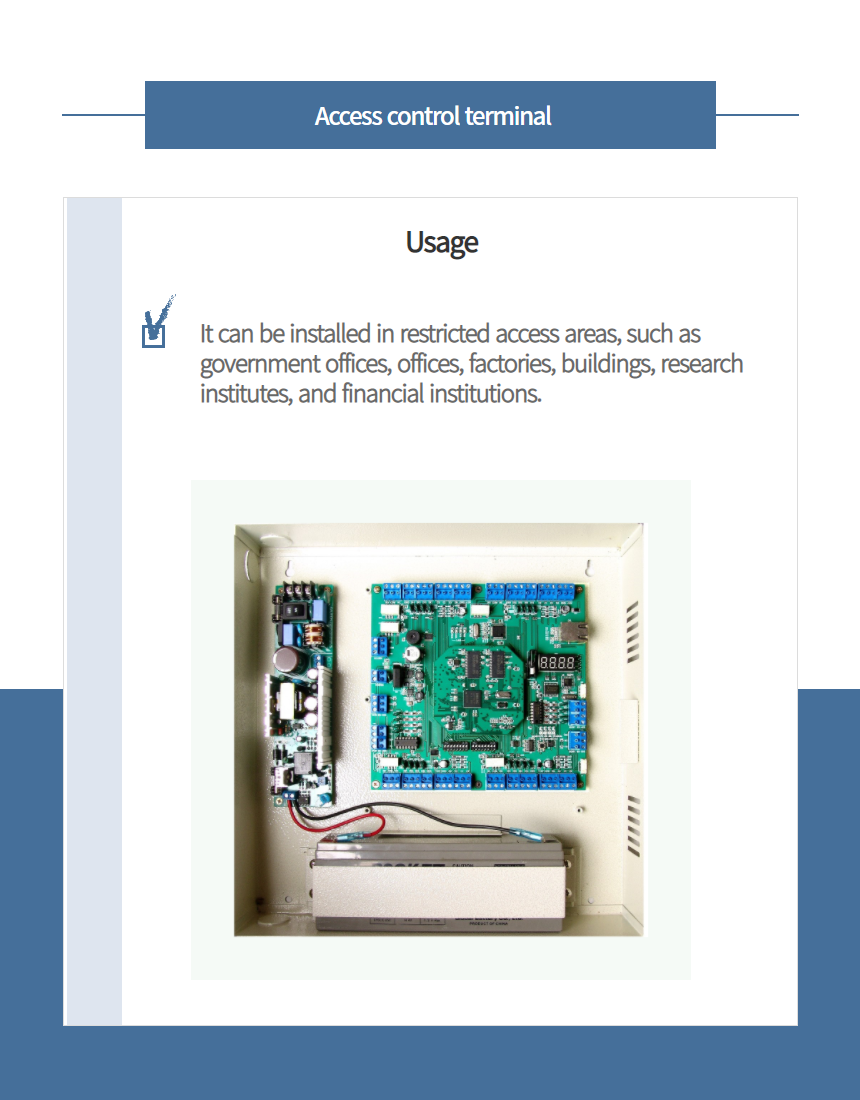

Usage

Areas requiring restricted access and simple attendance management such as government offices,

offices, factories, buildings, laboratories, and financial institutions

Product Specifications

Model			FC3400(4 doors)
CPU			400MHz 32bit Microprocessor(ARM9)
Mem-ory	Program Memory		64MByte SDRAM
	Data Memory		128Mbyte NAND Flash Memory
Power	Power supply		(Input) AC100-240 free voltage, (Output) 13.5V, 2A(Minimum 0.2A, Peak Current 4A)
	Main PCB		DC12V / over 1.5A
Communication			RS232, RS422, RS485, Ethernet(TCP/IP)
Baud Rate			19,200bps(default), 4,800bps, 9,600bps, 38,400bps, 57,600bps (selectable)
User		RF card	Based on RF card 200,000 users
		Fingerprint	30,000-40,000users(based on model FM1000/2000)
Event Buffer			400,000 event Buffers
Reader Port			4ea Weigand : 26bit ~ 96bit automatic identification, 4/8bit Burst for PIN, 1ea sub-reader port : RS422, fingerprint reader and R/W Mifare card
Input Port			16ea(exit button 4개, door sensor 4ea, other 8ea intrusion detection, fire alarm etc)
Output Port			Relay output 4ea / 120VAC 0.5A, 24VDC 1A TTL output 8ea / DC5V, rating max. 40mA
LED Indicator			21 LED indicators(communication status 8ea, relay output 4ea, power 1ea, Operating conditions and self-check results 7Segment LED 4ea)
Beeper			Piezo buser
Expansion I/O Board			8 doors I/O Board
Dimension PCB/Case(WxHxT)			156x180x22mm / 325x325x63mm
Weight(pcb,set)			300g(pcb only), 3.2Kg(incl. PCB, Power Supply, Rechargeable Battery, Steel Case),

FC3400 Product Certification Status

-. KC, CE, FCC certified

Function in GuardEyes program with FC3400

-. Function to register, save, change and delete user ID / fingerprint / card / password

-. Function to display user's access sign in real time

-. Function to store and recover a list of registered users and installed controllers in preparation

for pc failure / replacement

-. Function to remotely control the door (temporary opening, opening continuously, closing)

-. Emergency notification function for emergency occurrence of forced breakage / forced opening of door

-. Alarm function when installing and connecting fire detector

-. Time limit access and simple time attendance management function

-. Restrict access to the door according to the user's position or role

-. There are many other setting functions. End
