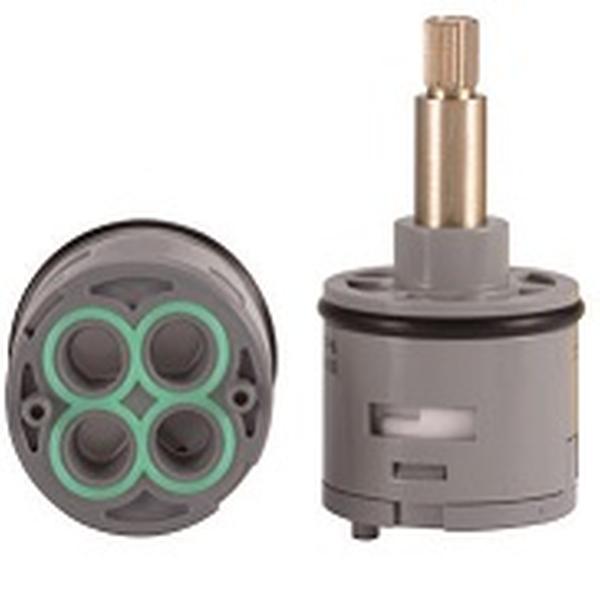

35mm Diverter Cartridge 4-Way
Request For Quotation
35mm Diverter Cartridge 4-Way
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 2,000
Detailed Description
| MATERIAL | ||||
| 1. CASE: NORYL (PPO) | ||||
| 2. LEVER&DISC COVER: NYLON (PA6+GF) | ||||
| 3. CERAMIC DISC: Al₂O₃96% | ||||
| 4. SEAT: NORYL (PPO+GF) | ||||
| 5. SEAT PACKING SILICON OR NBR | ||||
| OTHER | ||||
| 1. NUT TORQUE: 10~11 Nm | ||||
| 2. WATER RESISTANCE PRESSURE: MAX 25 bar | ||||
| 3. WORKING TORQUE: MAX 0.5kgf·cm | ||||
| 4.TEMPERATURE: 90℃ | ||||
| 5. NOISE LEVEL: MAX 15~18 db | ||||
| 6. FLOW RATE (at 3bar): 23~25ℓ/min | ||||
| 7. LIFE CYCLE TEST: 500,000 cycles |
