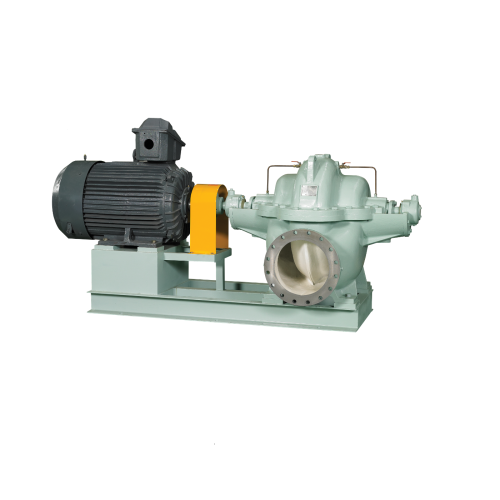

Model name : GDV

Suction bore : 350mm

Discharge bore : 300mm

Usages and Applications

- Air Conditioning

- Building Services

- Circulating Water Systems

- Fire Fighting

- Irrigation

- Paper Mills

- Pharmaceutical

- Ports and Docks

- Sugar Mills

- Water Supply

Design & Structure Features

- High efficiency, lower noise when driving with less failure rate in a wide range of usages.

- Vertical Split casing gives easy maintenance.

- Flange complies with KS. JIS-FF, RF type.

- Impeller is dynamically and hydraulically well balanced.

- Fan-type impeller mounting is possible.

- The use of grease-lubricated ball bearing is used, Oil type is also available(Option)

- Bearing housing is mounted in the flange and can be pinned to finding precise realignment.

- The short distance between bearings on the shaft gives low warpage.

- Stuffing Box is a non-cooled, the Packing type is basic and the Mechanical Seal type is optional.

Option

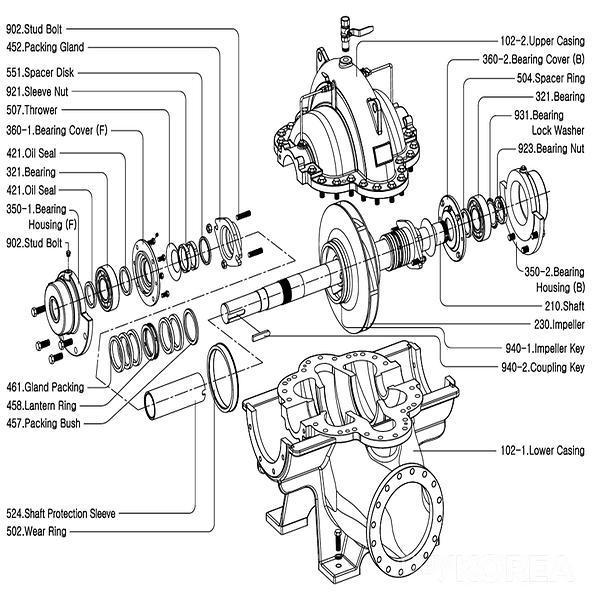

- Non-standard material (See the Option in the Structural Drawing)

- Types of Shaft Seal

- Non-standard coupling

- Attachment of companion flange

- Color & thickness of paints
