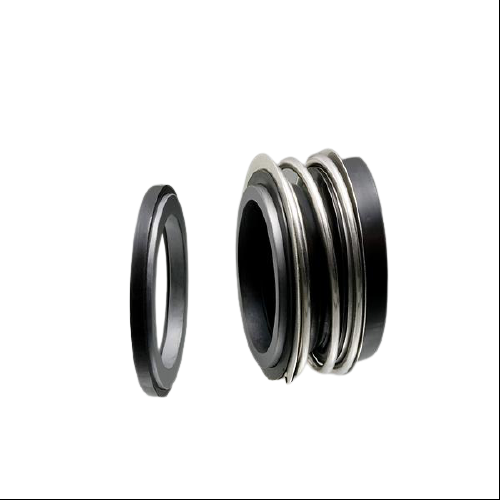

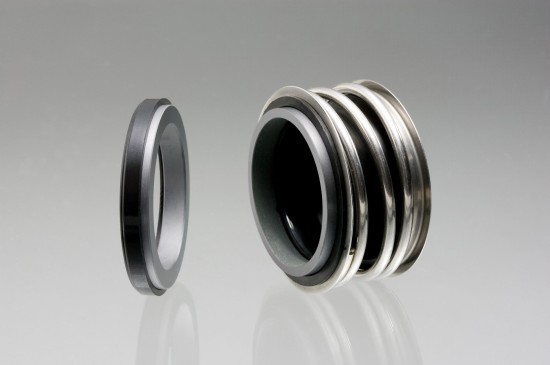

Mechanical Seal Elastomer Bellows Seal - STG1, 2, 3
Request For Quotation
Mechanical seals, Elastomer Bellows Mechanical seals, Rubber Bellows seals, Burgmann Mechanical seal, Single face, Unbalanced seal
- Certification
-
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Sets
Detailed Description
The mechanical seals of the STG series are the most commonly used mechanical seals, as they are robust, heavy duty bellows design, for provides excellent flexibility and durability. The mechanical seal of the STG series could be selected according to fitting length of EN12756 among STG1, STG2, STG3.
Operating Capabilities
• Temperature : -20~140℃
• Pressure : Up to 1.2 MPa
• Speed : 10m/sec
• Axial movement : ±1.0 mm
Materials
• Seal Face
- Silicon carbide
- Tungsten carbide
- Aluminium Oxide
- Resin Imp. Carbon
