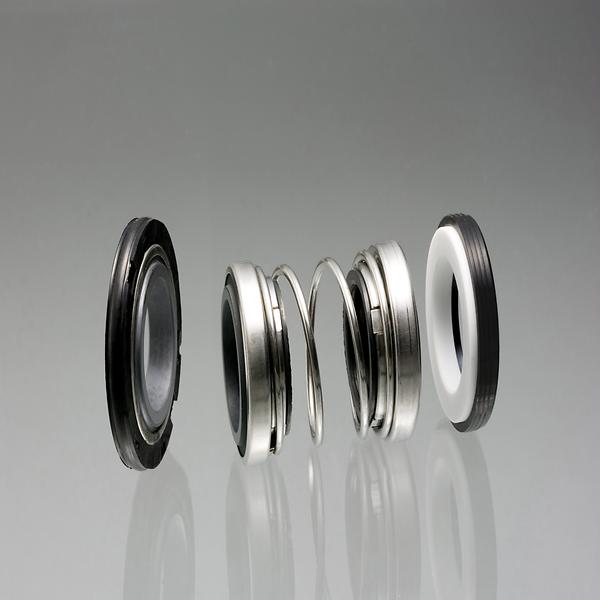

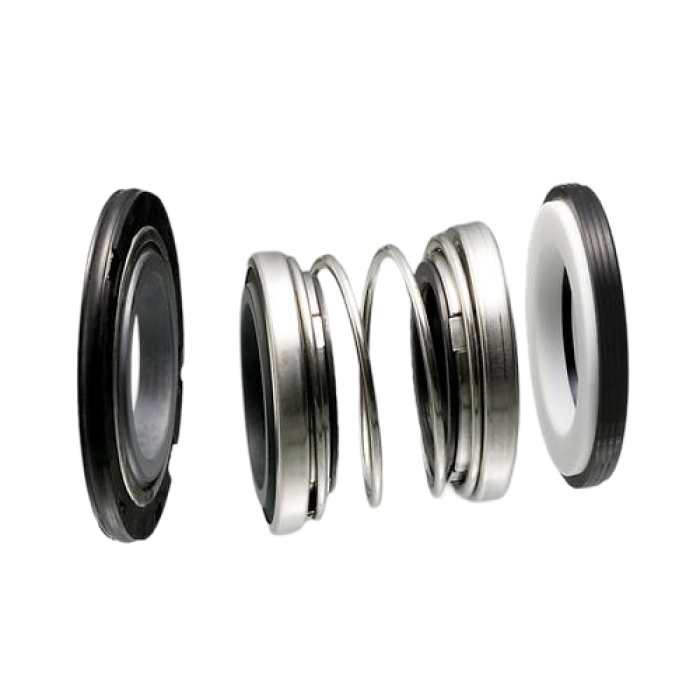

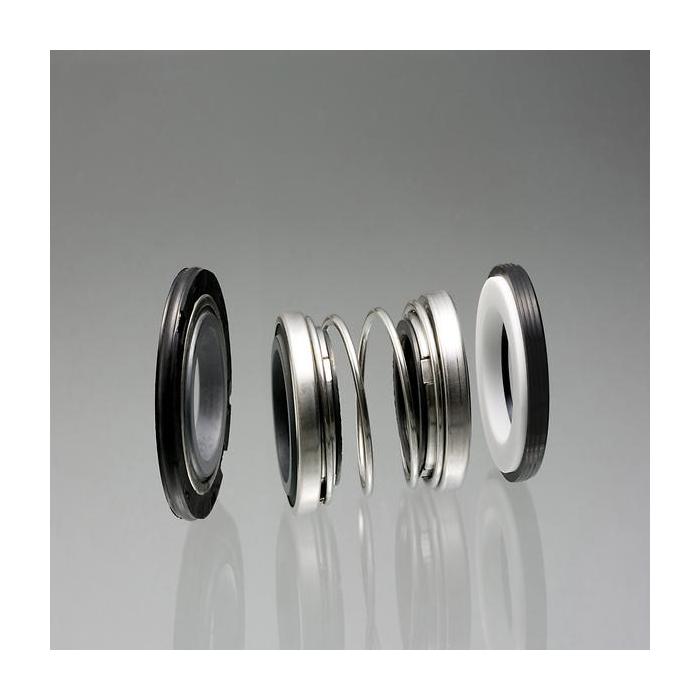

Mechanical Seal Elastomer Bellows Seal ST560D
Request For Quotation
Mechanical seal, Elastomer Bellows seal, Rubber Bellows seal, Submersible pump, Water pump, Slurry pump
- Certification
-
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Sets
Detailed Description
ST560D is developed for a submersible pump, rubber molded dual seal.
Specific Features of ST560D
• For submersible pump seal, rubber molded, dual seal.
• The ST560D is self-adjusting to shaft misalignments, deflections
and seal face wear because of the loosely inserted seal face as
well as the ability of the bellows to stretch and tighten.
Operating Capabilities
• Temperature : -20~90℃
• Pressure : Up to 0.5 MPa
• Speed : 10m/sec
• Axial movement : ±1.0 mm
Materials
• Seal Face
- Silicon carbide
- Resin Imp. Carbon
- Aluminium Oxide
