■ Applications

Tribocharging is a typical ESD source and induced field from insulators must be controlled in EPA(ESD protected area). Process required insulators are commonly used in many places and should be neutralize by ionization systems.

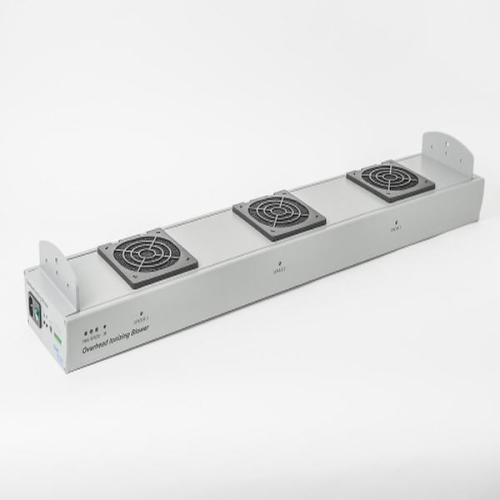

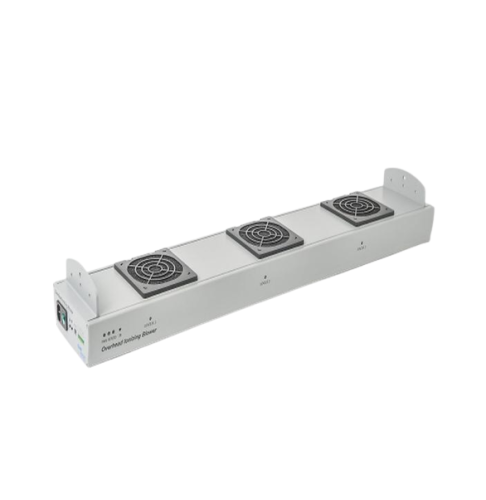

Model 3300 series has designed versatile applications for semiconductor backend, printed circuit board assembly and general electronics applications.

Model 3300 series ionizing Blower doesn’t required regular based calibration. It has intrinsically maintain low offset voltage within a specification. Alarm output monitoring interface will allow real time ionizer status monitoring and give visual & audio alarms when HV power fail and imbalance situation.

■ Specifications

Input Voltage 24V DC, 25.2W (Maximum)
Ion Emission Steady-State DC Technology
Current Consumption 1.05A (DC 24V) - 3Fan High Speed
Discharge (±1000V to ±100V) less than 2 seconds at 45cm
Function Fan Velocity Adjust-3Step , FMS, Alarm
Alarm Function Visual(LED), Audio(Buzzer) HV Power Fail, Balance Fail

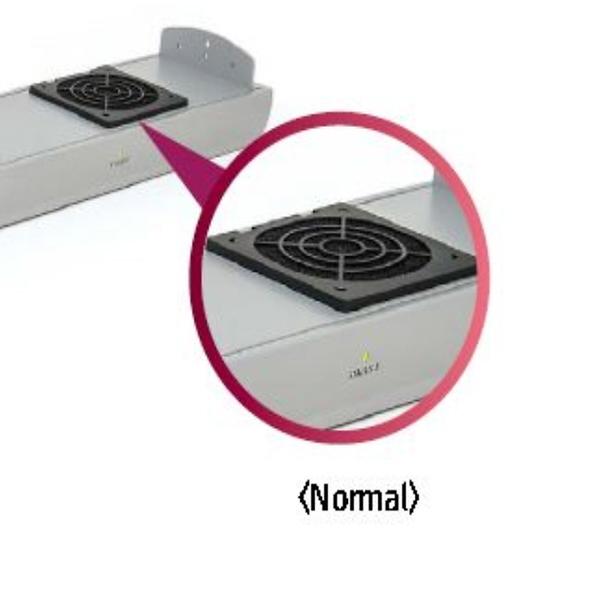

Indicator Normal : Green
                 HV Power Fail : Red
                 Balance Fail : Red (Blink)
Output Monitoring FMS Interface
Air flow 420 CFM (Maximum 453 CFM)
Emitter Point Tungsten 99.99%
Material Ionizer body : ABS
               Grill cover : ABS(Black)
               Bracket : ABS
Operating Environment Temperature: 15~35℃, Humidity: 35~85% RH
Dimensions (W×H×D) 1000×118.2×180.5mm
Weight 3.6kg

Warranty 1year

■ Optional

 IR Remote control (On/Off, Fan Velocity Adjust)
