■ Applications

Tribocharging is a typical ESD source and induced field from insulators must be controlled in EPA(ESD protected area). Process required insulators are commonly used in many places and should be neutralize by ionization systems.

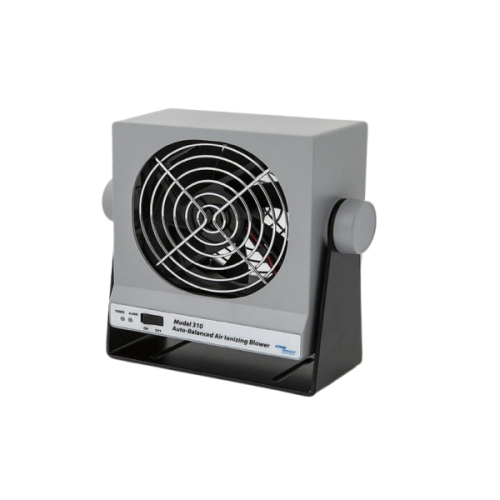

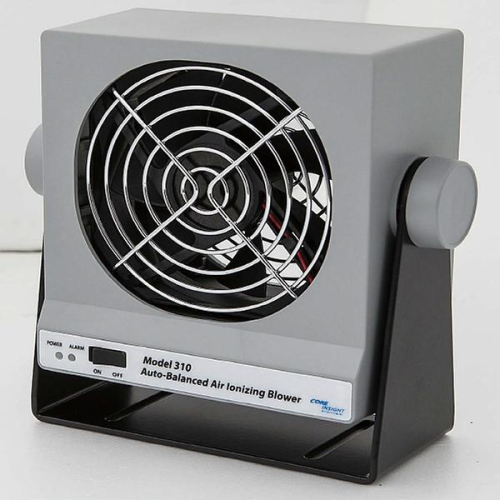

CoreStat auto-balanced technology, Model 310S has designed versatile applications for semiconductor backend, printed circuit board assembly and general electronics applications. Model 310S ionizing blower doesn’t required regular based calibration and intrinsically maintain low offset voltage within a spec.

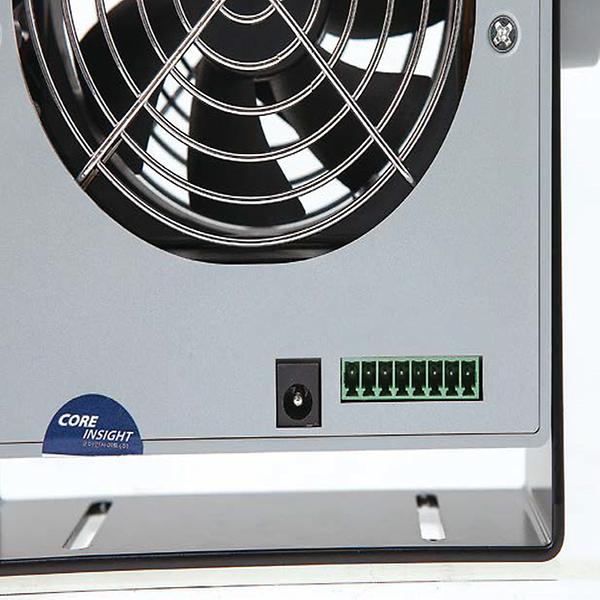

Facility monitoring system interface will allow real time ionizer status monitoring.

■ Specifications

  Input Voltage 24V DC, 7.2W (Maximum)
  Ion Emission Steady-State DC Technology
  Balance < ±20V
  Discharge (±1000V to ±100V) less than 2 seconds at 30cm
                                                 less than 5 seconds at 60cm
  Air flow 100 CFM
  Emitter Point Tungsten 99.99%
  Output Monitoring FMS Interface
  Material Ionizer Ionizer body- ABS (Gray) / Bracket-Aluminum
  Operating Environment Temperature : 15~35℃, Humidity : 35~85% RH
  Dimensions(WxHxD) 125x135x69.5mm (with bracket 152x154.5x69.5mm)
  Weight 571g (with bracket)
  Warranty 1year
