■ Application

  Tribocharging is a typical ESD source and induced field from insulators must be controlled in EPA(ESD protected area). Process required insulators are commonly used in many places and should be neutralize by ionization systems.

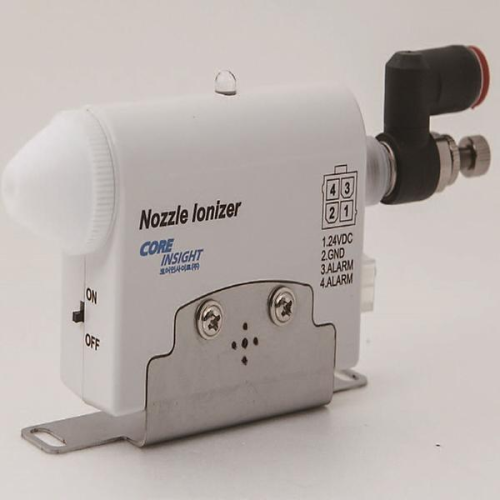

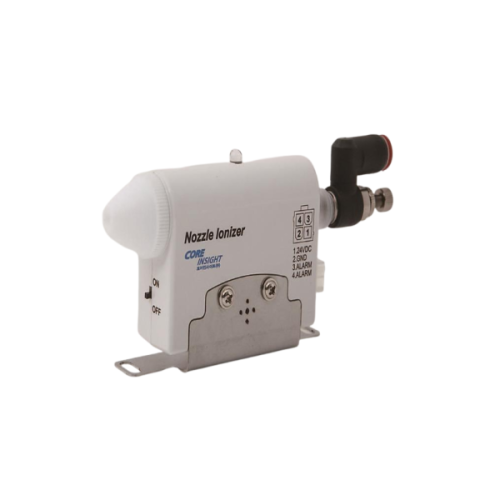

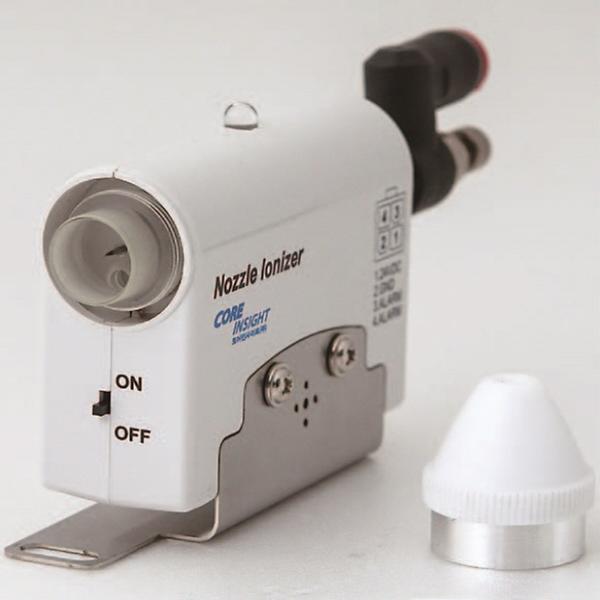

  Model 4110 has designed versatile applications for semiconductor backend, printed circuit board assembly and general electronics applications. Model 4110 Nozzle Ionizer has built-in feedback sensor to detect out of balance in low voltage level.

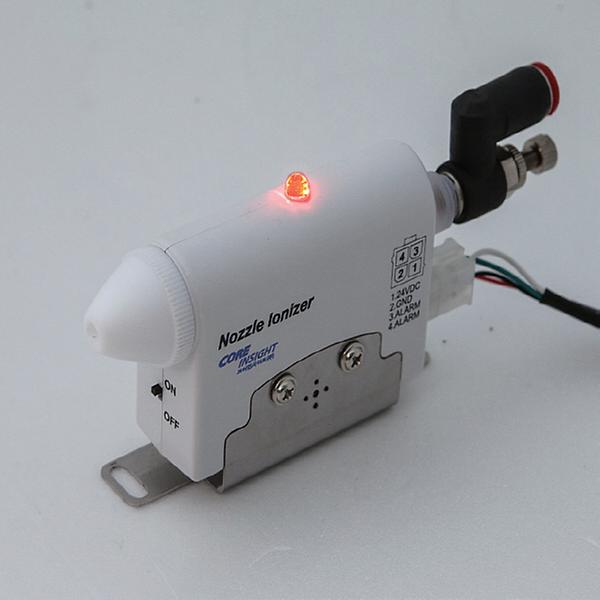

  Output alarm monitoring interface will allow real time ionizer status monitoring and give visual(LED) & audio(buzzer) alarms when HV power fail.

■ SPECIFICATIONS (Preliminary)
  Input Voltage 24V DC, 2.2W (Maximum)
  Ion Emission High Frequency AC (70kHz)
  Balance Avg <+/-10V, Max <+/-30V
  Emitter Point Tungsten 99.99%
  Alarm Function  Visual (LED), Audio (Buzzer) HV Power Fail (Normal open)
  Output Monitoring FMS Interface
  Air Pressure 0.1~0.5 Mpa
  Air Inlet 6mm Inlet
  Material Ionizer body: ABS (White) / Bracket: SUS
  Operating Environment Temperature: 15~35℃, Humidity: 35~85% RH
  Dimension (W×H×D) 134×55.5×25mm (with bracket 134×61.1×25mm)
  Weight 90g (with bracket)
  Warranty 1year

■ Option

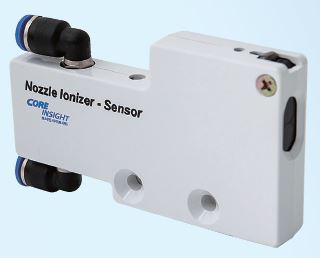

  Model 4111 : Nozzle Ionizer-Sensor

  Model 4110 is operating air outlet when the IR sensor derect.(ex: Conveyer lines etc.)
