General Description

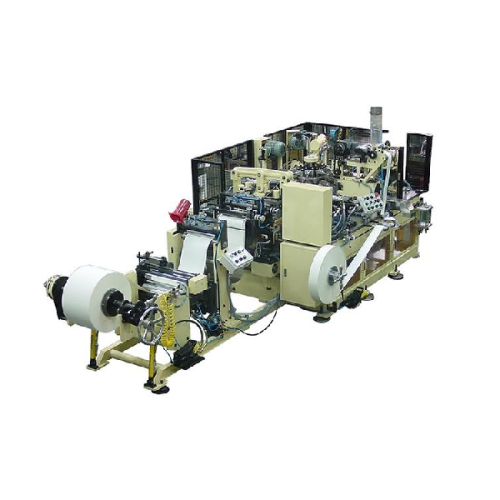

 The Hi-Master 500 is designed for automatic production of one side PE (polyethylene) coated and double side PE coated paper cup.

Application of Machine

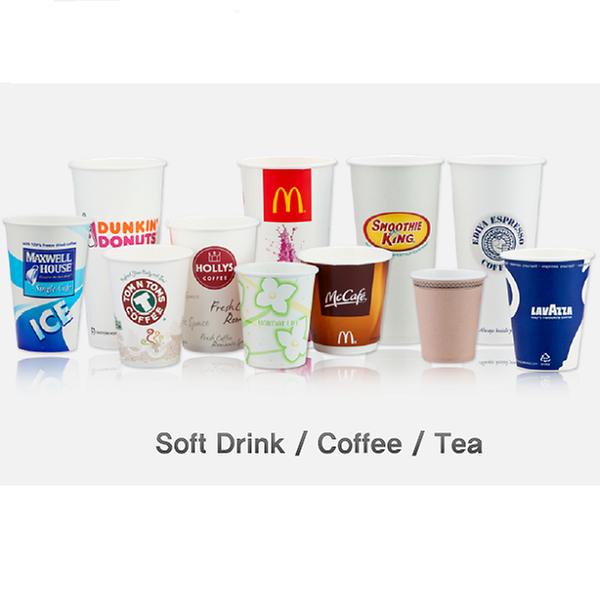

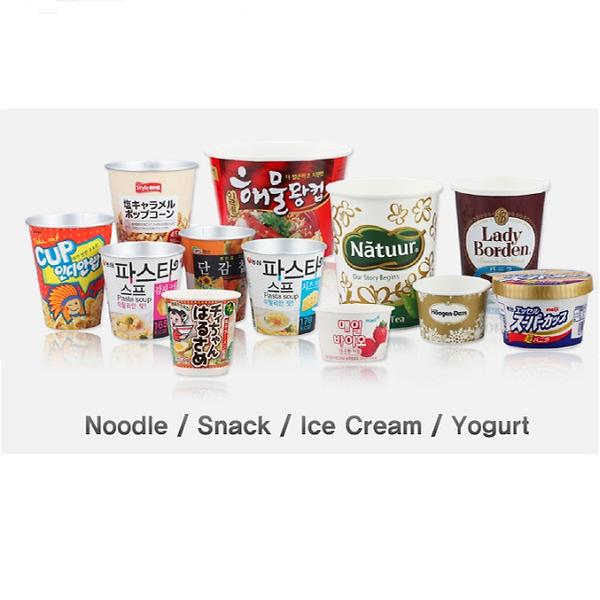

 The Hi-Master 500 produces drinking cups for hot and cold liquids as well as ice cream cup, food container and other applications.

Special Advantage of Hi-Master 500 Model

 ∎The machine designed for high-speed and long run production.

 ∎Extra-strength mechanical component, heavy-duty solid-state controls, easy and simple

    operation.

 ∎Quick change of mould and adjustment.

 ∎The price of machine is very reasonable.

 ∎Quick and reliability service of machine.

 ∎variable speed control of machine according to working condition.

Sepecification of Machine

 ∎Model Number : Hi-Master 500 HA/RB

 ∎Size : 4,175㎜ x 2,000㎜

 ∎Weight of machine : 7,100kg

 ∎Feeding method : Rotary Black Feed type

 ∎Production Speed : Max 180 pcs/min

 ∎Total electrical power : Approx 43.85kW

 ∎Required pressed air : Approx. 3.2㎥/min

 ∎Size Rnge of Paper Cup : 3oz(90cc) ~24oz(720cc)

 ∎Manufacture speed of machine : 3oz ~ 10oz : 130 ~ 180 pcs/min

                                                         11oz ~ 24oz : 130 ~ 160 pcs/min

 ∎Manufacturing Country : South Korea.

∎Payment terms : T/T, L/C

∎Delivery terms : C.I.F, F.O.B
