Usage of the Universal Joint:

The universal joint is used to link to axes of movement that are placed relatively farther apart, or when the angles of each axis are variable.

Thus, one axis can drive another axis even when the two are not perfectly aligned,

and force can be effectively transferred from the driving axis to the receiving axis positioned at an alternative angle.

Major Customers:

Ironmaking machines, rolling mill plants, calender drives, paper machines, special vehicles, railway vehicles, marine drives,

pump drives, general machinery construction plants

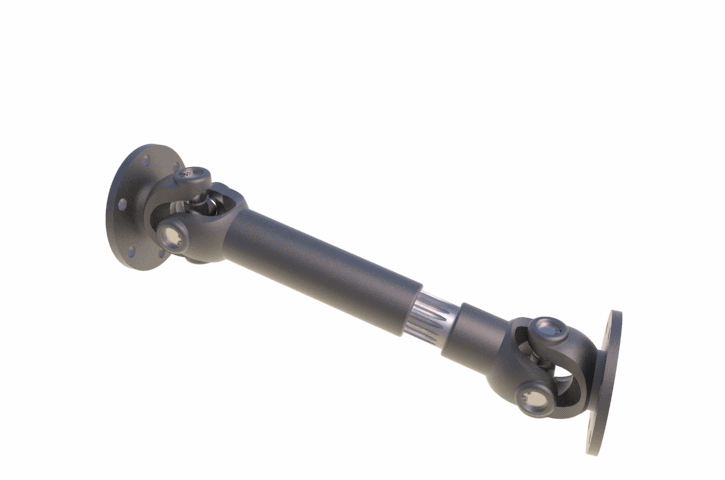

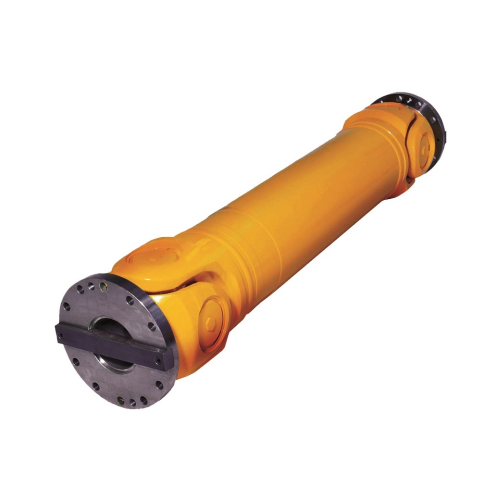

1. Cardan shaft

Features:

- Most widely used model for industrial equipment with excellent usability

- Universally used model with well-balanced performance, durability, strength, and price

- Applicable for vehicle as high-speed and continuous operation is available

- Appropriate for transferring high torque

- Spinning diameter: ø58~550mm

- Maximum torque: 150~900,000N/m

- Manufacturing period: 7~90 days

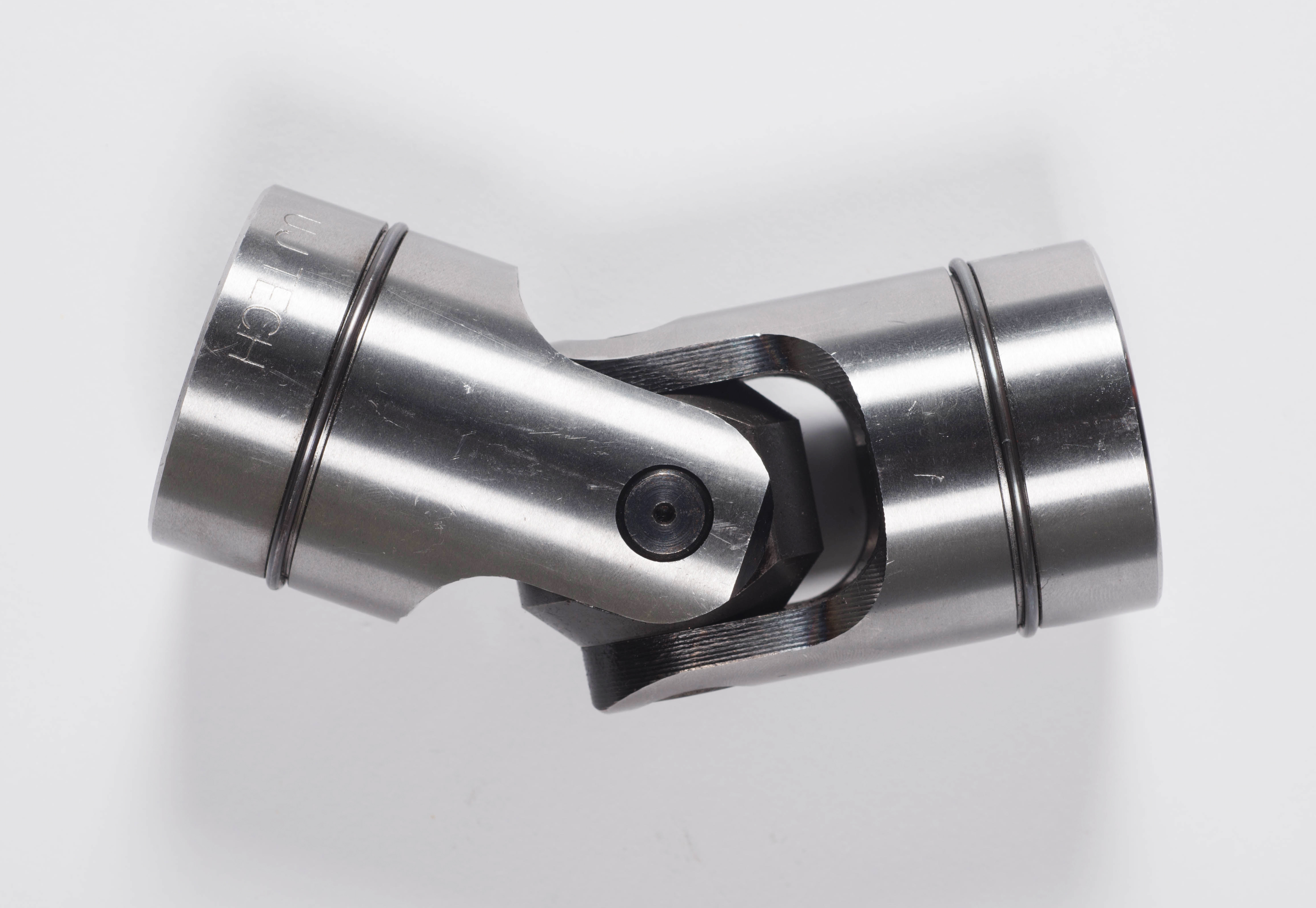

2. Cross-pin Type

Features:

- Easy to install as direct coupling to the axle is possible

- High force transfer while compact size

- Available to select coupling type among pin, key and quick types

- Applicable to low-speed system as bearing is not embedded

- Applicable when automatically lubricated

- Spinning diameter: ø10~120mm

- Maximum torque: 83~18,500N/m

- Manufacturing period: 20~40 days
