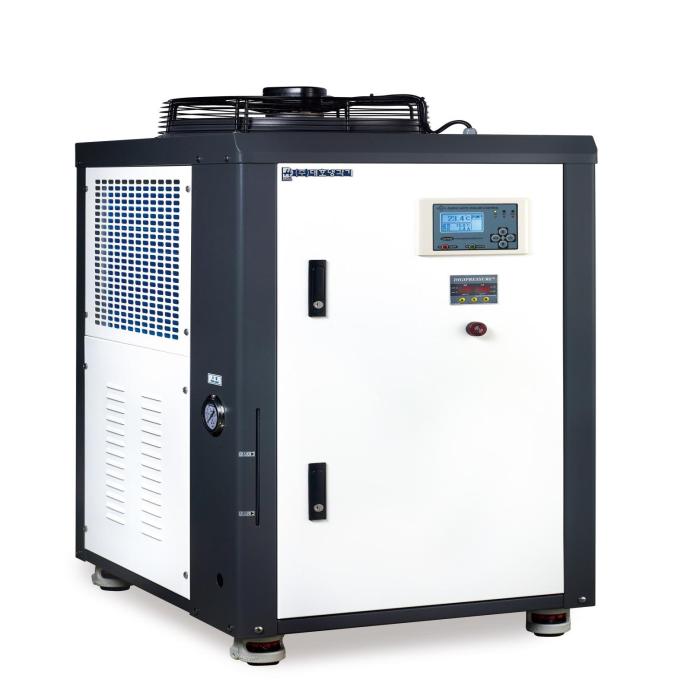

Air Cooled Type Oil Chiller
Request For Quotation
Oil Chiller (AL series)
Allow the machinery, Equipment that use cutting oil, lubricating oil and hydraulic oil
to achieve High efficiency & high performance
Allow the machinery, Equipment that use cutting oil, lubricating oil and hydraulic oil
to achieve High efficiency & high performance
- Certification
-
- Award
-
- Shipping
-
- Lead Time10 ~ 30days
- Type of Freight MT
- Modes of Transport CIF,EXW,FOB
- Products Shipped From Busan,Incheon
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Sets
Product Summary
CHARACTERISTIC
- It has Circulation Pump for oil
- Through LCD Screens, It can be checked whether the cooler has any problem or not
- Designed in Plate Cooling System, It has High Efficiency
- It works well by pressing only one button, It is easily movable with a wheel attached
SAFETY FUNCTION
- Alarm when the pressure is too high or low
- Sense gas leaking
- Protecting for Over-Current.
- Built-in circuit for inversion prevention and electricity detection
- Alarm when the temperature is high or low
- It has Circulation Pump for oil
- Through LCD Screens, It can be checked whether the cooler has any problem or not
- Designed in Plate Cooling System, It has High Efficiency
- It works well by pressing only one button, It is easily movable with a wheel attached
SAFETY FUNCTION
- Alarm when the pressure is too high or low
- Sense gas leaking
- Protecting for Over-Current.
- Built-in circuit for inversion prevention and electricity detection
- Alarm when the temperature is high or low
Detailed Description
Standard Specification
|
|
DH-1AL |
DH-2AL |
DH-3AL |
DH-5AL |
DH-7.5AL |
DH-10AL |
|
Dimensions (LxWxH) |
550x470x930 |
780x605x1,195 |
850x665x1,395 |
1310x760x1,470 |
1500x805x1,590 |
1500x805x1,570 |
|
Compressor OutPut (kW) |
0.75 |
1.5 |
2.25 |
3.75 |
5.5 |
7.5 |
|
Cooling Capacitgy (Kcal/hr) |
3,000 |
6,000 |
9,000 |
15,000 |
22,500 |
30,000 |
|
Circulation Pump Output (kW) |
0.2 |
0.75 |
0.75 |
0.75 |
1.5 |
1.5 |
|
Flow Volume (l/min) |
30 |
30 |
40 |
40 |
50 |
60 |
|
Evaporator |
plate-type heat exchanger |
|||||
|
Power Consumption (kW/h) |
1.23 |
2.35 |
3.57 |
5.07 |
7.52 |
10.35 |
|
Power(V) |
AC 1PH 220V 50/60Hz |
AC 1PH 220V 50/60Hz, 3PH 220/380/440V 50/60Hz, |
3PH 220/380/440V 50/60Hz |
|||
