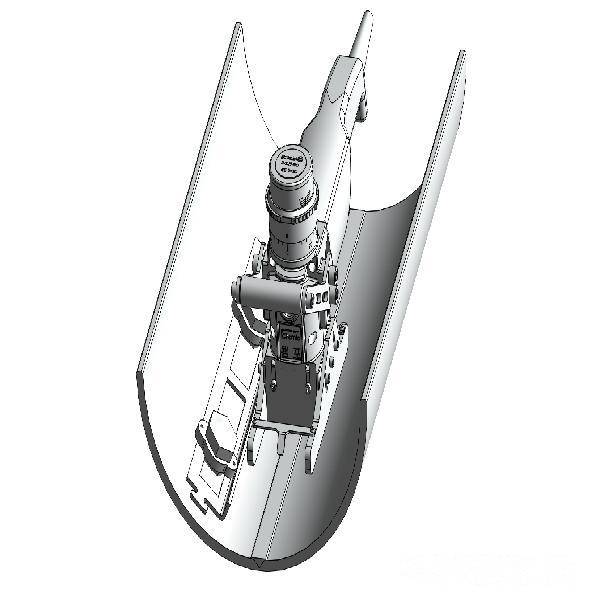

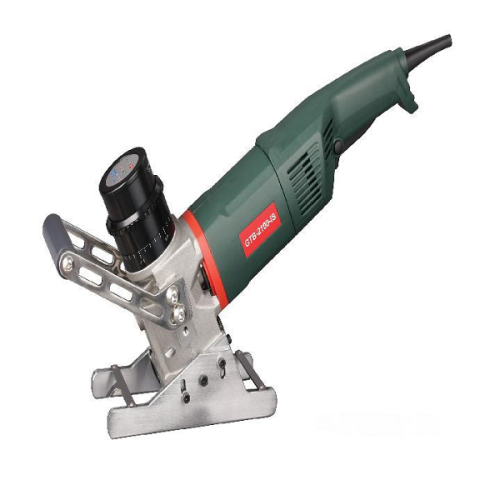

One Touch Weld Bead Shaving Machine for Internal Pipes
Request For Quotation
Weld bead shaving machine for internal pipe, Quick and easy one-touch depth control, Less load and efficiency working with a Face mill cutter
- Award
-
- Shipping
-
- Modes of Transport FCA
- Products Shipped From Daejeon
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Cases
Detailed Description
| Height Adjustment | One-touch spline controller | ||
| Adjustment Increment | min. 0.1 mm step | ||
| Milling units | Single face mill cutter head | ||
| Usage | Removal of the internal weld bead of pipe | ||
| Shaving range | Width: max. 25 mm, Height: -5 mm ~ +8 mm | ||
| Pipe size | min. 350mm inner diameter | ||
| Weight | 6.5 kg | ||
| Power | 1700W (or 1400W) | ||
| Insert | No. of inserts: 3 inserts | ||
| Parts no.: CFWB110350 | |||
| Application | Non-ferrous metal, Steel, other materials | ||
