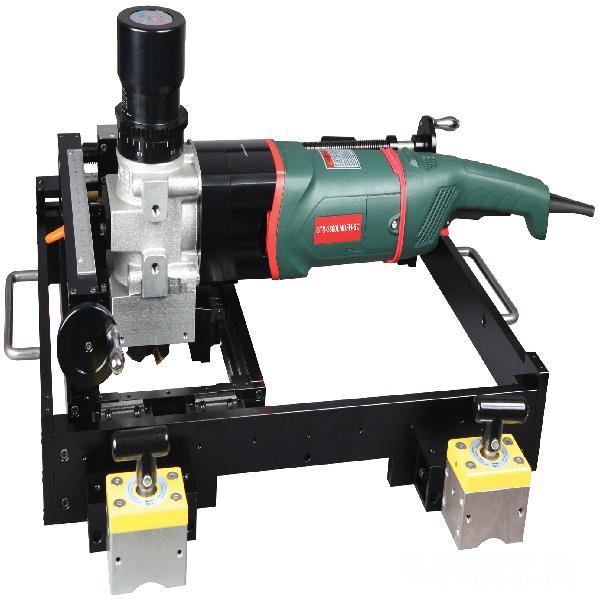

One Touch Weld Bead Shaving Machine for LUG
Request For Quotation
Lug removal machine, Quick and easy one-touch depth control, Less load and efficiency working with a Face mill cutter
- Award
-
- Shipping
-
- Modes of Transport FCA
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Cases
Detailed Description
| Height Adjustment | One-touch spline control | ||
| Adjustment Increment | Face mill cutter | ||
| Components | Milling unit | LM Guide | |
| Facemill cutter | Robust/stable LM Guide | ||
| Width(fixed) : 40mm | Feeding control by a screw | ||
| Height range : -1~19mm (min 0.1mm step) | X --- cycle - 300mm Y --- cycle - 250mm | ||
| Angle 45 ˚ | 4 strong magnets | ||
| Dimension | Length : 680mm / Width : 630mm / Height : 320mm | ||

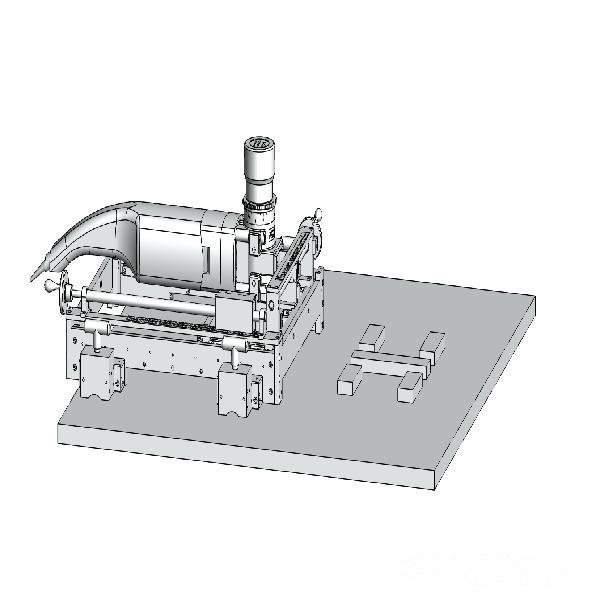

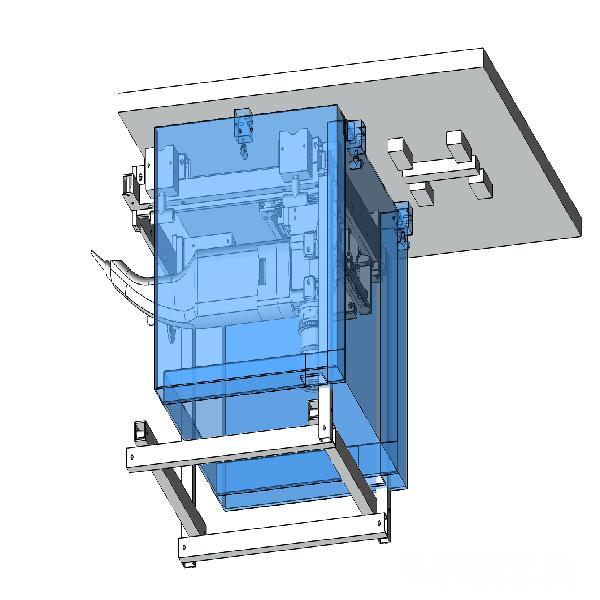

| Usage | Removal weld bead on a wall or a floor | ||
| Power | 2,600 W | ||
| Weight | 35 Kg | ||
| Inserts | no. of inserts : 4 inserts / parts no : CFWB140350 | ||
| Application | Steel, Stainless Steel, Non-ferrous metal, etc. | ||
