[Product Description]

1. Strong power

- Eco-friendly green engine

- Super driving chain

- Hydraulic system rated best in the class

2. Comfortable and spacious driving space

- Free view type stylish cabin

- Centralized instrument cluster

- Hydraulic joystick lever

3. Convenient maintenance

- Easy maintainability

- Simple one-touch detachable

- Boom-down emergency valve

[Product Features]

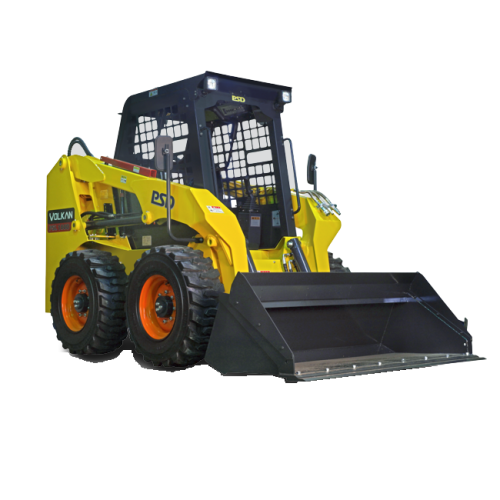

Model: PSL170D

● Dimensions

- Overall Operating Height-Fully Raised:4065mm,

- Height to Hinge Pin-Fully Raised:3090mm,

- Overall Height to Top of ROPS:2086mm, Ground Clearance to Chassis:200mm,

- Overall Length with Bucket:3470mm,

- Wheelbase:1116mm,

- Dump Reach at full Height:455mm,

- Rollback at Ground:29°,

● Engine

- Make:DAEDONG,

- Model:4F243T,

- Gross Output:74hp,

● Capacities

- Rated Operating Capacity:890kg,

- Rated Operating Capacity with Optional Counterweight: 1190kg,

- Tipping Load:1780kg,

- Travel Speed:11.2km/h,

- Operating Weight:3250kg,

- Standard Specification Tire Size:12.0*16.5
