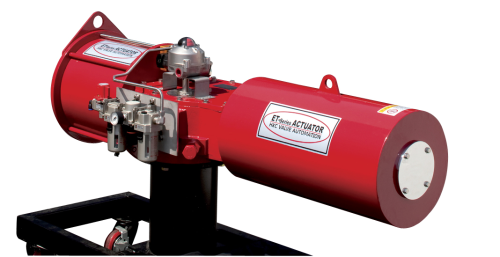

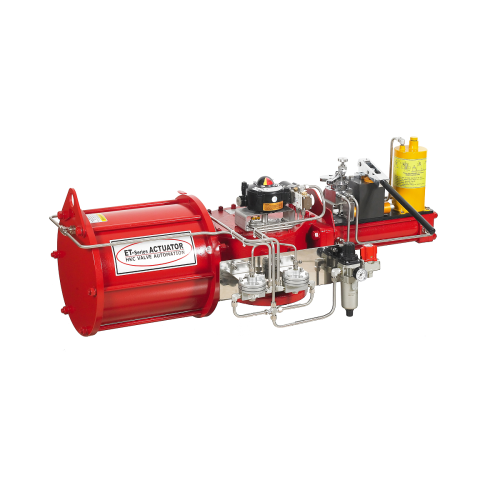

Pneumatic Acurator ET Series
Request For Quotation
ET Series Pneumatic Actuator :
- Applied for operating heavy duty and large size valves. This model, which certified CE mark and SIL, has been continuously increasing export to overseas markets.
- Applied for operating heavy duty and large size valves. This model, which certified CE mark and SIL, has been continuously increasing export to overseas markets.
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
Detailed Description
▶ ET Series
- Torque range : 495Nm ~ 750,000Nm
- Scotch yoke design
- Symmetric or Canted type design
- Single acting or Double acting
- Pressure range -> Max working pressure : 10 bar
- Temperature range
· Standard : -20°C ~ 80°C
· Option : -35°C ~ 80°C (low)
- 20°C ~ 150°C (high)
- 90 degree standard adjustable -5°~+5°(travel stopper)
- Safe piston guide bar
- Easy setting indicator
- Spring rod guide
- Compact air tubing (option)
- Manual override
· Jack screw override (option)
· Hydraulic override (option)
