AJCE Hydraulic Breaker Silent Box Bracket Type

Request For Quotation

AJCE Hydraulic Breaker Silent Box Bracket Type
21 models can be installed on 1 ton to 60 ton excavators

Certification

Award

Shipping

Payment: 140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More

Detailed Description

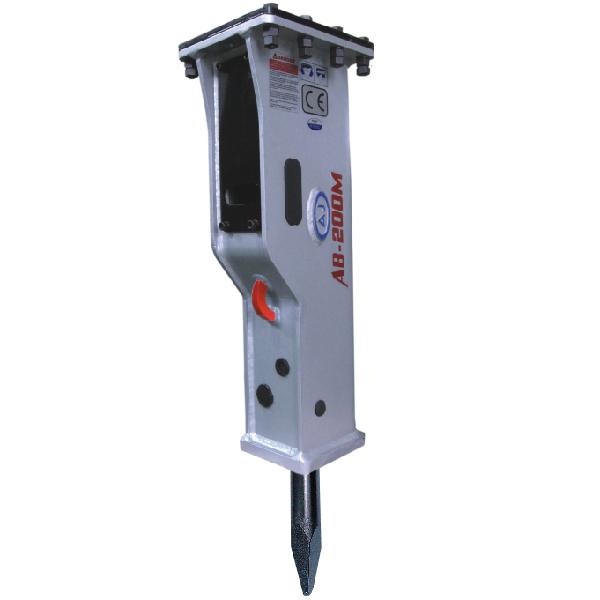

AJCE Hydraulic Breaker Silent Box Bracket Type

1. Reliable and durable quality made by 100% in-house manufacturing

2. Both auto-greasing and underwater hammering are available

3. Ready stock for all 21 models in Netherlands

Description / Model			Small Range
			Inward valve type without Accumulator
			100M	200M	300M	350M	400M	430M
Suitable Excavator		ton	0.8~2.5	1.2~3.0	2.5~4.5	3.0~5.5	4~7	6~9
Suitable Excavator		lb	1764~5512	2646~6614	7716~9921	6722~12125	8962~15432	13228~19841
Operating	Top Type	kg	99	121	148	224	321	407
	Top Type	lb	218	266	326	493	706	895
	Box Type	kg	113	139	168	247	325	413
Weight	Box Type	lb	249	306	370	543	715	909
	Side Type	kg	77	99	132	198	275	418
	Side Type	lb	169	218	290	436	605	920
Required Oil Flow		l/min	15~30	20~40	25~50	30~60	40~70	50~90
Required Oil Flow		gal/min	4.0~8.0	5.3~10.6	6.6~13.2	7.9~16.0	10.6~18.5	13.2~23.8
Setting Pressure		bar	150	150	150	150	170	180
Setting Pressure		psi	2134	2134	2134	2134	2418	2560
Operating Pressure		bar	90~120	90~120	90~120	100~130	110~140	120~150
Operating Pressure		psi	1280~1707	1280~1707	1280~1707	1422~1849	1565~1991	1707~2134
Impact Energy		joule	203	271	406	542	677	1017
		ft.lbs	150	200	300	400	500	750
		kg.m	21	27	42	56	70	104
Impact Rate		bpm	800~1400	700~1200	600~1100	500~1000	500~900	400~800
Hose Diameter		inch	⅜, ½	⅜, ½	½	½	½	½
Noise Level		dB	106	107	109	117	109	115
Tool Diameter		mm	40	45	53	60	68	75
Tool Diameter		inch	1.6	1.8	2.1	2.4	2.7	3.0
* The above specifications are subject to change without prior notice for the quality enhancement.
* Operating weight include Mounting cap, Pin sets and Tool by AEM regulation.
* Noise level is for Box type.
