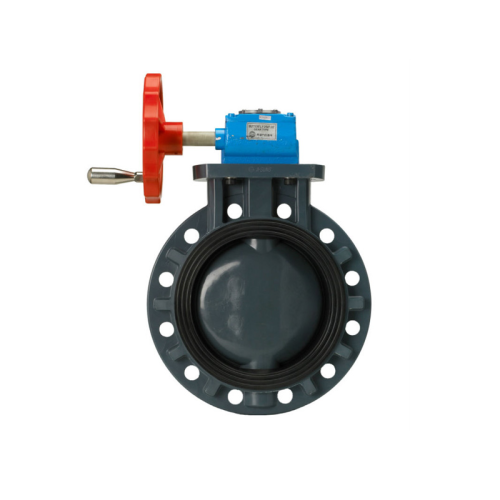

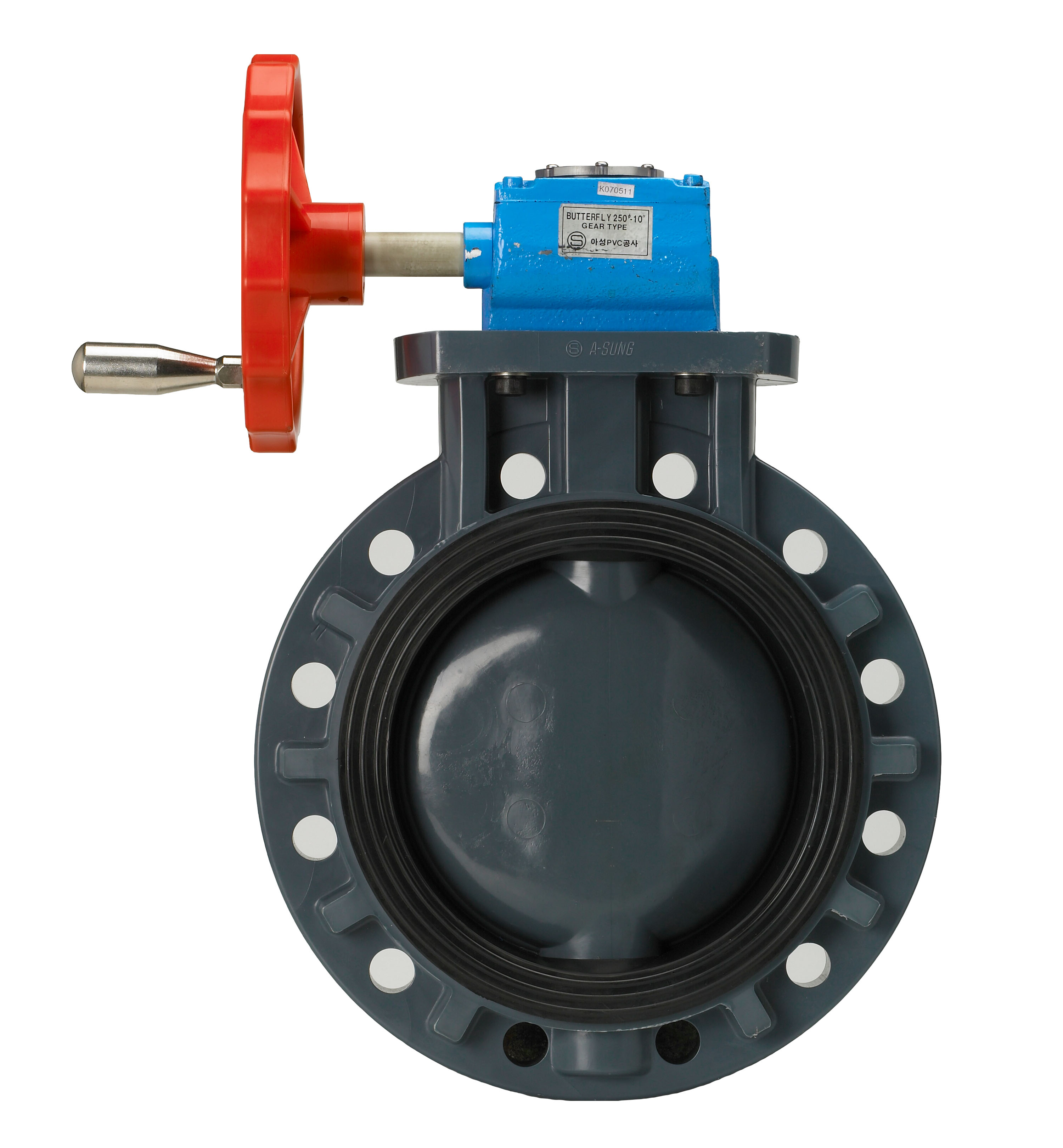

BUTTERFLY VALVE(GEAR TYPE)

  TYPE  : GEAR

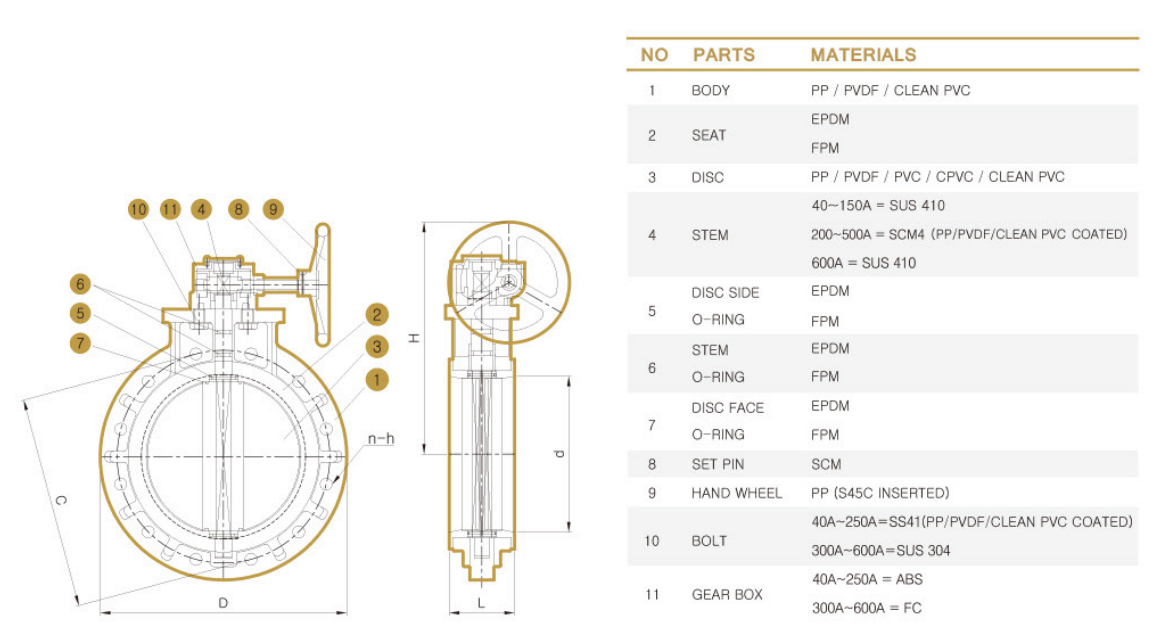

 MATERIALS(BODY/DISC)  :  PP/PP, PP/CPVC, PP/PVDF, PVDF/PVDF

SEAT : EPDM or FPM

STANDARD

JIS  :  40mm - 600mm

ANSI  : 1 1/2" - 24"

FEATURE

• Installation in small and narrow spaces enabled
• Lever (small, medium caliber), Gear (small, medium, large caliber), installation of Type Operator
• Maintaining water volume and pressure in straight alignment with the passage and pipelines for fluids
• Manufacturing enabled size up to 600mm, 24"
• Designed to minimize Disc fluid loss
• Installation of Actuator possible
