Chemical Resistance Butterfly Valvelever Type

share

Request For Quotation
? Straight passage permits no loss of pressure. ? The Disc is strong enough to withstand various fluids
Award
Shipping
  • Modes of Transport EXW,FOB
Payment

140+ Global Payments, trusted and secure payment provided by PayVerse.

Learn More
Quantity
MOQ : 1 Cartons

Detailed Description



pp butterfly valve(lever type).jpg

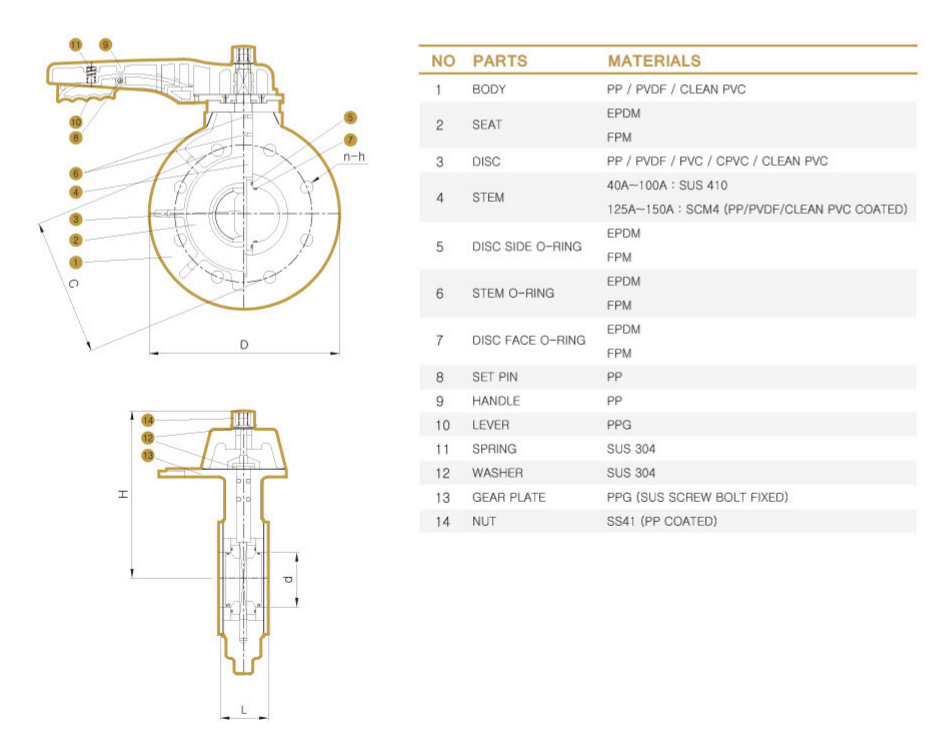

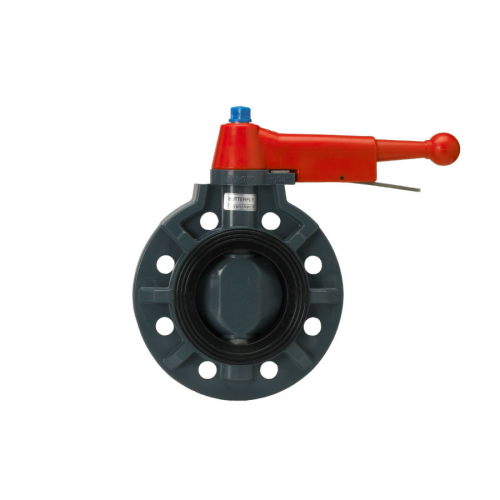

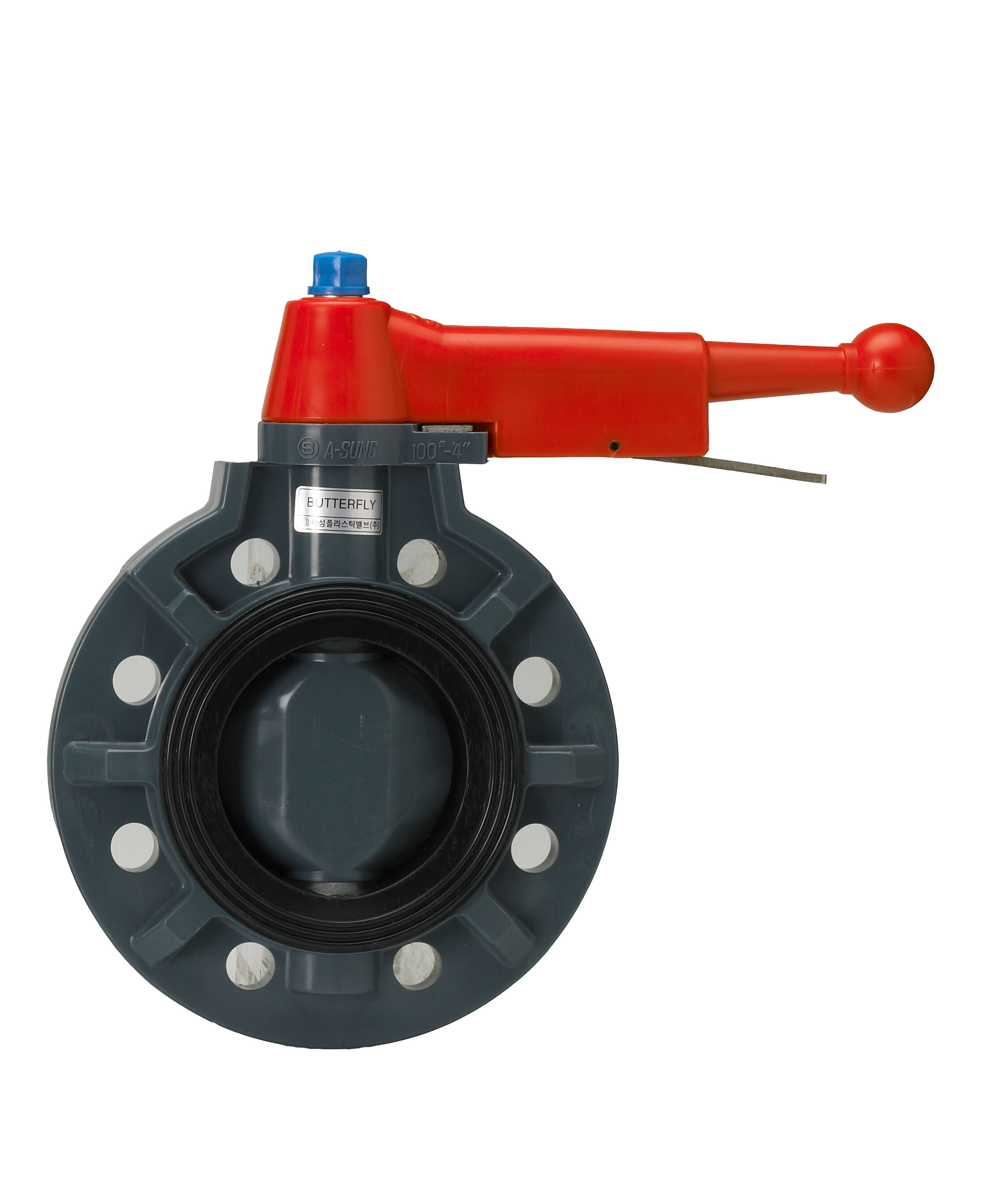

 BUTTERFLY VALVE(LEVER TYPE)





TYPE  :  LEVER

MATERIALS(BODY / DISC)  :  PP/PP, PP/CPVC, PP/PVDF, PVDF/PVDF

SEAT : EPDM or FPM



STANDARD

JIS  :  40mm  - 150mm

ANSI  :  1 1/2" - 6"





FEATURE



  • Installation in small and narrow spaces enabled
  • Lever (small, medium caliber), Gear (small, medium, large caliber), installation of Type Operator
  • Maintaining water volume and pressure in straight alignment with the passage and pipelines for fluids
  • Designed to minimize Disc fluid loss
  • Installation of Actuator possible
