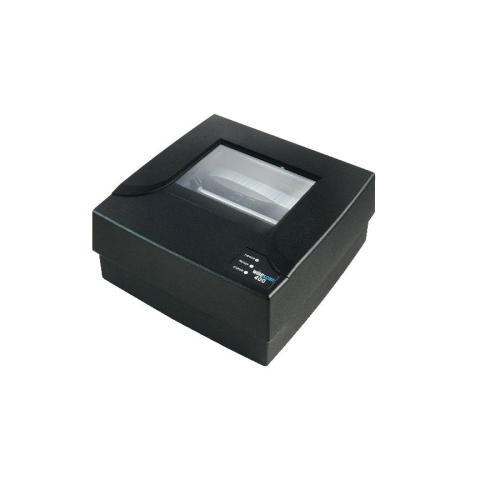

Passport Scanner WiseScan400
Request For Quotation
Flatbed type Passport scanner with RF Reader
- Certification
-
- Award
-
- Shipping
-
- Modes of Transport EXW
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Sets
Detailed Description
FEATURES
WiseScan400 is a flatbed type passport scanner with RFID reader for E-passport.
WiseScan400 scans a passport image without light reflection due to built-in CIS lens blocking reflection.
The vivid and distorted-free images affect to exceptionally reliable OCR rates of MRZ data.
SPECIFICATIONS
| Item | Specification |
| Document | |
| Width | Max 132mm |
| Height | Max 94mm |
| Standard | ICAO9303 specification part 1-4 |
| Scanner | |
| Scanning Side | Simplex |
| Illumination | RGB(470/530/620nm) IR(880nm) |
| Sensor | Color CIS |
| Resolution | 200/300/600/1200dpi |
| Color | 8bit Grey, 1bit B/W, 24bit True Color |
| Image Formats | TIFF G4, JPEG, BMP |
| Scan Speed | One second for 200dpi color image |
| RFID READER | |
| Physical Standard | ISO14443 Type A and B |
| Interface | |
| USB | USB 2.0 High Speed (480Mbps) |
| Compliance | |
| EMI | FCC Class A, KCC |
| Material | RoHS |
| Software | |
| Barcode (Option) | 1D Codes, 2D PDF417, Data Matrix, QR |
| OCR | OCR B font, MRZ area reading |
| Physical Dimensions | |
| Size | 234mm(W) x234mm(D) x65mm(H) |
| Weight | 1.6 kg |
| Power | |
| Input | DC24V, 1.75A |
| Environment | |
| Operating | 0~32°C, 10 ~ 85%, Non condensing |
| Storage | -7~49°C, 10 ~ 98% RH, Non condensing |
