Gearless Traction Machine for Elevator
- Certification
-
- Award
-
- Shipping
-
- Lead Time30 ~ 90days
- Modes of Transport CFR,FCA,FAS,EXW,DPU,DDP,DAP,CIP,CIF,FOB
- Products Shipped From Busan,Incheon
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Units
Detailed Description

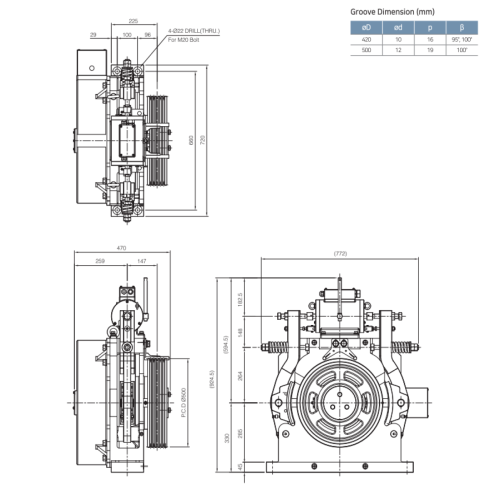

MR-D750
Acquired KC safety certificate, ACOP, UCMP, etc.
The first Korean gearless traction machine developer
Compact design and superior performance
Low vibration and noise, runs smoothly
-Supplied Power : 3phase , AC380V
-Number of Poles : 32(Roping 1:1, 2:1)
-Shaft Load : 4,000kg
-Wrapping : Single
-Usage : Machine Room Type
-Insulation Class : F
-Protection Degree : IP41
-Brake : Electromagnetic Dual Brake, Non-Asbestos DC 90V, 4A(2A x 2)
*Balance 50% , Compen Chain 100%

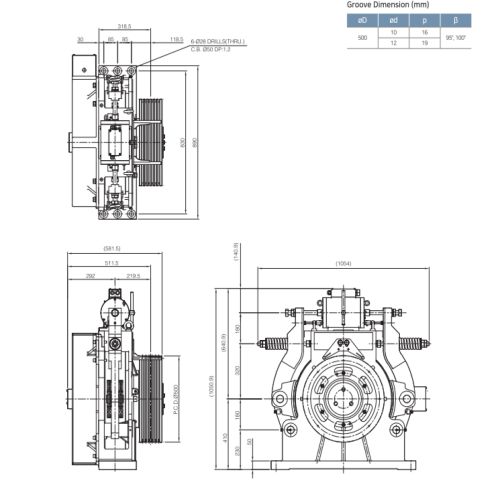

MR-D1000/1150
Acquired KC safety certificate, ACOP, UCMP, etc.
The first Korean gearless traction machine developer
Compact design and superior performance
Low vibration and noise, runs smoothly
-Supplied Power : 3phase , AC380V
-Number of Poles : 32(Roping 1:1, 2:1)
-Shaft Load : 6,000kg
-Wrapping : Single
-Usage : Machine Room Type
-Insulation Class : F
-Protection Degree : IP41
-Brake : Electromagnetic Dual Brake, Non-Asbestos DC 90V, 3.4A(1.7A x 2)
*Balance 50% , Compen Chain 100%

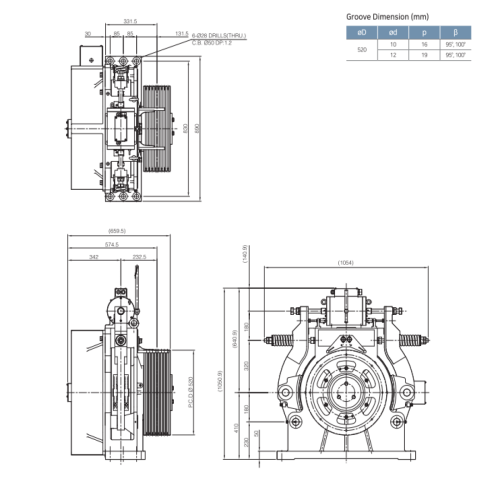

MR-D1350/1600
Acquired KC safety certificate, ACOP, UCMP, etc.
The first Korean gearless traction machine developer
Compact design and superior performance
Low vibration and noise, runs smoothly
-Supplied Power : 3phase , AC380V
-Number of Poles : 32(Roping 1:1, 2:1)
-Shaft Load : 8,000kg
-Wrapping : Single
-Usage : Machine Room Type
-Insulation Class : F
-Protection Degree : IP41
-Brake : Electromagnetic Dual Brake, Non-Asbestos DC 90V, 6.4A(3.2A x 2)
*Balance 50% , Compen Chain 100%
