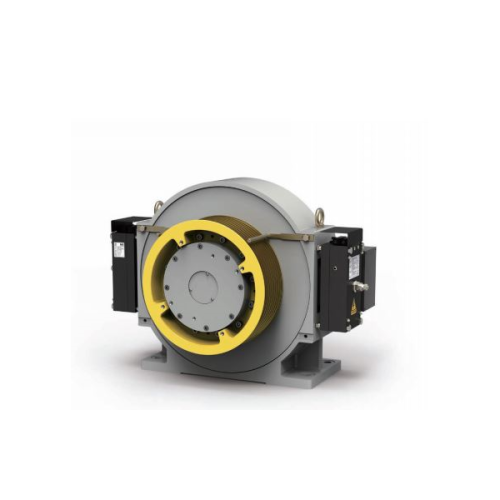

Gearless Traction Machine for Elevator
Request For Quotation
-100% reliability of our traction machine-Safety and the test of brake is competed-Precise production of spare parts
- Certification
-
- Award
-
- Shipping
-
- Lead Time30 ~ 60days
- Modes of Transport CFR,FCA,FAS,EXW,DPU,DDP,DAP,CIP,CIF,FOB
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Units
Detailed Description
WIN5000F
Acquired KC safety certificate, ACOP, UCMP, etc.
The first Korean gearless traction machine developer
Compact design and superior performance
Low vibration and noise, runs smoothly
-Supplied Power : 3phase , AC380V
-Number of Poles : 40(Roping 1:1) / 32(Roping 2:1)
-Shaft Load : 5,000kg
-Wrapping : Single
-Usage : Machine Room, Machine Roomless Type.
-Insulation Class : F
-Protection Degree : IP41
-Brake : Electromagnetic Dual Brake, Non-Asbestos DC 90V, 2.76A(1.38A x 2)
*Balance 50% , Compen Chain 100%
