MAIN CONCEPT AND TECHNICAL DESCRIPTION OF IV SERUM SOLUTION

PRODUCTION LINE WITH PP BOTTLES LOADER，LIQUID FILLING MACHINE AND EASY TO PULL CAP WELDING MACHINE, LABEL MACHINE FOR PACKING OF I.V SOLUTION.

PLAMAPMEFA-BFS-2500PDSFWSERIES ASEPTIC IV SERUM PRODUCTION LINE WITH WATER PURIFY SYSTEM, PP BOTTLES MFG. SYSTEM, FILLING SYSTEM AND PACKING SYSTEM. SERUM FILLING SYSTEM IS COMPLETE COVERED WITH LAMINATED CLEAN ROOM FOR PROTECTING OF CONTAMINATION. THIS LAMINATED ROOM(CLEAN BOOTH) IS MEET AIR CLASSIFICATION UNDER THE TERMS OF KOREA COMMUNITY K-GMP FOR PRODUCTION I. V SOLUTION. AND FOR THE PROTECTION OF A DIFFERENT THINGS OR TOTAL MACHINE, THIS MACHINE IS CONSISTED OF SAFETY GUARD AND DOORS WITH SPECIAL PC．

(POLYCARBONATE) STRONG AND TRANSPARENCY MATERIALS.

A. GENERAL DESCRIPTION

A-1. BASIC GENERAL SPECIFICATION OF THE IV SERUM PRODUCTION LINE

0. VOLUME AND PRODUCT 50 ml, １00ml AND ２50ml SERUM OR I.V SOLUTION

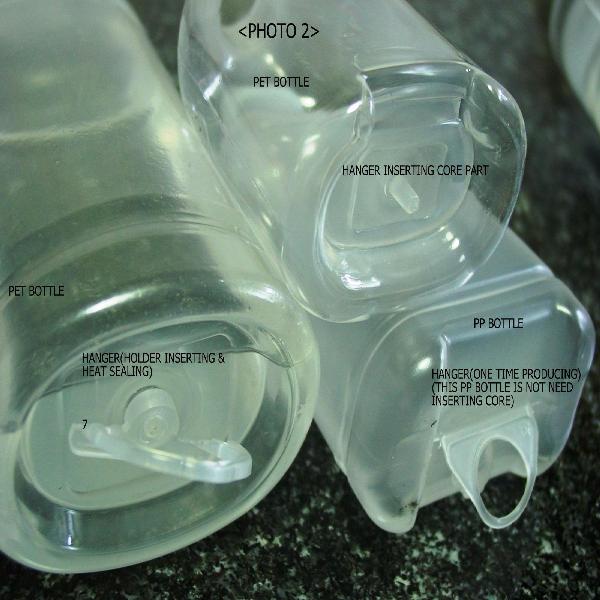

0. BOTTLE DESIGN ROUND SHAPE PP BOTTLES

0. MAX. FILLING TEMPERATURE AMBIENT TO MAX. 55C

0. OUTPUT CAPACITY 2,500 BOTTLES/HR(２50ml BASIC)

0. RAW MATERIAL PP TO BE SPECIFIED THE SAMPLE OR DRAWING

0. FACTORY DIMENSION(L * W ＊ H) ；１４ * ６ * 4 meter

01. SEMI-AUTO LOADER AND UNLOADER FOR BOTTLES

02. PMEFIC-2800 ION CLEANING UNIT(2,800 BOTTLES/HR) 1 LOT

03. PMEFBF-2800 LIQUID FILLING MACHINE(2,800 BOTTLES/HR) 1 LOT

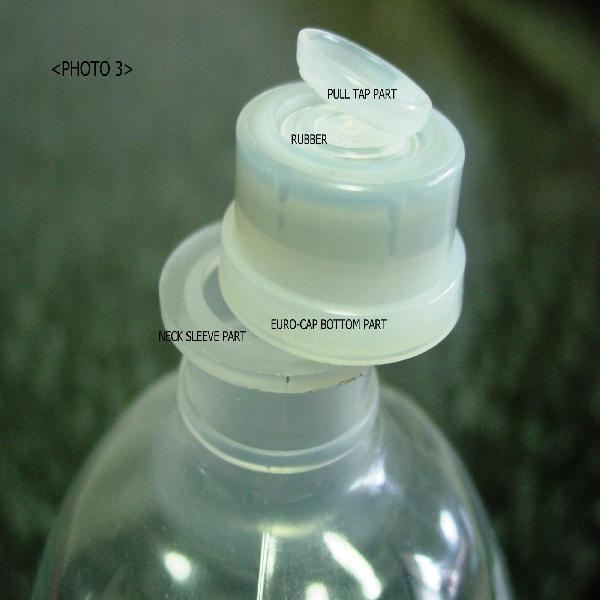

04. PMEFWF-2800 EURO-CAP HEAT WELDING MACHINE(2,800 BOTTLES/HR) 1 LOT

05. PMEFLM-3000 AUTOMATIC LABEL MACHINE 1 SET

06. IQ. OQ MANUAL BOOK FOR QUALITY CONTROL(2 SETS)
