## GENERAL DATA OF ALUMINUM COMPOSITE PANEL PRODUCTION LINE FROM 1020 TO 1600mm WIDTH ##

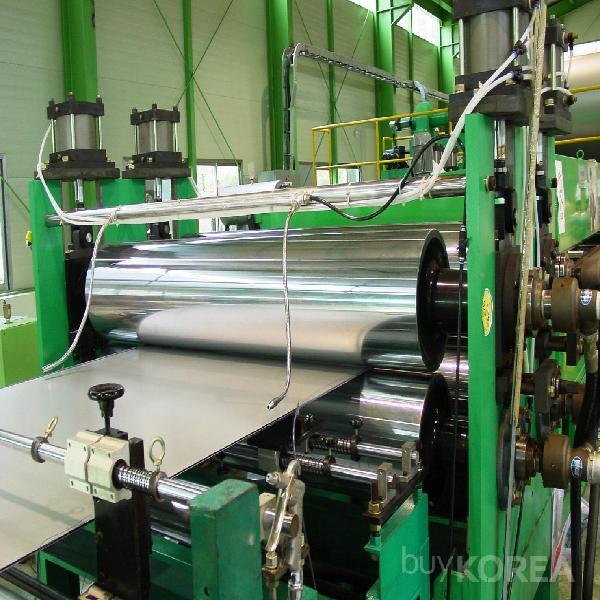

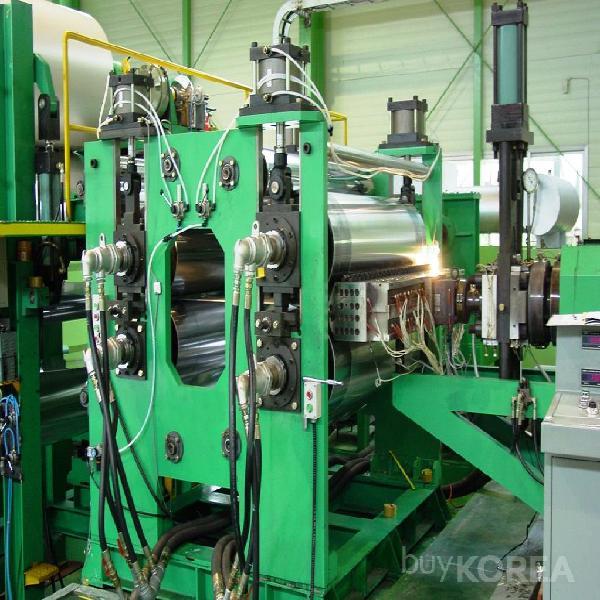

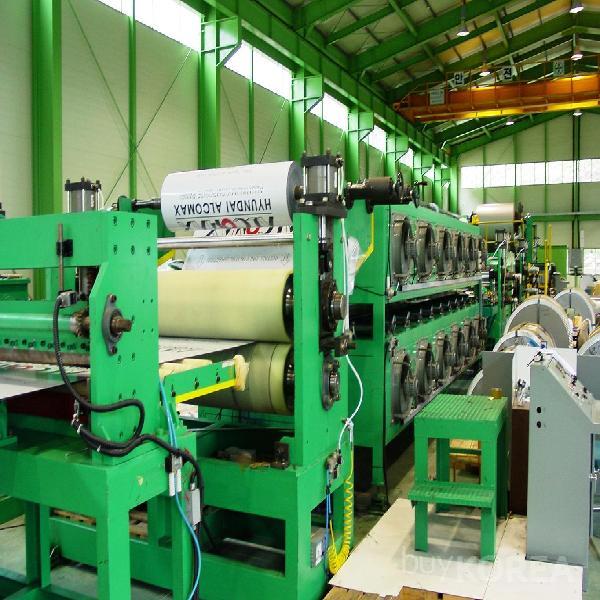

Ⅰ. GENERAL TECHNICAL DESCRIPTION

THESE EQUIPMENTS ARE DESIGNED TO PRODUCE AL+PE+AL. MULTI-LAYER COMPOSITE PANEL BY THE METHOD OF EXTRUSION. THIS MULTI-LAYER ALUMINIUM COMPOSITE PANELS ARE USING FOR DECORATING OF OUTDOOR WALL CLADDING OF THE BUILDING. AND THIS ACP MFG. LINE CAN ALSO PRODUCE F.R. COMPOSITE PANELS BY F.R COMPOUNDED RESIN SUPPLIED BY TWO H CHEM IN KOREA. THIS RESIN WAS CERTIFIED B1 GRADE BY GERMANY AND ENGLAND.

#. MAJOR SPECIFICATION

1. APPLICABLE RESIN & COIL                 LDPE/HDPE(HANHWA OR LG CHEM; KOREA)

GLUE(TWO H CHEM; KOREA ).

 AL. COIL(LOTTE ALUMINIUM)

2. EXTRUDER CAPACITY AND PLASTICIZE CAPACITY

3. PRODUCTS(WIDTH)                          1020/ 1250/ 1600 mm

(THICKNESS)                     3-4-6 mm(TOTAL LAYER)

4. SPEED OF THE HAUL OFF UNIT              AROUND 1-8m/MINUTE

5. WORKING SPEED                             2.5-4.2m/MINUTE

6. CENTER HEIGHT OF EXTRUDER              1100mm MORE OR LESS 30mm

7. OPERATION DIRECTION                      LEFT

8. PAINTING COLOR                             ACCORDING TO THE BUYER REQUESTED COLOR

9. THICKNESS OF EACH LAYERS                ALUMINIUM COIL LAYERS; 0.3-1.0 mm

GLUE(ADHESIVE) LAYER; 30-80 MICRON

PE LAYER; 2-5 mm

10. CUTTING LENGTH                            600-8000mm

11. AL COMPOSITE PANEL THICKNESS

12. ADHESIVE MATERIAL CONSUMPTION RATE PER SQUARE METER(m2); 0.01 kg/50 MICRON

(THIS RESINS AND COIL THICKNESS MAY BE CHANGING OWING TO THE BUYER AND COUNTRY SITUATION).

13. PRODUCT SPECIFICATION;

1) COMPOSITION OF AL+PE COMPOSITE PANEL GOODS;

* FRONT SIDE; COATED ALUMINIUM ROLL WITH MORE THAN 70% OF PVdF.

* CORE SHEET; NON-TOXIC LOW DENSITY PE.

* REAR SIDE; COATED ALUMINIUM WITH CHROME OR POLYESTER.

* PVDF; POLYVINYL FLUORIDE OF HYLAR 5000 IN AUSIMONT USA AND KYNAR 500 SUPPLIED BY ELFATOCHEM. THIS PVDF AND PAINT WILL 25 YEARS GUARANTEE.

* FIRE RETARDANT MATERIALS WITH COMPOUNDED; ALUMINIUM TRY HYDROXIDE(TWO H CHEM CO.KR)

2) ADVANTAGE

* LIGHT WEIGHT AND RIGID. SUPERIOR IN FLATNESS

* DESIGN FLEXIBILITY DURABLE SURFACE FINISHES

* FIRE SAFETY AND NON TOXIC GAS EFFECTIVE VIBRATION/SOUND LOW

* EASY INTERFACE WITH OTHER SYSTEMS CORROSION RESISTANCE

* LESS JOINT AND CLEAN LOOK. NO SPECIAL MAINTENANCE

3) DIMENSION

* THICKNESS; 3-6mm(STANDARD 4 mm)

* WIDTH;1000-1250-1600mm(AVAILABLE UPON CUSTOMER'S REQUEST.

* CUTTING LENGTH; NO LIMIT. 2240-3200mm(FOR CONVENIENT DELIVERY AND HANDLING)

4) COLORS ; 40 COLORS INCLUDING SOLID, STONE, METALLIC AND UPON CUSTOMER REQUEST.
