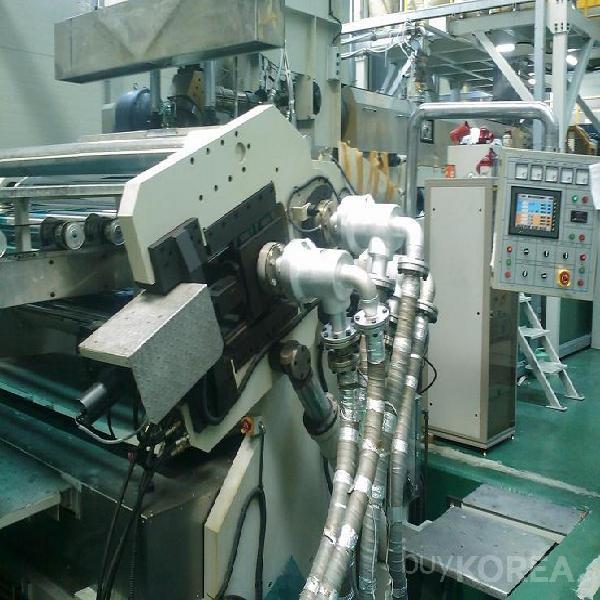

# SPECIFICATION OFPC OR ((ACRYLIC;PMMA) EXTRUSION LINE. THIS CO-EXTRUSION LINE IS CONSISTED OF MAIN SINGLE EXTRUDER & SUB-EXTRUDER & POLISHING ROLL FOR PRODUCTION MULTI-LAYER NANO-HARD COATED PC OR ACRYLIC(PMMA) SHEETS.

[MODELPLAMAPMEHY-120/50 -2100PCPMS ]

'''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''

1. MAJOR SPECIFICATION.

1) MODEL.                                       PMEHY-120/50-2100-PCPMS

2) APPLICABLE RESIN                          PC OR ACRYLIC PELLETS

3) PRODUCTION GOODS                        A/B  2 LAYERS PC SHEET WITH 2 EXTRUDER UNITS

-. SHEET WIDTH                                  2100mm

-. SHEET THICKNESS                            1-12 mm

4) EXTRUDING CAPACITY                       500 kg/HOUR(UNDER BASE VISCOSITY 1.2)

(IT CAN BE CHANGED ACCORDING TO THE MIXED RESIN SITUATION AND SHEET THICKNESS.)

5) HEIGHT OF THE MACHINE                   CENTER 1050mm

6) UTILITIES

(1) ELECTRIC POWER SOURCE                 220(380V) * 50 HZ * 3∅

(2) TOTAL POWER CAPACITY                   APPROX. 500 KW

-TOLERANCE OF VOLTAGE AND FREQUENCY  10%/+/- 1 HZ

(TOTAL POWER CAN BE CHANGED ACCORDING TO THE BUYER’S CHOICE CONCERING MACHINE MECHANISM.)

(3) COOLING WATER

-. QUALITY                                        NATURAL INDUSTRIAL WATER

-. PUMP PRESSURE                               2-3 kgf/cm2

-. COOLING WATER CONSUMPTION             9.6 m3/hr

0. EXTRUDER FEED BOX & CYLINDER;          4.0 m3/HR

0. EXTRUDER GEAR BOX FOR OIL COOLING ;  0.6m3/HR

0. ROLL TEMP. CONTROL;                        5.0m3/HR

(4) COMPRESSED AIR

-. AIR PRESSURE                                 5-7 kgf/cm2

-. AIR CONSUMPTION                            1.5m3/HR APPROX.

(5) ENVIRNMENT CONDITION OF  THE WORKING AREA

-. TEMPERATURE;                                15-40c

-. HUMIDITY      ;                               30-80%

7) EXCEPT SCOPE OF SUPPLY

(1) GROUNDING CONSTRUCTION

(2) ELECTRIC WIRING, PIPING  CONSTRUCTION

(3) SPEECIAL OIL WHICH IS NOT LISTED IN OUR SPARE PART LIST

(4) SPARE ROLL & BEARING CASE WHICH NEED FOR ROLL.

(5) SCRAP CRUSHER/ AIR COMPRESSOR

(6) DUST COLLECTOR

8) MACHINE COLOR; CCORDING TO THE REQUEST OF THE BUYER.

9) MACHINE DIMENSION(L * W * H);          APPROX. 55m * 10m * 5.5m
