NTC Thermistor is thermally sensitive resistor whose main fuction is to echibit a change in electical resistance with environmetal temperature. Especially, NTC thermistor shows the decrease of electric resistance with temperature increase.

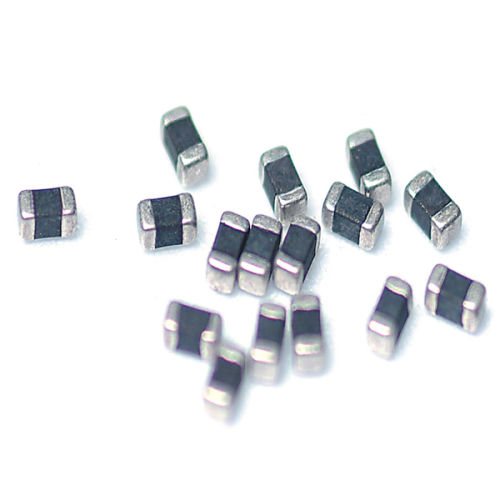

* SMD type

LNS series is a SMD(surface mounting device) type NTC thermistor, that is designed for mounting on PCB.

- Multilaye structure allows various resistance balue in the same B constant

- Unified shape and tightly controlled dimension is fit to high mounting speed

* Radial type

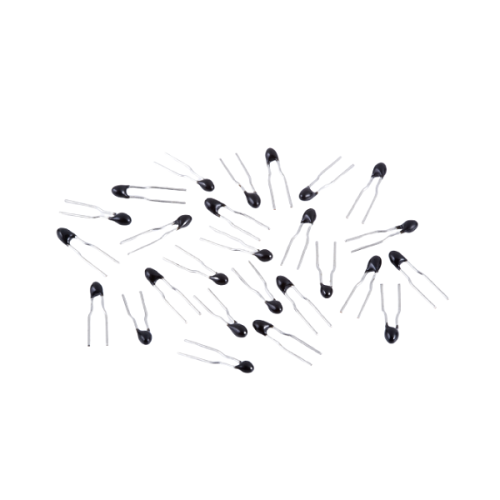

LNT series is a radial type NTC Thermistor, that is composed of epoxy-coated sensor head and two lead wires of Sn coated.

- Excellent endurance against thermal shock

- Epoxy coating for hermetic seal from environment

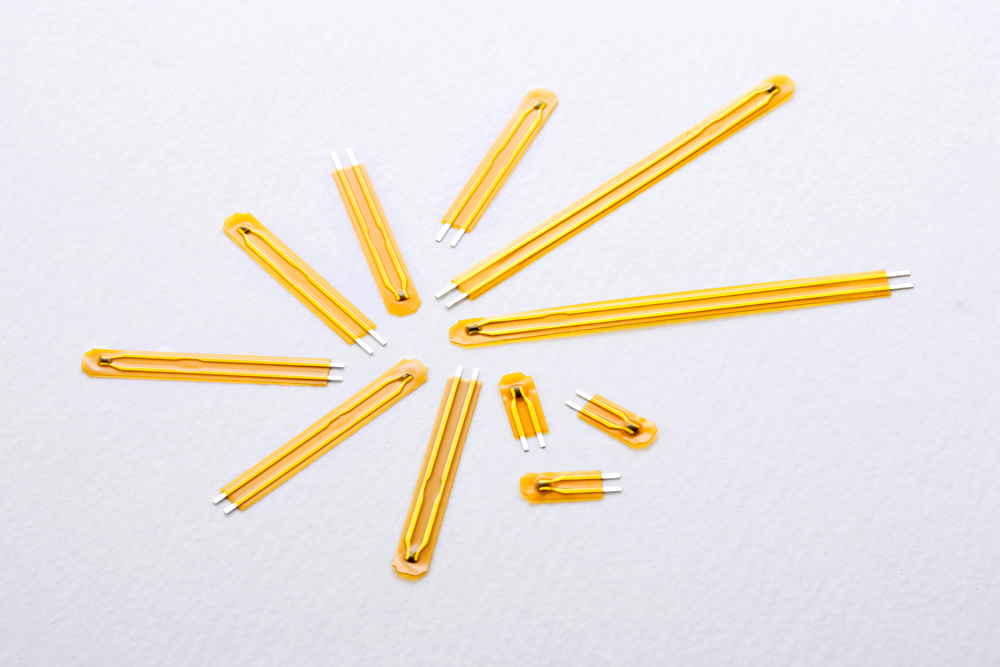

* Film type

LNJT series is a film type thermistor, composed of a NTC chip soldered in a thin lead frame, then insulated with polymer film, for low profile application. The maximu thickness is only 0.6mm(typically 0.5mm)

- Excellent performance for surface temperature measurement

- Very small thermal time constant

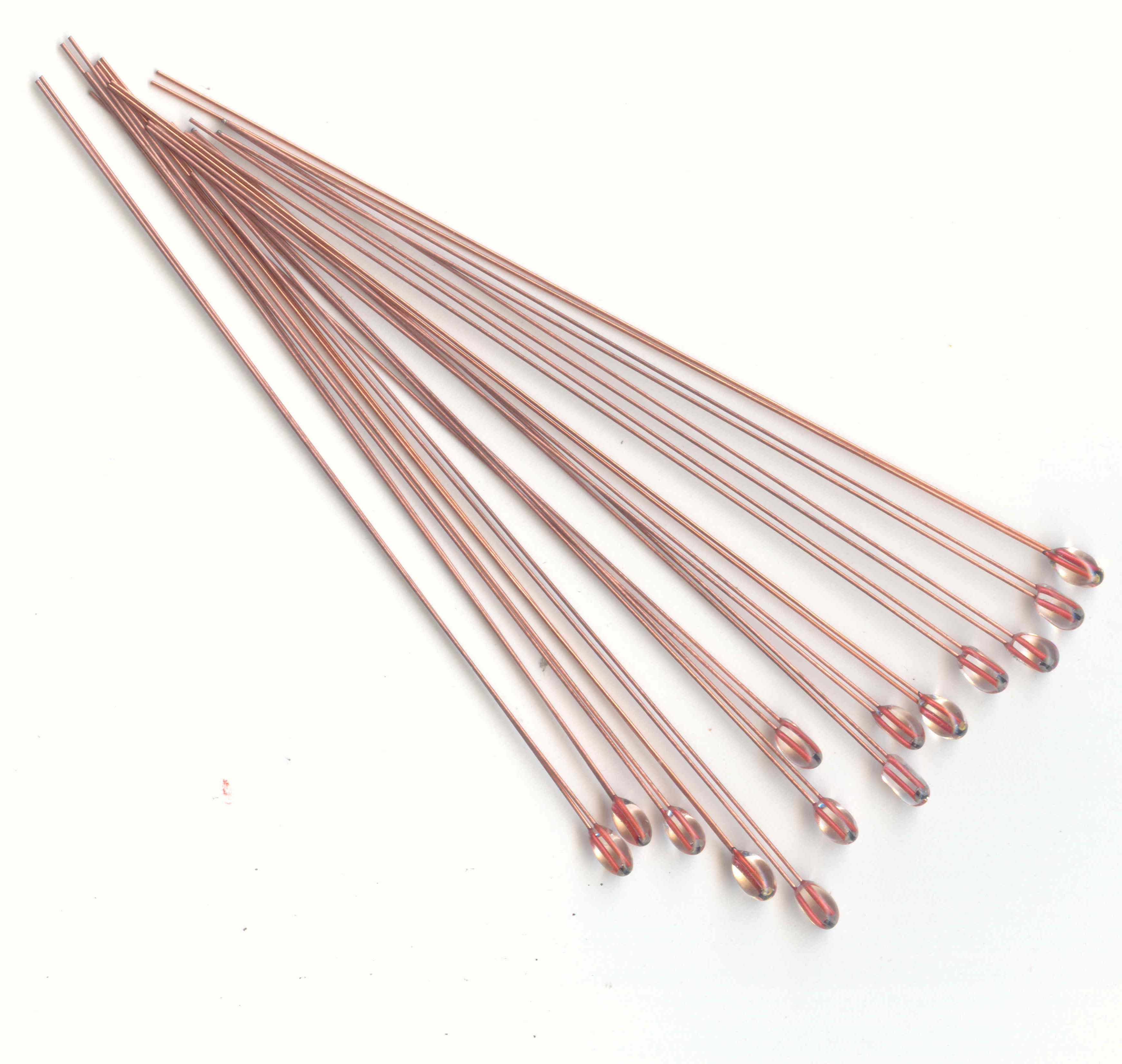

* Chip in glass type

Glass sealing type thermistor is designed for high reliability and wide temperature range of operation.

 - Excellent stability at high hidity condition(tight glass sealing)

- Operating teperature range: -50~250 ℃
