[Company Introduction]



DAIWHA CORP a company specialized in medical devices.



Since it was established in November 1979, DAIWHA CORP has been committed to importing high standard medical equipment from several countries and providing related technical service. DAIWHA is currently manufacturing INFUSION PUMPS and ELECTROSURGICAL UNITS that reach more than 60 countries worldwide.



Thanks to a continuous investment in R&D, the ESU (MEDITOM) and infusion pump (MEDIFUSION) were the first devices of this type developed and in 2003 when the MEDIFUSION MP-1000 was launched. Several awards were given to DAIWHA, such as the "World class product" given by the Ministry of Trade, Industry and Energy, making it able to be well-known globally.



Having the background, experience, and expertise obtained through the years since its establishment, by promoting professional manpower and regular R&D investment DAIWHA CORP aims to obtain "100% customer satisfaction". In order to achieve this, efforts are always being made regarding quality management and service training. Furthermore, customer opinion is consider at the time of new product development.



Everyone in DAIWHA CORP will always give their best to be able to provide the best quality products to customers with optimal service and to position DAIWHA at the top of the medical devices field.





[Product Description]

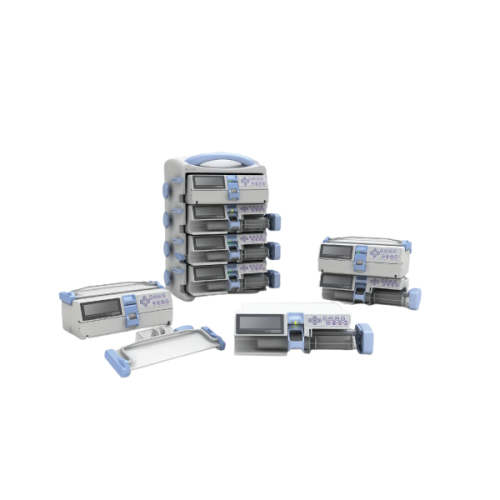

Infusion Pump



- The Volumetric infusion pump is an essential device for patient care in intensive care units, emergency rooms and newborn units, not only used when a minute amount or diverse type of solution needs to be infused to the patient, but it is also vital when a precise amount of a drug (solution) must be infused to the patient during a designated range of time.





[Product Features]

[ DI-2000 & DI-2200 ]

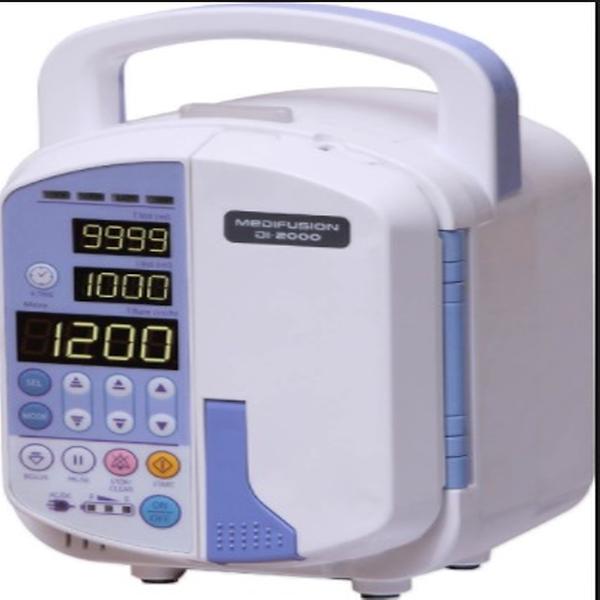

Features of DI-2000 :

1. Compact Design

2. Small Size- 1.7kg

3. Compatible with various kinds of IV set

4. Broad range of flow rate: 0.1 to 1,299 ml/h

5. One touch Bolus, Pause function

6. Dosage- Auto calculation (Input data: Boby weight, drug volume, solution volume, dose rate)

7. Titration- Enable to change the flow rate during infusion

8. Keylock for safety

9. Event history up to 2000

10. Firmware upgrade via internet (system or software upgrade)

11. Quality Assurance & Certification- ISO13485



STANDARD

1. Flowrate range- Micro: 0.1 to 99.9ml/h with 0.1 increment Normal: 100 to 1,200ml/h with one increment.

2. Accurancy: ±5% with assigned IV set

3. Total volume Range: 0 to 9,999ml or no limit

4. Bolus rate: 700ml/h or selectable

5. Power requirment: AC 100 to 240V, 50/60Hz

6. Power Consumption: 35 VA

7. Protection type: Class I, type CF, IPX1 8 Size- 120x130x206mm / 1.7kg



Features of DI-2200

1. Compact Design

2. Small size - 3.0kg

3. Compatible with various kinds of IV set

4. One touch Bolus, Pause function

5. Dosage - auto calculation (Input data : body weight, drug volume, solution volume, dose rate)

6. Titration - Enable to change the flow rate during infusion

7. Keylock for safety

8. Event history up to 2000

9. Firmware upgrade via internet (system or software upgrade)

10. Quality Assurance & Certification - ISO13485, CE







STANDARD

1. Flow Rate: 0.1~1200ml/h

2, Accurancy: 5% with assigned IV set

3. Total Volume : 0 to 9,999ml or no limit

4. Bolus/Purge : 700ml/h (default) / 1 ~ 1200ml/h

5. Battery : Charging - 10hr, operrating - 4hr @ 100ml/h

6. Other Function Titration, Date and Time, History Monitoring (up 1000) Firmware Upgrade Program













                                                                                [ DI-4000]









Features of DI-4000 :

1. Durability of docking station

2. Stand-alone system

3. Drug library

4. IV set library max 300

5. Anti-bolus

6. Language configuration

7. Secondary mode

8. Easy to use interface for user

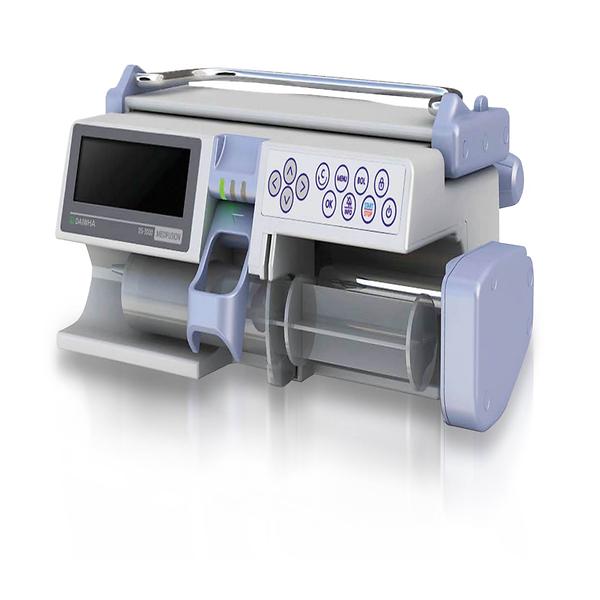

SYRINGE PUMP



The Syringe Pump is a device used to infused drugs and solutions for hypertension, chemotherapy, oxytocics, parenteral nutrition and anesthetics. It is used when a precise amount of solution needs to be infused to the patient on a determinate period of time, mainly used in pediatrics, operation rooms, anesthesiology, cancer treatment, and intensive care units, but also in general wards due to its diverse functionality.

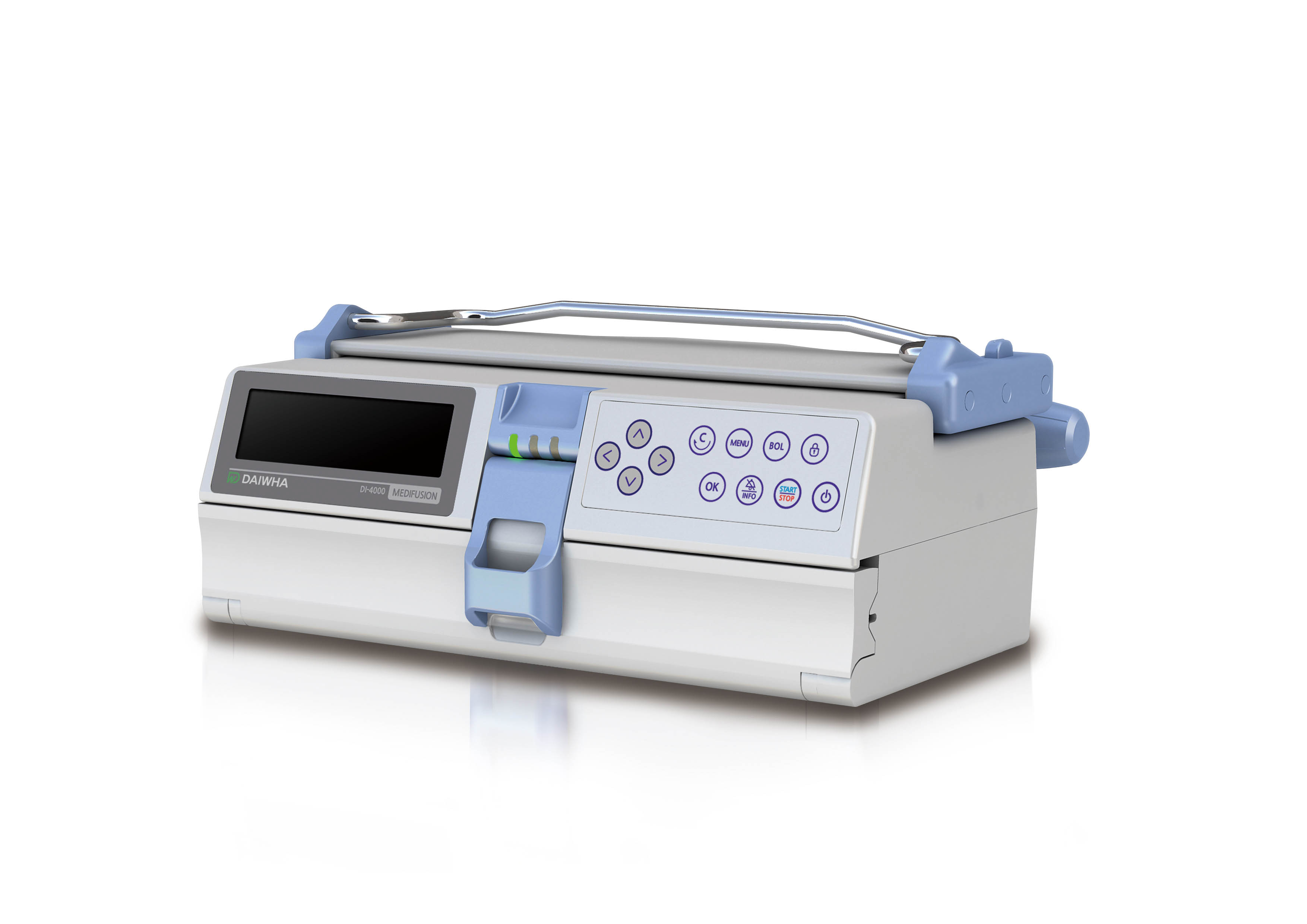

                                                                             [ DS-3000]





DS-3000



STANDARD

1. Flow rate : 0.1~1500 ml/h

2. Infused Volume : 0.1~9999 ml

3. Bolus rate : 1~1500 ml/h

4. K.V.O : 0.1~9 ml/h

5. Occulsion Level : 9 Level (60-850 mmHg)

6. Battery : Operating 6 hours, Recharging 5 hours

7. Weight : 1.8 kg

















Electro Surgical Unit



The Electrosurgical Unit is an essential equipment for surgery, treating the patient through high frequency waves when needed at orthopedic, cosmetic and neurosurgical procedures, as well as internal medicine, urology, otolaryngology, obstetrics, and ophthalmology, among others.

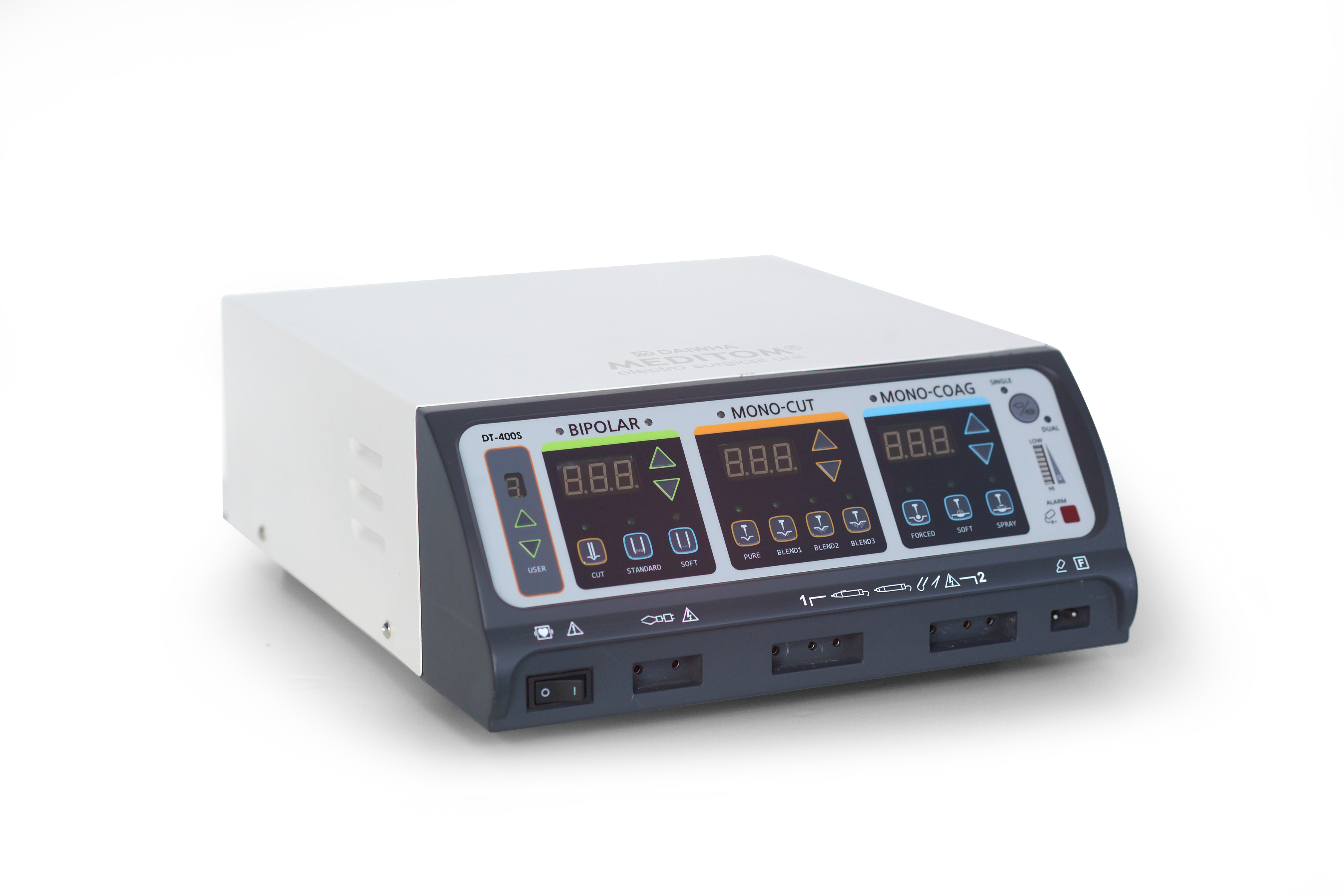

                                                                            [ DT-400/300S]

MEDITOM DT-400/300S



FEATURES

1. New digital display

2. DRM (Daiwha Return Electrode Monitoring System)

3. Automatic shutdown circuit when over current



STANDARD

1. Cut : Pure 300~400 W Blend 1~3 - 100~230 W

2. Coag : Contact 80~100 W Spray 80 W

3. Bipolar : Cut 80~99 W Standard 80~80 W

4. Main Frequency (Khz) : 400 , 433 , 490

5. Power : Less than 950VA 6. Weight : 21Kg



DT-200/150S



FEATURES

1. Compact design & Easy to use

2. ANPM (Automatic Neutral Patient Monitoring)

- Safety function minimizing burning that may occur on the pad contact area by monitoring pad contact status especially when using 'Dual Pad'

3. User Memory function up to 10



STANDARD

1. Cut : Pure 150~300 W Blend 120~200 W

2. Coag : Contact 70~50 W Spray 70~80 W (150 Basic 제외)

3. Bipolar : Cut 70~90 W Coag 60~80 W

4. Main Frequency (Khz) : 400 , 433 , 482

5. Power : Less than 950VA

6. Weight : 300 Basic : 17kg 200/150 Basic : 13kg



Please check our catalog

MEDIFUSION D1-2000/2200 CATALOG

MEDIFUSION D1-4000/DS-3000 CATALOG

MEDITOM ST-400S/300S CATALOG
