Vibrating Roller
Request For Quotation
Vibrating roller made in South Korea and we do not use any parts from China
- Certification
-
- Award
-
- Shipping
-
- Lead Time25 ~ 30days
- Type of Freight AT,MT
- Modes of Transport CFR,CIF,CPT,EXW,FCA,FOB
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Pieces
Detailed Description

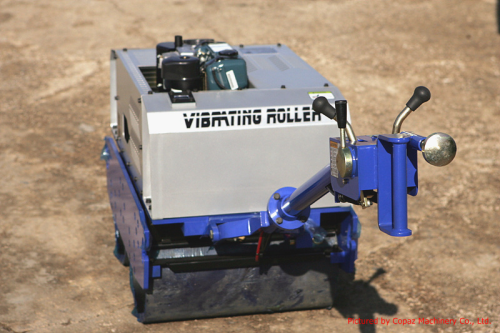

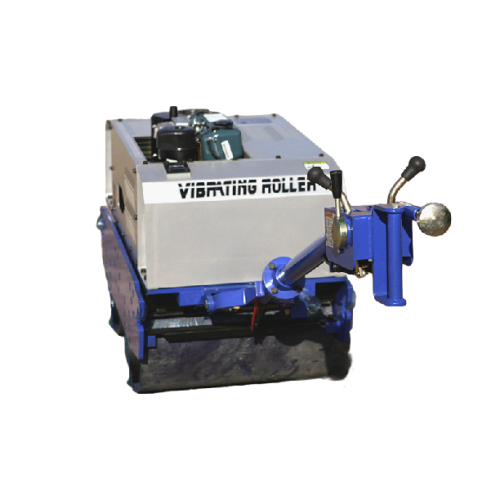

The CVR-series is a compact double drum soil compactor with small machines features and reliable performance.
-This machine has been designed to be highly versatile with minimum maintenance, fitting a wider range of utility-sized applications confronting contractors toady.
-The CVR-eries is very strong compacting and good durability.
Its excellent maneuverability makes it the right choice for confined areas.
Vibrating road roller is mainly made up of power equipment, transmission equipment, frame,
vibrating drum, hydraulic vibrating system, automatic breaking system, easy operating system and electric equipment.
Its features are as follows:
1. Type of vibrating Roller is “ Pedestrian Double Drum Vibrating Roller”

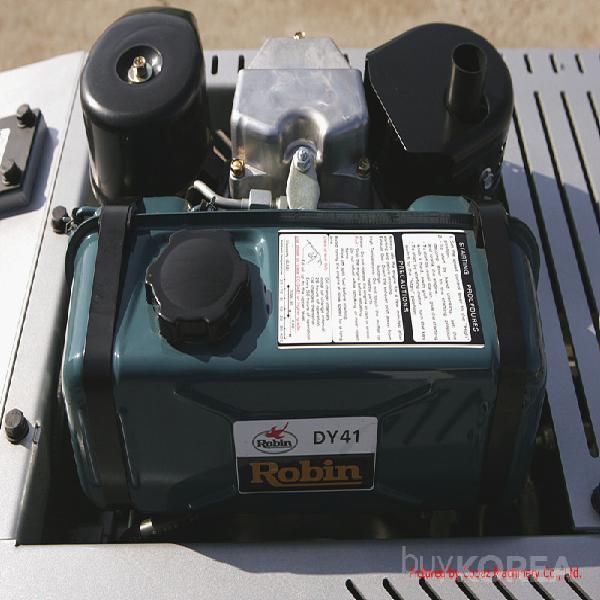

2. The engine is installed on the upper frame. Between the engine and the upper frame is installed a shock absorber to block vibration from pendulum of vibrating roller. This makes it well adjustable to work requirements, economical and reliable.
3. High-pressure Axial piston pump and motor in the hydraulic vibrating system allows it strong resistance to pollution. Pressure testing port is installed to control and adjust pressure of system.
4. The electric system is equipped with lighting equipment to facilitate operation in foggy days and at night (Optional).
DETAILS
Starting type of engine: Key(Electric) Starter & Manual Starter
Air-filter type of engine: Dust air oil filter
Hydraulic device: Italian hydraulic axial piston pump & motor equipped
Drive mechanism: Chain driven type
Engine protection: Engine clutch equipped
Bearing: Important position: Japanese bearing, Other position: Korean bearing

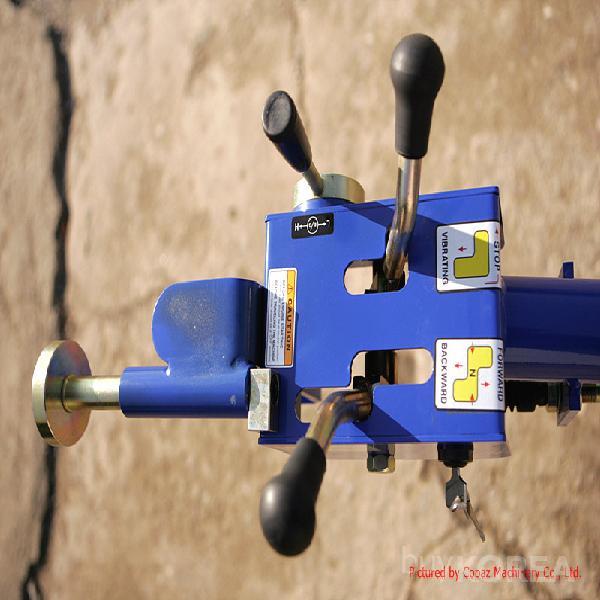

Dead man handle/push stop (operator safety switch)
Powerful working condition
Low maintenance
