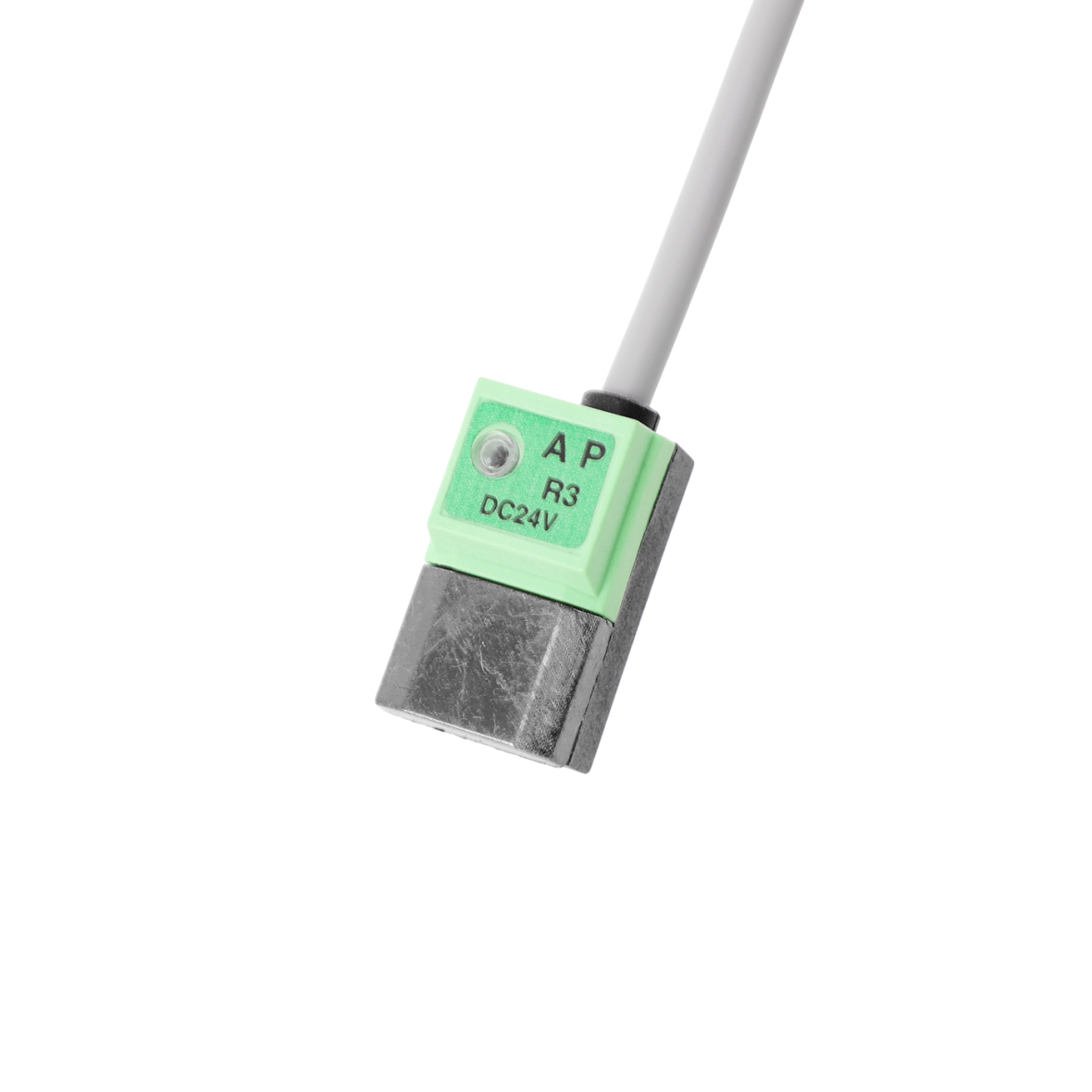

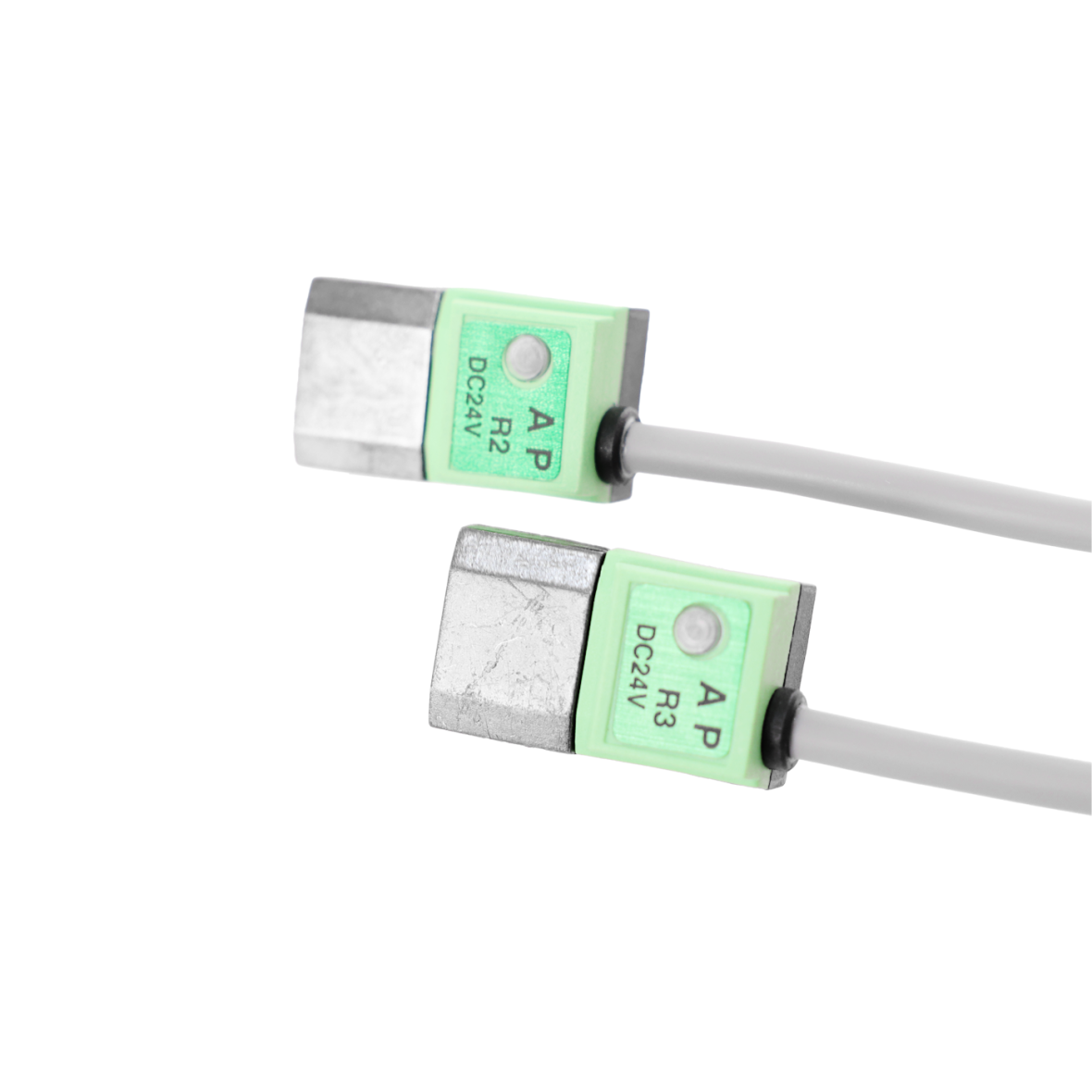

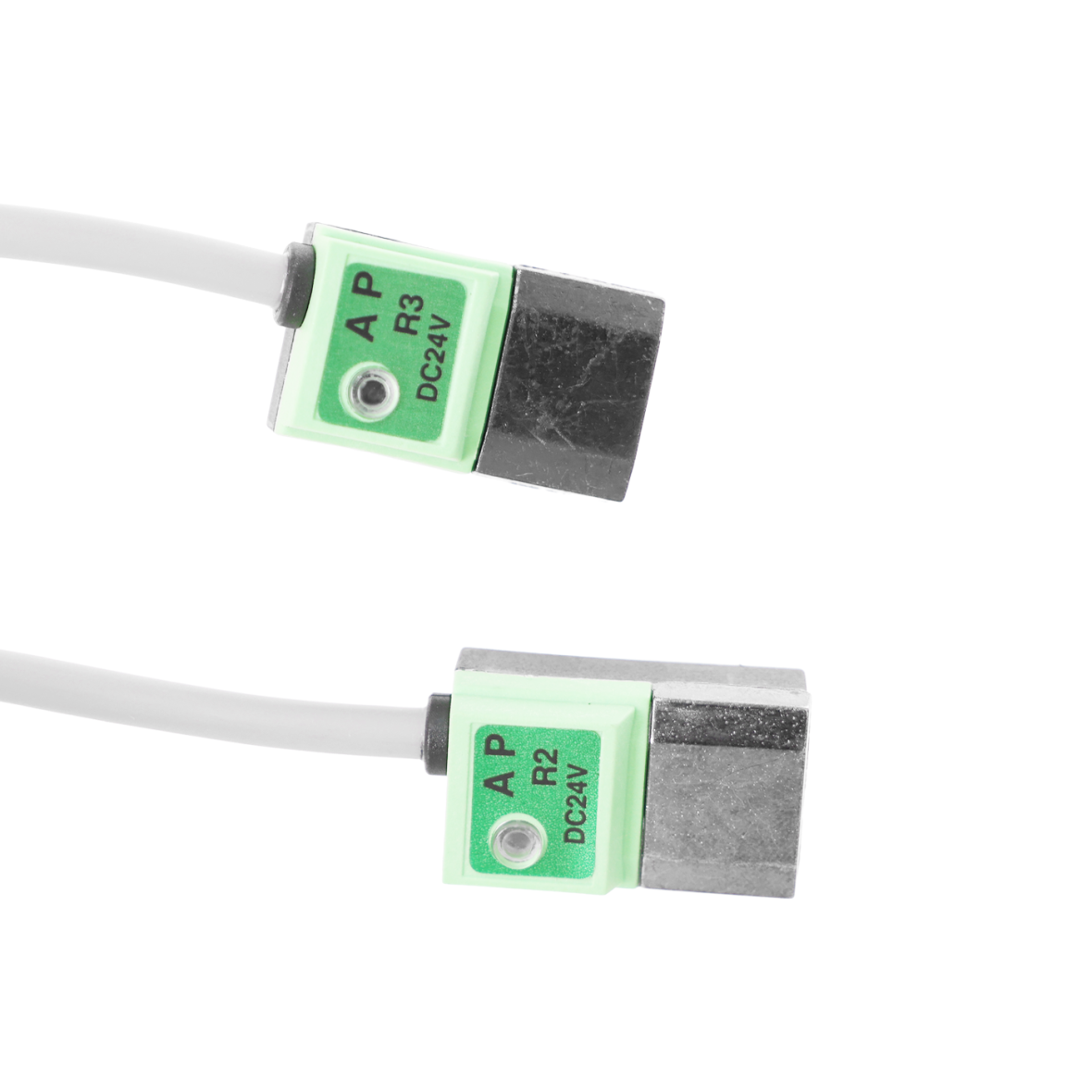

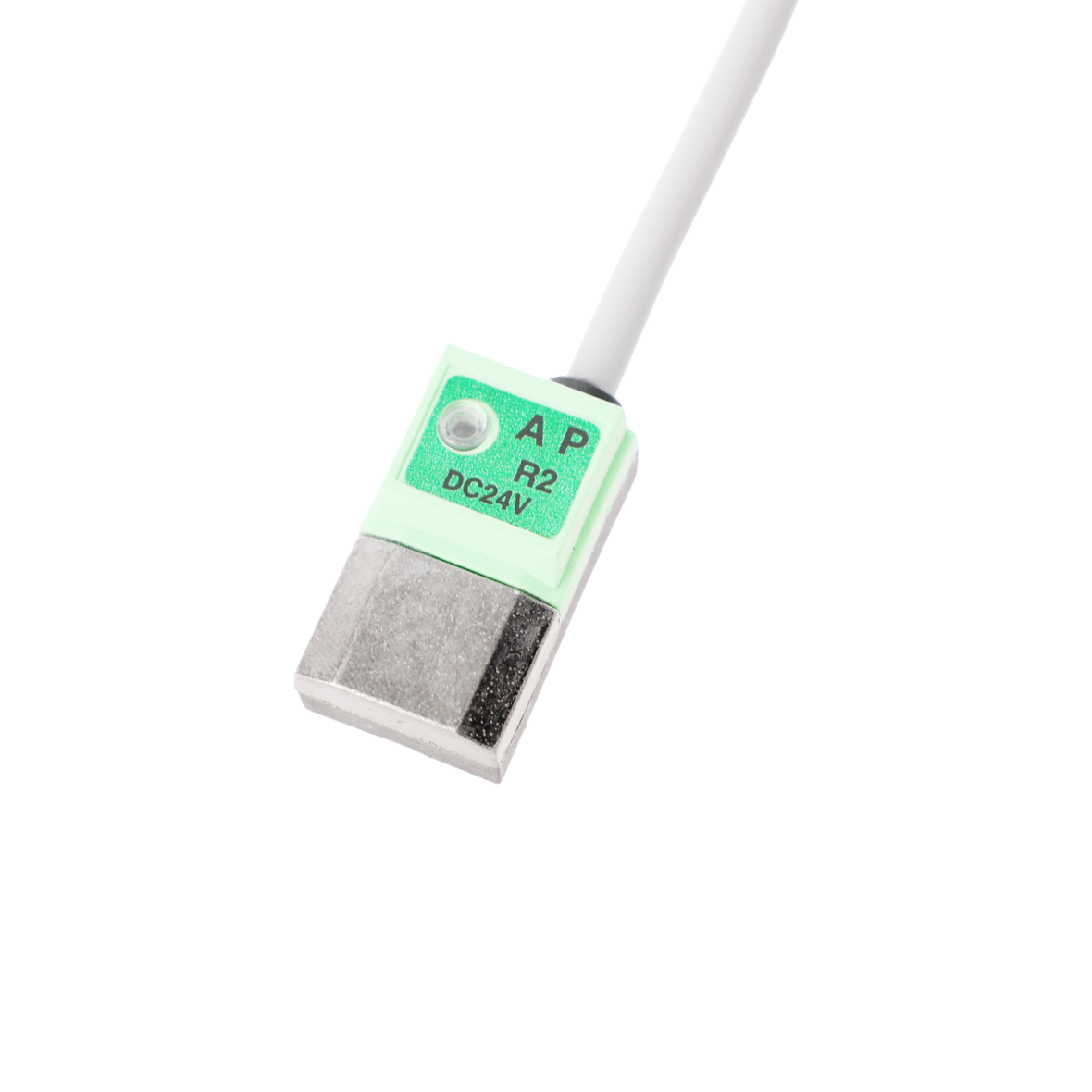

[AP] R2(CKD Type), R3(CKD Type)_(Reed SW Type)

Request For Quotation

1. Built for CKD Cylinders Specially designed to fit CKD-type pneumatic cylinders with easy, secure mounting. 2. Durable & Waterproof (IP67 Rated) Fully protected against dust and water, ensuring reliable performance in harsh environments. 3. Fast and Accurate Switching Ultra-quick response time under 1ms for precise cylinder position detection. 4. Surge-Resistant Internal Circuit Built-in zener diode, choke coil, and surge absorber protect against voltage spikes. 5. Wide Voltage Compatibility Supports DC24V, AC110V, and AC220V systems—suitable for global automation equipment.

Certification

Award

Shipping

Lead Time3 ~ 7days
Type of Freight Proceed after consultation
Modes of Transport Proceed after consultation
Products Shipped From Busan

Payment: 140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More

Quantity: MOQ : 30 Units

Product Summary

• Product name : [AP] RO(CKD TYPE)_(REED SW TYPE) • Brand name : SAEWON ELECTRONICS.CO.,LTD • Material: Machinery and Equipment > Sensors • Ingredients/Materials: Plastic, Vinyl Cable • Color : Black • Capacity: 11 g • Certification : ISO 14001, ISO 9001, CE , IP67 , UKCA ,RoHS Certificate of Certified Exporter by Item for Country of Origin Certificate of Designation as a Specialized Root Technology Company Certificate of Excellent Technology Evaluation Company Certificate of In-house Research and Development Department Certificate of Registration as a Specialized Company for Materials, Parts, and Equipment Certificate of Patent Clamping Band for Auto Switches on Pneumatic Cylinders

Detailed Description

The [AP] RO Reed Switch is a high-performance magnetic sensor designed specifically for CKD-type pneumatic cylinders.
With an IP67 waterproof and dustproof rating, it operates reliably even in dusty or humid industrial environments.
It features a fast response time of less than 1ms, enabling precise cylinder position detection.
The built-in zener diode, choke coil, and surge absorber provide strong protection against electrical damage.
It supports DC24V, AC110V, and AC220V, making it compatible with a wide range of automation systems.
Compared to genuine CKD sensors, it offers a more affordable price and a compact design for easy installation.

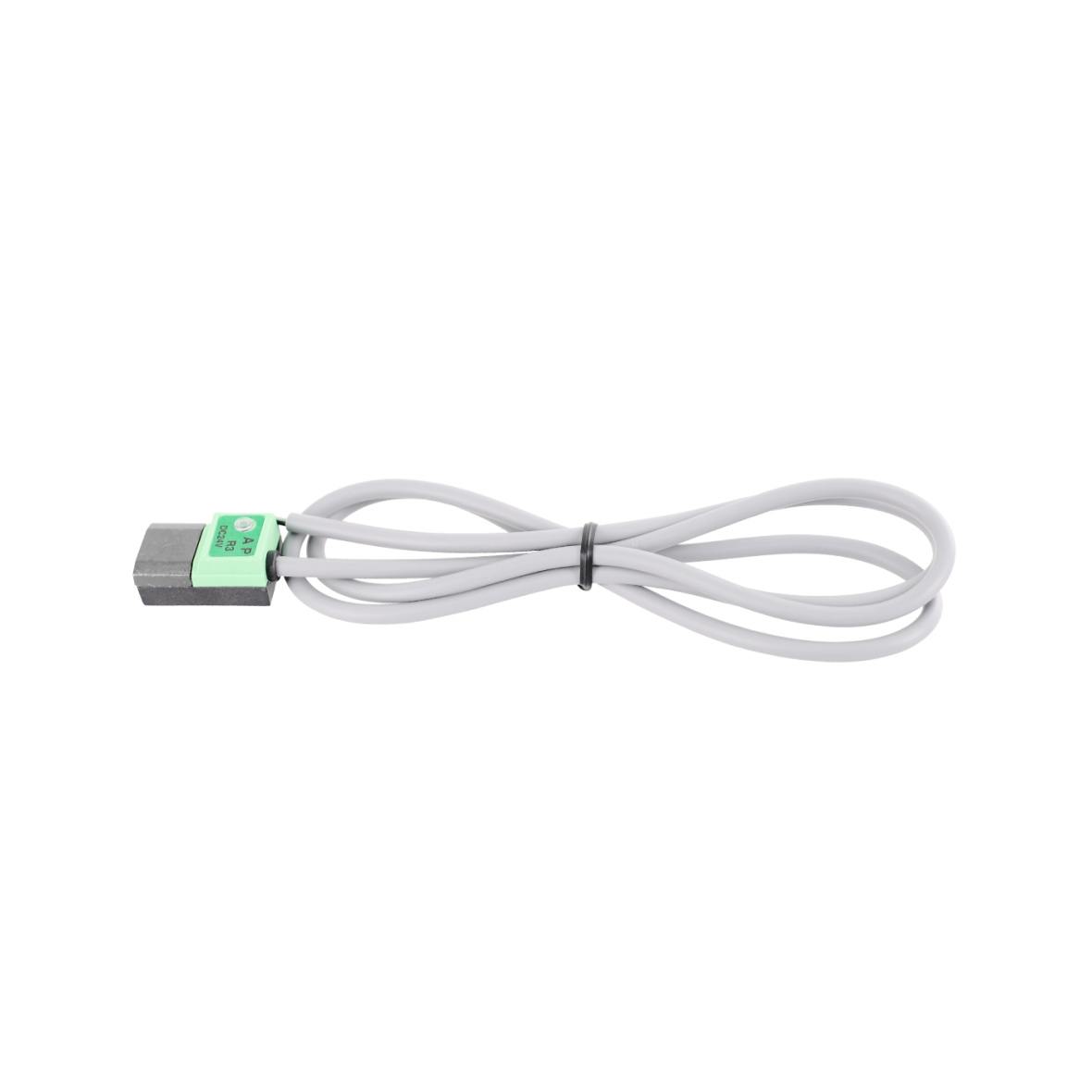

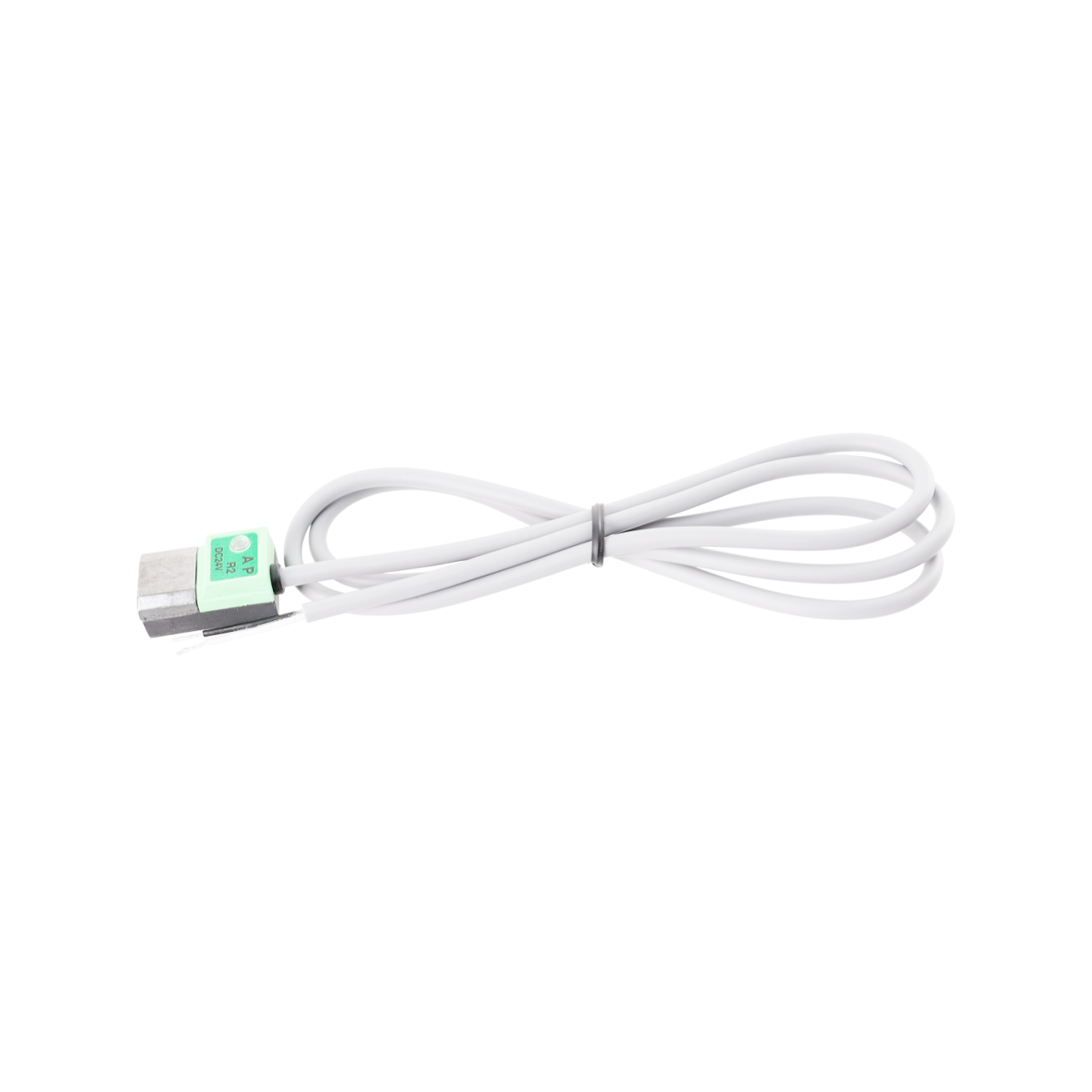

Lead Wire: Oil resistant vinyl jacket(VW-1, Fire retardant)
Jacket: 4.5Ø mm(Grey, Black)
Conductor: 0.08 × 60(coil)
Enclosure Rating: IP67
Shock/Vibration: 30G
Insulation: Up to 50 at DC500 Mega (Between case & Lead wire)
Response Time: 1msec
Temperature Range: -10~60℃
Endurance Voltage: For 1 Min under AC1500V (Between case & Lead wire)
