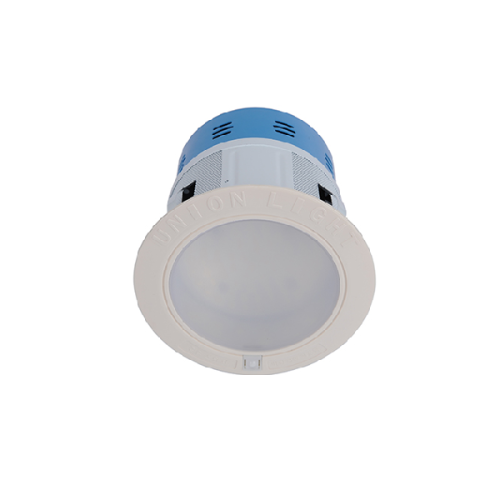

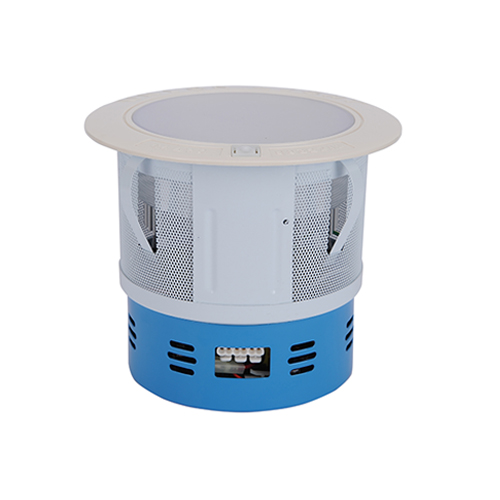

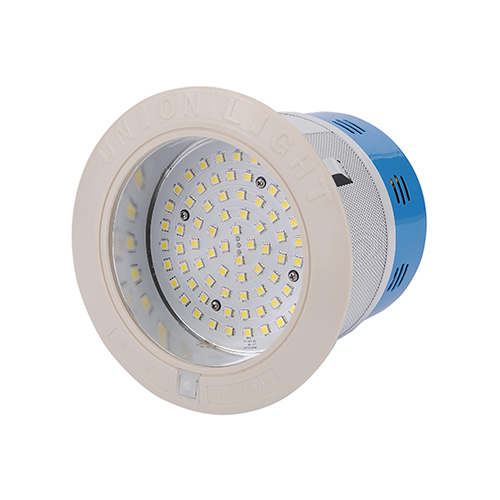

All-in-one LED Down Light
(General + Emergency Lighting)

Emergency lighting built on top (Patent No. 0289508)

• LED lamp has a high color rendering index, allowing people to quickly find the evacuation route in case of a fire due to disaster.

• Compared to existing lightings, it boasts great energy efficiency and has 40 times longer product life – leading to electricity cost reduction by 30%.

• It emits less UV rays and infrared rays. This eco-friendly emergency lighting is free of toxic substances and prevents insects from going inside.

• With the patented thermal radiation technology, the generation of heat was minimized. It does not require warm-up, and the instant-on lighting protects vision.

• Installation cost saving: All-in-one LED Down Light can be easily installed on a low ceiling and also in a small space. It is economical with the low installation cost.

Duration of use : 60 minutes
Rated voltage : AC220V/60Hz
Rated input current : 0.092A
Rated input power :18W
Source of life : LED-15W (LED 0.2x 72EA)
Standby power : Nickel-cadmium 24V/600mA
Light flux standard voltage and light flux ratio : 20V(90%)
Weight/Size : 1.5kg / 187(W)mm x 135(H) Hole size: 156±2(mm)
Type confirmation No. :  Emergency19-4

Features

• Normally, it is used as a general lighting, and in the event of a power failure or emergency, it immediately converts into an emergency lighting and stays on for up to 2 hours.

• It is easy to install as the top part consists of an all-in-one emergency lighting circuit.

• It reduces anxiety during a blackout caused by a fire as its luminous intensityis 90% of that of general lighting.

• The charging circuit prevents overcharge and overdischarge to maintain the best condition for the battery.

It was manufactured following the technological standards of the Korea Fire Institute. Normally, it is used as a general lighting, and in the event of a power failure or emergency, it immediately converts into an emergency lighting and stays on for up to 2 hours.
